| Slide Stroke (mm) | 400 |
|---|---|
| Return Force (kN) | 2000 KN |
| Machine Type | Hydraulic Press Machine |
| System | Servo |
| Voltage | 380V/220V Optional |

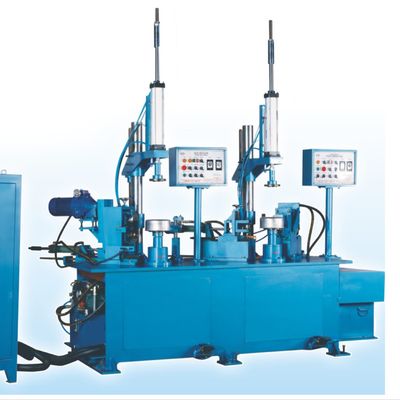

| Function | Edge Cutting Beading & Pressing For Metal Ware |
|---|---|
| Size Of Workpiece | ≤φ325mm×300mm (Dia.×H) |
| Thickness | 0.5~1.2mm |
| Motor (for The) Power | Workpiece Motor: 4kw×1 |
| Speed | 150~1200r/min (Adjustable) |
| Slide Stroke (mm) | 400 |
|---|---|
| Return Force (kN) | 2000 KN |
| Machine Type | Hydraulic Press Machine |
| System | Servo |
| Voltage | 380V/220V Optional |
| Material Size | ≤φ600mm/≤φ1200mm |
|---|---|
| Motor Power | Total Power: 2.2/3.35kw |
| Machine Size (Not Including The Conveyor Belt) | 3500mm×1000/1600mm×1300mm (L×W×H) |
| Machine Weight | About 1.2/1.7T |
| Packaging Details | Seaworthy packing |

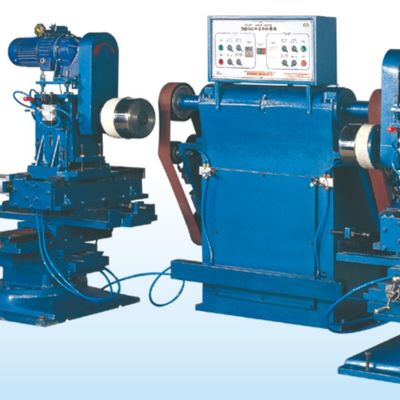

| Function | Inner Or Outer Sanding For Metal Ware |
|---|---|
| Size Of Workpiece | φ(160~320)mm×(50~300)mm (Dia.×H) |
| Size Of Abrasivebelt | ≤50m×30mm (L×W) |
| Motor (for The) Power | Abrasive Wheel Motor: 4kw×1 |
| Speed | Workpiece Speed: 70-1450r/min (Adjustable) |
| Function | Outer Polish For Oven Lid |
|---|---|
| Size Of Workpiece | ≤φ400mm×600mm (Dia.×H) |
| Size Of Abrasive Wheel | ≤φ460mm (Dia.)×650mm (Dia.×Thickness) |
| Motor (for The) Power | Abrasive Wheel Motor: 18.5kw×1 |
| Speed | Abrasive Speed: 2000r/min |

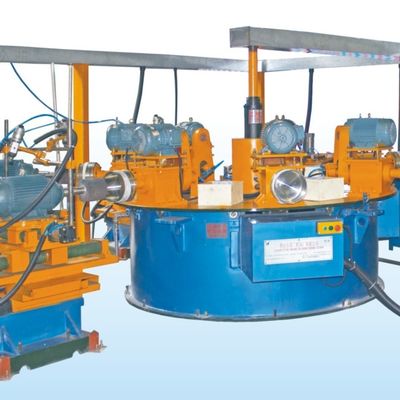

| Function | Outer Polish For Metal Cover |
|---|---|
| Size Of Workpiece | ≤φ400mm×50mm (Dia.×H) |
| Size Of Abrasive Wheel | ≤φ430mm ×330mm (Dia.×Thickness) |
| Workpiece Holding | Vacuum Adsorption |
| Motor (for The) Power | Workpiece Motor: 0.75kw×2 |

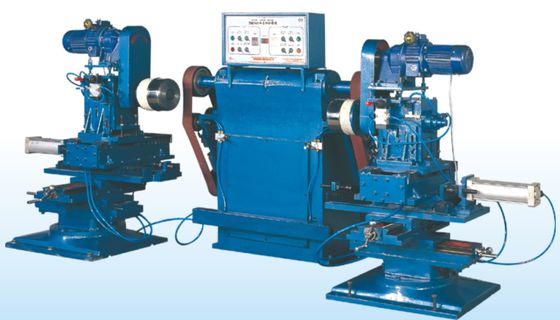

| Function | Outer Polish For Metal Cover |
|---|---|
| Stations | ≤ 12 |
| Size Of Workpiece | ≤φ300mm×100mm (Dia.×H) |
| Size Of Abrasive Wheel | ≤φ400mm (Dia.) |
| Motor (for The) Power | Compensate Pressure Motor: 0.37kw |

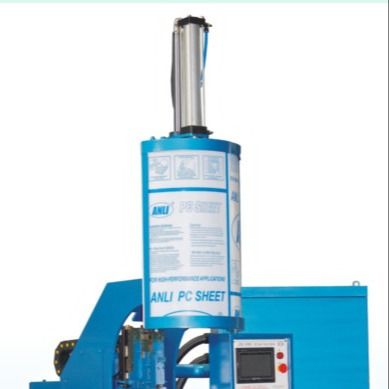

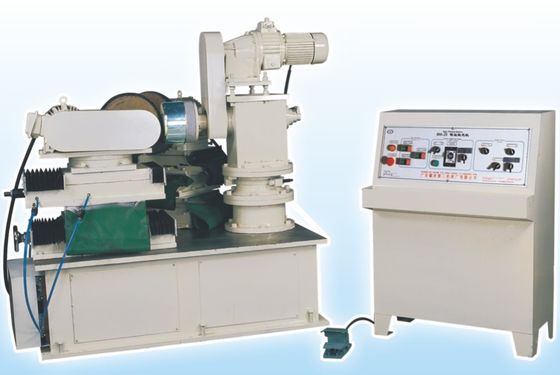

| Function | Inner Or Outer Sanding For Metal Ware |
|---|---|
| Size Of Workpiece | φ(100~350)mm (Dia.) |
| Motor (for The) Power | Workpiece Motor: 4kw×2 |
| Workpiece Speed | 1370r/min (Adjustable) |
| Workpiece Holding | Vacuum Adsorption |
| Function | Inner Or Outer Sanding For Metal Ware |
|---|---|
| Size Of Workpiece | φ(100~350)mm (Dia.) |
| Motor (for The) Power | Workpiece Motor: 4kw×1 |
| Workpiece Speed | 800r/min (Adjustable) |
| Workpiece Holding | Vacuum Adsorption |
