One Stations Auto Outer Polishing Machine

1 set
One Stations Auto Outer Polishing Machine
Features Gallery Product Description Request A Quote
Slide Stroke (mm): 400
Return Force (kN): 2000 KN
Machine Type: Hydraulic Press Machine
System: Servo
Voltage: 380V/220V Optional
Dimension(L*W*H): 2200*2400*4200mm
Weight (T): 3.5 T
Motor Power (kw): 30 Kw
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU,ISO
Model Number: MB4140-ZD
Payment & Shipping Terms
Packaging Details: metal frame with film
Delivery Time: 1 month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Product Description

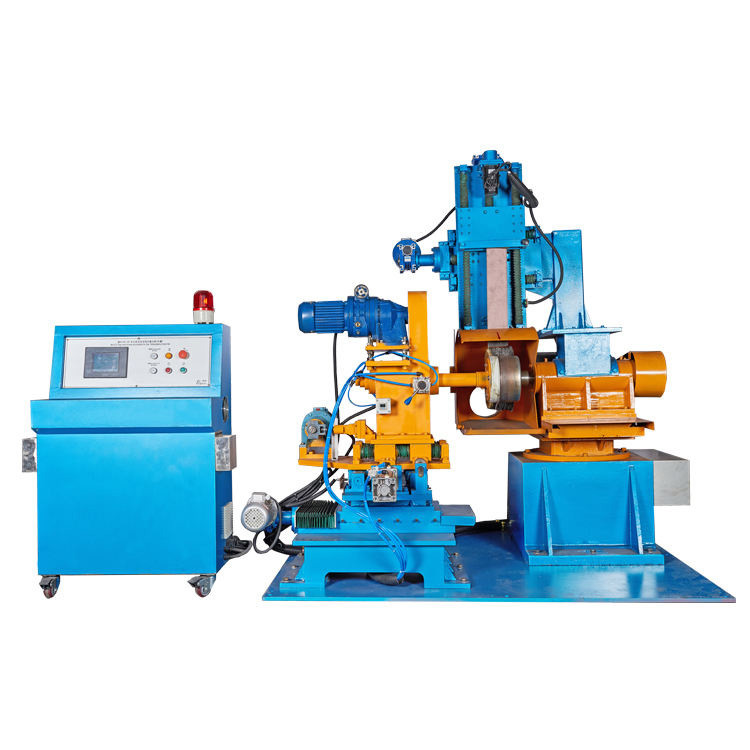

One Stations Auto Outer Polishing Machine


Product Description:


Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.


Quick Details:


YM-MB4140-ZD disk automatic external Polishing Machine is a new generation of intelligent polishing machine developed on the basis of 4140 series polishing machine, which is suitable for rough, fine and fine polishing of the external surface of various round metal utensils.The machine structure is strict and reasonable, the control circuit is controlled by PLC, equipped with frequency conversion motor and constant force device, the pressure between the pot body and the grinding wheel is automatically compensated by adjusting the current, the operation is convenient, the performance is reliable, the quality is stable, can automatically complete the rough, fine and fine polishing three procedures.This machine saves energy and environmental protection, greatly reduces the consumption of enterprise human resources, improves production efficiency and processing quality, it is the ideal polishing equipment for metal ware industry.

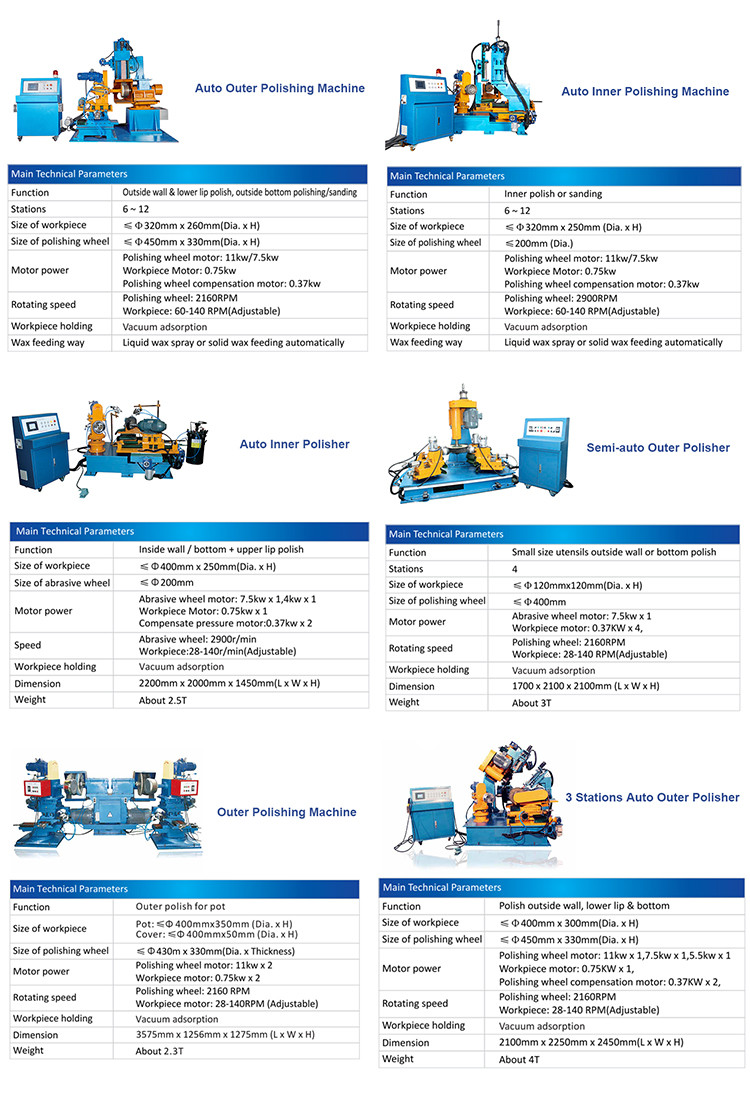

Main Technical Parameters
Function Outside wall&lower lip polish,outside bottom polishing/sanding
Stations 6-12
Size of workpiece ≤ Φ 320mm x 260mm(Dia. x H)
Size of polishing wheel ≤ Φ 450mm x 330mm(Dia. x H)
Motor power Abrasive wheel motor: 11kw/7.5kw
Workpiece Motor: 0.75kw
Compensate pressure motor:0.37kw
Speed Abrasive wheel: 2160r/min
Workpiece holding Vacuum adsorption




One Stations Auto Outer Polishing Machine 0One Stations Auto Outer Polishing Machine 1One Stations Auto Outer Polishing Machine 2
