24-Hour Technical Support For Fault Diagnosis And Repair Of Cookware Polishing Machine

1 set
MOQ
Negotiable
Price
24-Hour Technical Support For Fault Diagnosis And Repair Of Cookware Polishing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Function: Inter Sanding For Metal Ware
Stations: ≤12
Size Of Workpiece: 54320mm×260mm(Dia.×H)
Size Of Abrasive: Size Of Abrasive Belt=50m×33mm(LxW)
Voltage: 380V/220V Optional
Motor(for The) Power: Anding Motor:1.5kw
Colour: Blue
Environment protection: Yes
Material: Steels
Highlight:

Fault Diagnosis Cookware Polishing Machine

,

Cookware Polishing Machine Repair

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU,ISO
Model Number: 2GMB4140
Payment & Shipping Terms
Packaging Details: metal frame with film
Delivery Time: 1 month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Product Description

24-Hour Technical Support for Fault Diagnosis and Repair of Cookware Polishing Machine

砂光系列>>>Sanding SeriesNMB4220-ZD

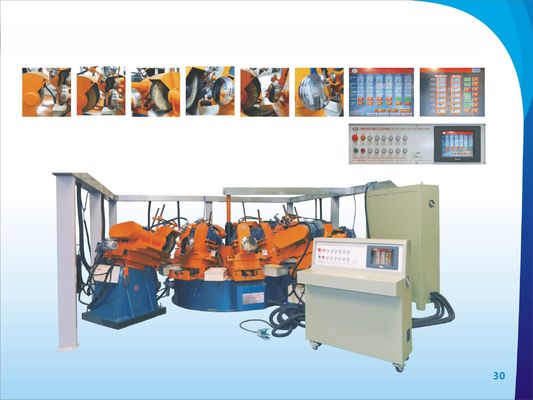

NMB4220-ZD Disk Type Multi-Station Auto Interior Sanding machine is developed from 4220 series polisher,
suitable for rough, mirror effect sanding, adapted PLC control module, inverter motor and auto compensation
device for easy operation and stable performance. This machine is able to finish rough, fine and mirror
sanding processes in one time.It is a high efficiency and ideal machine.
主要技术参数Main Technical Parameters:金属器皿的内表面抛光inter sanding for metal ware功能Function工位Stations≤1254320mm×260mm直径×高)(Dia.×H)工件尺寸Size of Workpiece磨轮尺寸Size of Abrasive Wheel≤φ200mm(Dia.)磨具尺寸Size of Abrasive砂带尺寸Size of Abrasive belt=50m×33mm(LxW)磨轮电机Abrasive Wheel Motor:7.5kw/4kw工件电机Workpiece Motor:4kw电机功率砂光伺服电机Sanding Motor:1.5kwMotor(for the) Power补偿电机Compensate presure motor:0.37kw磨轮转速Abrasive Wheel:2900r/min转速Speed工件转速Workpiece:70~1450r/min(可调Adjustable)涂蜡方式Waxed way自动喷蜡装置Automatic spray工件夹持形式Workpiece Holding真空吸附Vacuum Adsorption
The working principle of the cookware polishing machine is mainly as follows:
The cookware polishing machine is usually composed of a motor, a polishing wheel, a control system, and the like. After starting the machine, the motor drives the polishing wheel to rotate at a high speed.
Place the cookware that needs to be polished in an appropriate position and make contact with the high-speed rotating polishing wheel. The polishing wheel is usually attached with polishing materials such as sandpaper and polishing paste.
Under the rotational friction of the polishing wheel, the rough parts on the surface of the cookware are gradually removed, making its surface smooth and flat, thereby achieving the polishing effect. At the same time, the control system can adjust parameters such as the rotational speed and pressure of the polishing wheel to adapt to the polishing needs of different cookware and different polishing stages. Through continuous friction and trimming, the cookware finally presents a bright and beautiful appearance. In the entire process, the operator needs to monitor and adjust according to the actual situation to ensure the polishing quality and work safety.
The following are some of the main functions of the kitchenware polishing machine:
Improving surface quality: Making the surface of kitchenware smoother and brighter, removing scratches, flaws, etc., and improving the appearance quality.
Enhancing cleanability: The smooth surface is not easy to be stained with stains and is easier to clean and maintain hygiene.
Increasing glossiness: Giving good gloss to kitchenware and making it more attractive.
Improving corrosion resistance: To a certain extent, enhancing the resistance ability of the surface of kitchenware to corrosion factors.
Improving the touch: Making the touch of the surface of kitchenware more delicate and comfortable.
Increasing product value: Kitchenware that has been polished often has higher value and competitiveness in the market.



24-Hour Technical Support For Fault Diagnosis And Repair Of Cookware Polishing Machine 024-Hour Technical Support For Fault Diagnosis And Repair Of Cookware Polishing Machine 1
