Product Description:
Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.
Quick Details:

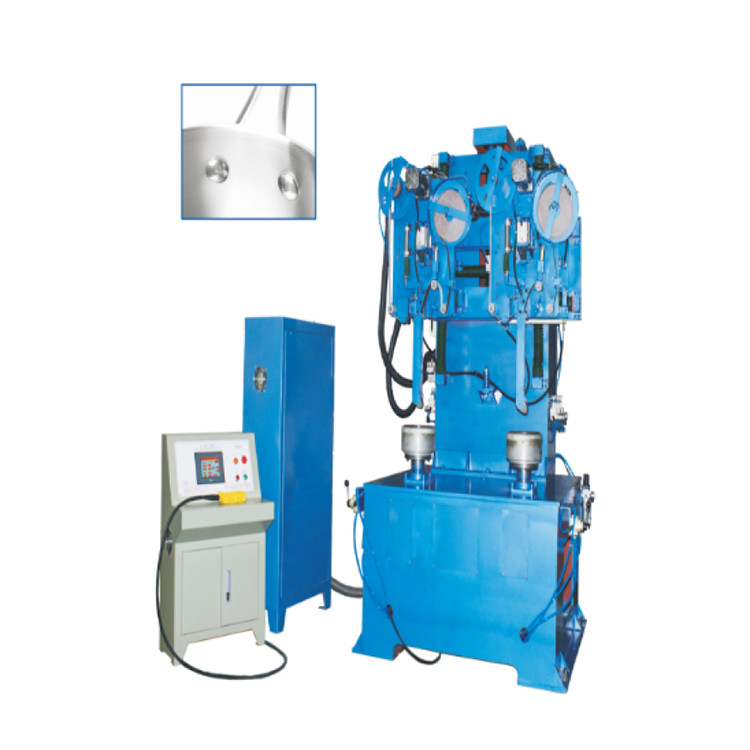

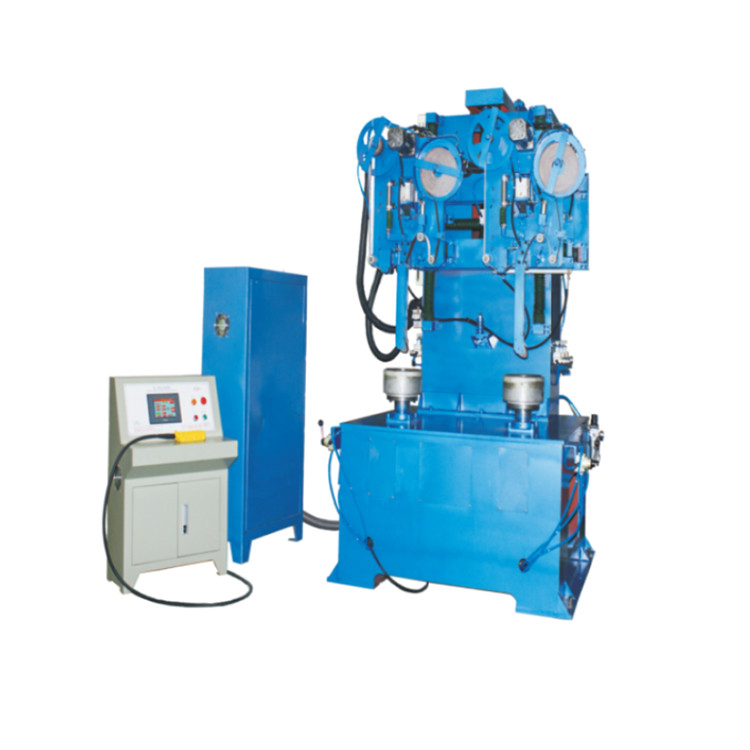

Automatic sand bottom polish machine YM-NSJ18K double head vertical 18 type sand belt grinder is a new generation of Automatic Polishing Machine controlled by servo NUMERICAL control system.The machine is equipped with two sets of sanding mechanism, which can sanding two POTS at the same time to improve efficiency.
Automatic sand bottom polish machine is easy to operate and can store the production information of more than 20 kinds of workpieces for the future production call.The structure and function of the machine have been innovated reasonably.When changing products of different sizes, it only needs to change the product mold and call up the stored product information on the touch screen, and the machine can carry out the production work.Can be straight pot, bulging pot and other round pot sanding.
Specifications:

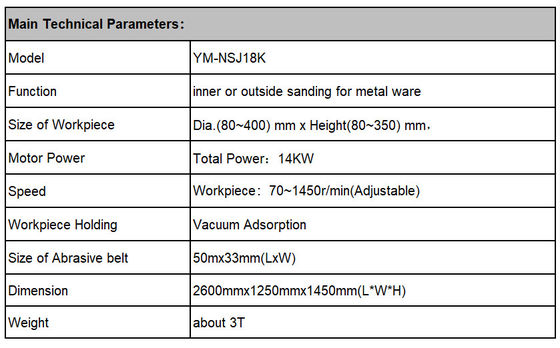

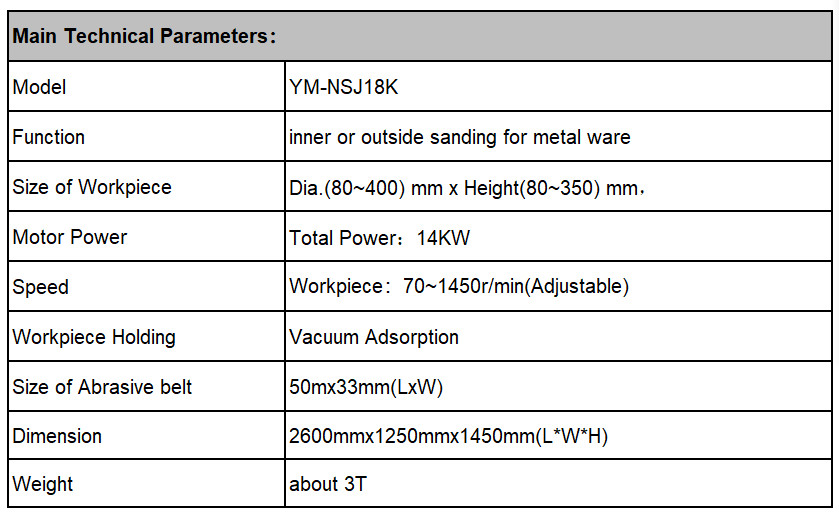

| Main Technical Parameters: | |
| Model | YM-NSJ18K |
| Function | inner or outside sanding for metal ware |
| Size of Workpiece | Dia.(80~400) mm x Height(80~350) mm, |
| Motor Power | Total Power:14KW |
| Speed | Workpiece: 70~1450r/min(Adjustable) |
| Workpiece Holding | Vacuum Adsorption |
| Size of Abrasive belt | 50mx33mm(LxW) |
| Dimension | 2600mmx1250mmx1450mm(L*W*H) |
| Weight | about 3T |
Advantages:
