| Function | Outer Surface Polish |
|---|---|
| Polishing Wheel Set | 2 |
| Size Of Workpiece | Dia.: φ140mm~380mm, H: 250mm |
| Size Of Abrasive Wheel | ≤φ450mm×330mm (Dia.×Thickness) |
| Motor (for The) Power | Abrasive Wheel Motor: 11kw |
| Function | Outer Polish For Pan |
|---|---|
| Stations | ≤ 12 |
| Size Of Workpiece | ≤φ320mm×260mm (Dia.×H) |
| Size Of Abrasive Wheel | ≤φ450mm×330mm (Dia.×Thickness) |
| Motor (for The) Power | Compensate Pressure Motor: 0.37kw |

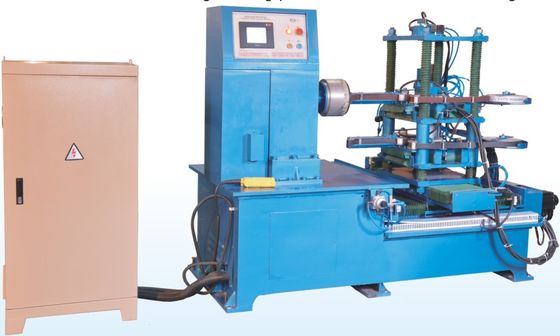

| Function | Inner Or Outer Sanding For Metal Ware |
|---|---|
| Size Of Workpiece | φ(160~320)mm×(50~300)mm (Dia.×H) |
| Size Of Abrasivebelt | ≤50m×33mm (L×W) |
| Motor (for The) Power | Abrasive Wheel Motor: 4kw×1 |
| Speed | Workpiece Speed: 70-1450r/min (Adjustable) |
| Function | The Rough, Fine And Mirror Polishing Of The Interior Surface Corners Of Various Round Metal Utensils |
|---|---|
| Polishable Part | Can Polish Outside, Bottom Or Edge Of The Workpiece |
| Size Of Workpiece | ≤φ320mm×260mm (Dia.×H) |
| Size Of Abrasive Wheel | ≤φ220mm (Dia.) |
| Speed | Workpiece: 28-140r/min |
| Slide Stroke (mm) | 400 |
|---|---|
| Return Force (kN) | 2000 KN |
| Machine Type | Hydraulic Press Machine |
| System | Servo |
| Voltage | 380V/220V Optional |
| Max Polishing Diameter | 400mm |
|---|---|

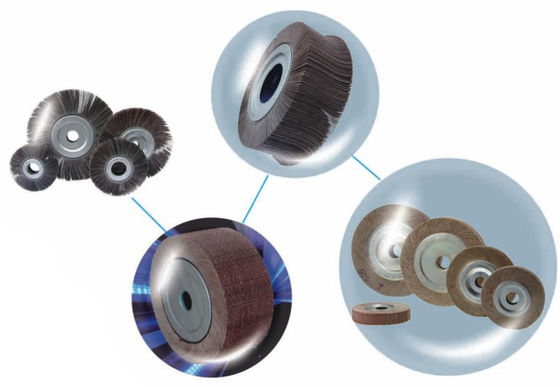

| Name | Flap Wheels |
| Polishing Wheel Hole Angle | 45° |
| Polishing Wheel Hole Depth | 20mm |
| Polishing Wheel Hole Diameter | 25mm |

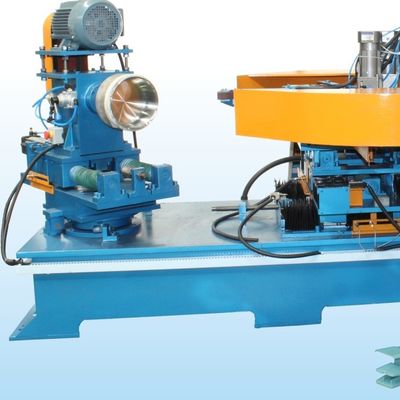

| Function | Inner Or Outer Sanding For Metal Ware |
|---|---|
| Size Of Workpiece | φ(160~300)mm×(80~300)mm (Dia.×H) |
| Size Of Abrasivebelt | ≤50m×33mm (L×W) |
| Motor (for The) Power | Abrasive Wheel Motor: 4kw×1 |
| Speed | Workpiece Speed: 70-1450r/min (Adjustable) |

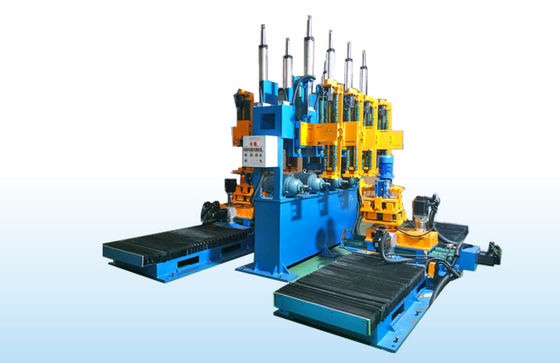

| Function | Inner Polish For Pan |
|---|---|
| Size Of Workpiece | ≤φ4000mm×(50-250)mm (Dia.×H) |
| Size Of Abrasive Wheel | ≤φ220mm (Dia.) |
| Motor (for The) Power | Workpiece Motor: 0.75kw×1 |
| Speed | Workpiece: 28-140r/min (Adjustable) |

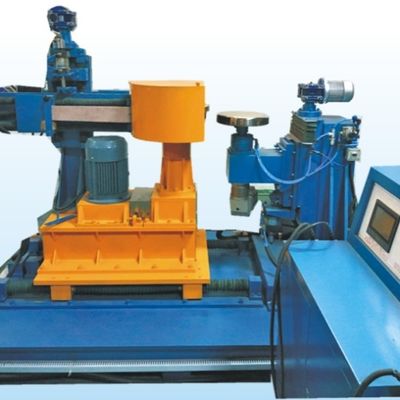

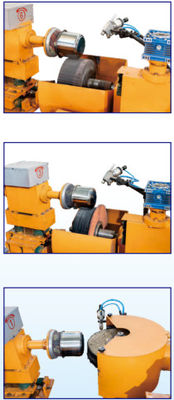

| Function | Outer Polish For Pan |
|---|---|
| Size Of Workpiece | φ(140-300)mm×300mm (Dia.×H) |
| Size Of Abrasive Wheel | ≤φ430mm×330mm (Dia.×Thickness) |
| Motor Power | Workpiece Motor:0.37kw×2 |
| Workpiece Holding | Vacuum Adsorption |
| Function | Outer Polish For Pan & Cover |
|---|---|
| Size Of Workpiece | Pan Lid≤φ400mm×50mm (Dia.×H) |
| Size Of Abrasive Wheel | ≤φ430mm×330mm (Dia.×Thickness) |
| Motor Power | Total Power: 11KW×2 |
| Speed | Abrasive Speed: 2160r/min |
