Surface polishing Double Station Multi-stations NC Interior Polishing Machine for metel ware

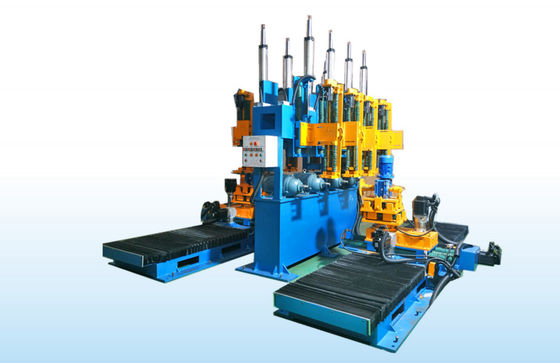

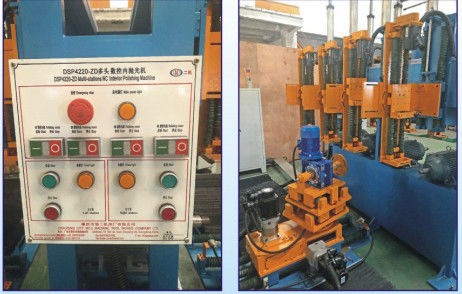

DSP4220-ZD Multi-stations NC Interior Polishing Machine
Product Description:
Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.
Quick Details:
1. Mainly used for the polishing of the internal side or bottom surface of the gyratory metalware.
2. Made with new design, and is configured with two workpieces positions and eight polishing wheel sets that makes it capable of polishing in four different processes for two workpieces simultaneously.
3. Controlled by servo numerical control system, with simple operation, where every workpiece is equipped with the three-shaft servo numerical control system and the grinding wheel compensation function.
4. Significantly reduces the commissioning time and cost, and effectively improve the work efficiency compared with the conventional polishing machine.
Specifications:
| Main Technical Parameters∶ | |
| Model | NSJ18K-360×300 |
| Function | Inner or outer sanding for metal ware |
| Size of Workpiece | Dia. (φ80~φ400)mm×(80~350mm) (Dia.×H) (Forthe workpiece with diameter below 160mm, sand rod and other accessories shall be selected according to the workpiece size) |
| Size of sanding belt | Max. Length: 50m, Width: 33mm |
| Workpiece Speed | 70~1450r/min (Adjustable) |
| Speed of sanding bar | V = 0~50mm/s (Adjustable) |
| Machine Power | Total Power: 14KW |
| Power Supply | Three-phase Five Line, 380V±10% 50Hz |
| Machine Size | 2600mm×1250mm×1450mm (L×W×H) |
| Machine Weight | About 3T |
