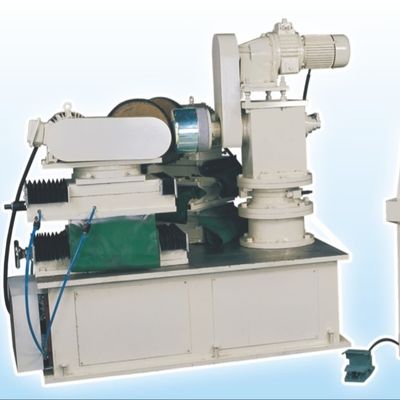

Automatic Cookware edge Polishing Machine Metal Ware Edge Polishing Machine
BM-25 Mark Edge Polisher
Product Description:
Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.
Quick Details:
1. A new designed polishing equipment which has multi functions.
2. Suitable for polishing stainless steel, aluminum, copper material.

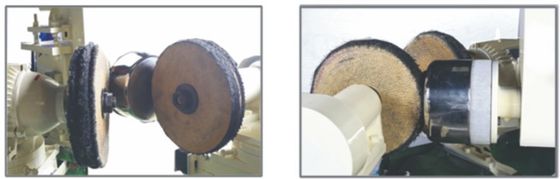

3. Has two sets of two-phase motor (2940r/min) to drive the polishing wheel which made from flax, cloth or PVA material.
4. THis machine is capable for rough/mirror polishing requirement for the edge, conor and marks of the workpiece.
Specifications:
| Main Technical Parameters∶ | |
| Model | BM-25 |
| Function | edge, conor and marks polish for metal ware |
| Size of Workpiece | ≤φ250mm (Dia.) |
| Size of Abrasive Wheel | ≤φ280mm(Dia.) |
| Motor (for the) Power |
Abrasive Wheel Motor: 5.5kw×1, 3kw×1 Workpiece Motor: 0.75kw×1 |
| Workpiece Speed |
Abrasive Wheel: 2860r/min Workpiece: 28~140r/min (Adjustable) |
| Workpiece Holding | Vacuum Adsorption |
| Dimention | 1600mm×1800mm×1600mm (L×W×H) |
| Machine Weight | About 1.5T |
