Factory price Semi Auto Edge Polishing Machine For Metal Ware Cookware Kitchen Ware Edge Polisher

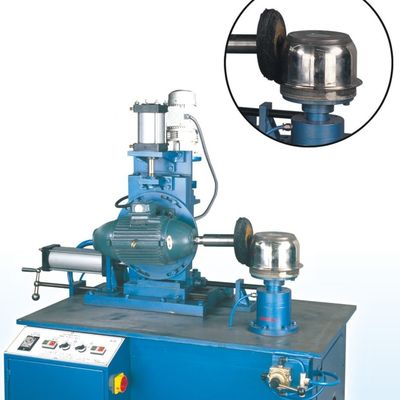

MBE-20109 Semi Auto Edge Polisher
Product Description:
Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.
Quick Details:
1. Be able to use flax or cloth polishing wheel for edge polishing.
2. Inching control for the polishing wheel.
Specifications:
| Main Technical Parameters∶ | |
| Model | MBE-20109 |
| Function | edge polish for metal ware |
| Size of Workpiece | ≤φ320mm×250mm (Dia.×H) |
| Size of Abrasive Wheel | ≤φ200mm×60mm (Dia.×Thickness) |
| Motor (for the) Power |
Abrasive Wheel Motor: 4kw×1 Workpiece Motor: 0.75kw×1 Workpiece Reciprocating Motor: 0.37kw×1 |
| Workpiece Speed |
Abrasive Wheel: 2900r/min Workpiece: 28~140r/min (Adjustable) |
| Workpiece Holding | Vacuum Adsorption |
| Machine Power | Total Power: 4KW×2 |
| Dimention | 1700mm×850mm×2200mm (L×W×H) |
| Machine Weight | About 1.3T |
More details regarding the company:
Production Line:

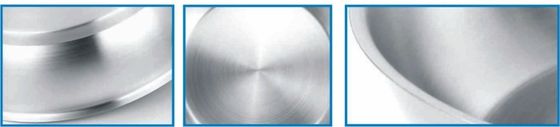

Products that manufactured by our machines:
