High quality Cookware Double Horizontal Sanding Machine 1450r/Min Surface metal ware Polishing

1 set
MOQ
Negotiable
Price
High quality Cookware Double Horizontal Sanding Machine 1450r/Min Surface metal ware Polishing
Features Gallery Product Description Request A Quote
Features
Specifications
Function: Inner Or Outer Sanding For Metal Ware
Size Of Workpiece: φ(160~300)mm×(80~300)mm (Dia.×H)
Size Of Abrasivebelt: ≤50m×33mm (L×W)
Motor (for The) Power: Abrasive Wheel Motor: 4kw×1
Speed: Workpiece Speed: 70-1450r/min (Adjustable)
Workpiece Holding: Vacuum Adsorption
Dimention: 1258mm1430mm×2450mm (L×W×H)
Weight: About 2T
High Light:

Cookware Double Horizontal Sanding Machine

,

1450r/Min Horizontal Sanding Machine

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU, ISO
Model Number: 2WSSG-300
Payment & Shipping Terms
Packaging Details: Seaworthy packing
Delivery Time: 30-50 working days
Payment Terms: L/C, T/T
Supply Ability: 50 Set/Sets per Year
Product Description

High quality Cookware Double Horizontal Sanding Machine 1450r/Min Surface Polishing

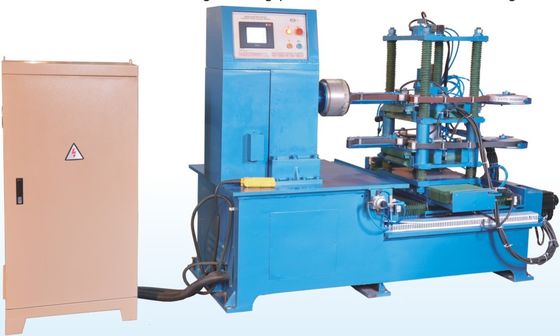

2WSSG-300 Horizontal Double Sanding Machine

Product Description:

Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.

Quick Details:

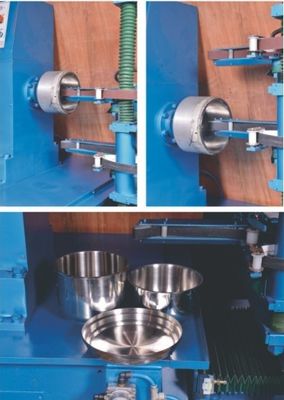

1. Widely used for the sanding of the interior and exterior of metal ware
2. Adopts Computer Numerical Control (PLC) techniques to achieve sanding automatically.
2. Equipped with two belts: the double discal abrasi upper one is used for rough sanding working procedure and the lower one for final sanding working procedure.
3. It obtains the sanding function of interior and exterior bulging workpieces.

Specifications:


Main Technical Parameters∶
Model 2WSSG-300
Function Inner or outer sanding for metal ware
Size of Workpiece φ(160~300)mm×(80~300)mm (Dia.×H)
Size of Abrasivebelt

≤50m×30mm (L×W)

Motor (for the) Power

Abrasive Wheel Motor∶ 4kw×1
Sanding Motor: 1.5kw×2
Scroll motor∶0.18kw×1

Speed Workpiece: 70~1450r/min (Adjustable)
Workpiece Holding Vacuum Adsorption
Dimention 1258mm×1430mm×2450mm (L×W×H)
Weight About 2T
