Aluminum brazing furnace is a specialized equipment used for brazing processes of aluminum and aluminum alloys.
Its working principle is usually to raise the temperature inside the furnace to the temperature range required for brazing through a heating system, in order to achieve the melting of the brazing material and the connection of the base material.
Aluminum brazing furnace has the following main characteristics:
Accurate temperature control: capable of providing uniform, stable, and precise heating temperature to ensure brazing quality.
Good atmosphere control: Brazing is usually carried out in a protective atmosphere to prevent oxidation of aluminum.
Efficient heat transfer: to improve production efficiency and reduce energy consumption.
In terms of application, aluminum brazing furnaces are widely used in automotive manufacturing, aerospace, electronics, and other fields to connect various aluminum components such as radiators, heat exchangers, air conditioning pipelines, etc.
Different types of aluminum brazing furnaces include continuous brazing furnaces and intermittent brazing furnaces to adapt to production scenarios of different scales and production needs.
Application:
Characteristic:

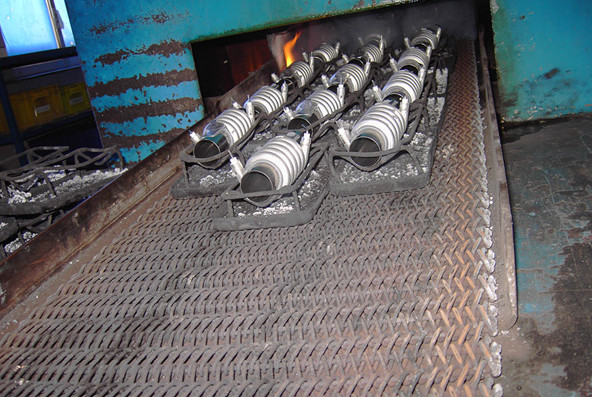

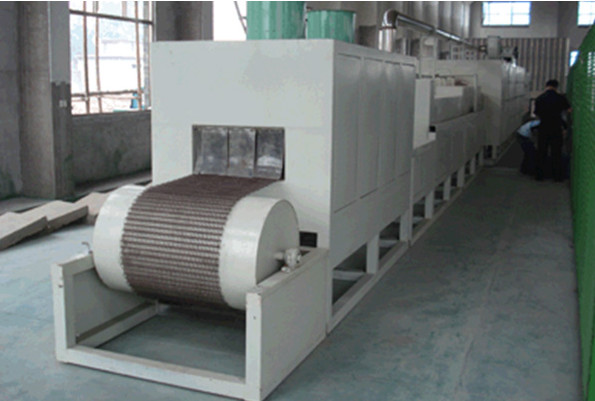

●Adoptfor heat-resistance stainless steel belt or mesh belt transmit the heat treatment workpieces to pass through heating zone and colingzoneAndinjectinsert gas or gas ammonia decomposition as a protective atmosphere to prevent and avoid the workpiece oxidation in the processafheatingand cooling, to ensure the brazing surface brightness, no oxidation, no scratches and welding line satiation
●Fumacehearth(i.e.hearting zone or muffle) adopt for imported Sweden heat-resisting temperature nickel metal 310S) to ensure thattheworkprietemperature come down to technical requirement when outlet.
●Withreasonable structure ofheating, uniform furnace temperature, workpiece on the conveyo belt running smoothly, lit deformation. Fumaehearth sze Canbe acroding to customer's dif size of the product and production design and manufacturing, with a strong specificity and generality.

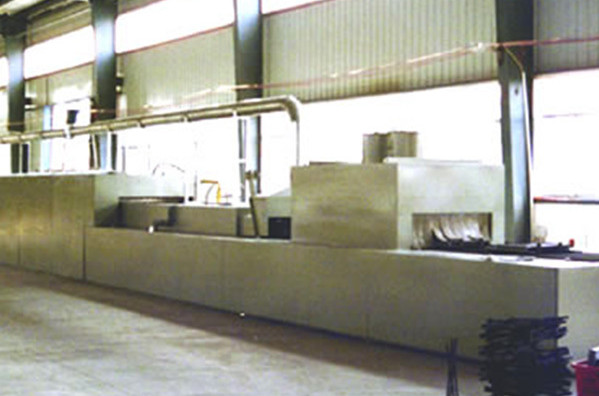

●Channelfurnace overall appearance is "bridge" structure, front back inlet and outlet chamber using high quality materials into intermediate sandwichpipe body;The front and back working face with horizontal line to be a certain angle, the angle designis6 ' . lts advantages to saving protectiveatmosphere consumption, reduce the production cost.
●Adopts advanced frequency control of motor speed conveyor belt control system, realize the stepless variable speed drive of components, preciselycontrolthe workpiece in the running time of the heating zoen, ensure the aluminum brazing process curve accurate implementation.
● Equipped with modem energy saving type ammonia decomposition funace.
Thchnical Parameters:
Specifications:
| Description |
| Continuous gas shielded aluminum brazing furnace equipment |
| Automatic constant temperature control |
| Advantage: safe operation. |
| Operator: 1 person. |
| Rated Power(KW) |
300 |
| Rated Voltage(V) |
380x3 |
| Working Temperature(℃) |
800 |
| Effective Cooling Length (MM) |
16000 |
| Heating up time(h) ≤6 |
| Empty furnace loss power (KW) |
25 |
| Output (kg/h) |
80 |
| Decomposition power (KW) |
15 |
| Decomposition capacity (m ³/h) |
10 |
| Heating size (L*W*H) mm |
5750x800x350
|
