Continuous mesh belt heat treatment furnace equipment factory for automotive and hardware accessories industry

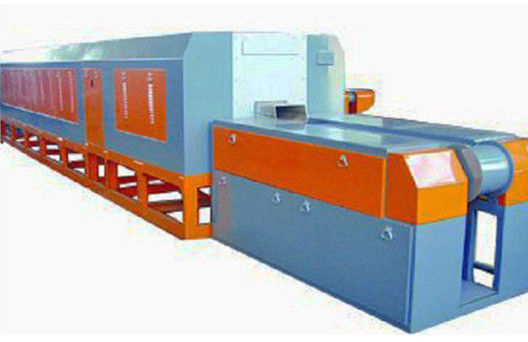

Mesh Belt Heat Treatment Furnace

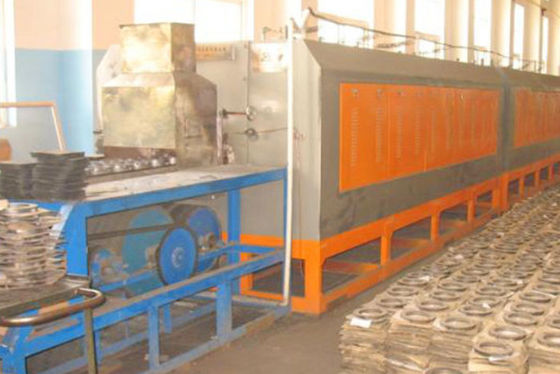

The production line equipped with the loading machine,pre-washingmachine,carburizing quenching furnace, after cleaning machine, tempering furnace,etc.

Furnace Characteristic:

1,The production line is a continuous operation furnace, which can complete the processes of self-transporting materials,

carburizing,oil quenching,tempering.Applicable to standard parts industry(spring, screw,); automobie, motorcycle, sel industry industry; hardware parts industry(clip, nail, shoe iron core, small pipe fitting, nail clipper, chain, lock hook, etc.); The industry's thin layer carburizing(<0.3mm),carbonitriding.tempering and other bright treatment quenching heat treatment.

2,This equipment has a reasonable design and compact structure which is an ideal equipment for the heat treatment industry

3,Equipped with complete and reliable electrical automatic control, safety interlock and alarm functions.

4,High degree of automation, no environmental pollution, smooth surface after treatment, uniform hardness and no

oxidation.

 Equipment composition

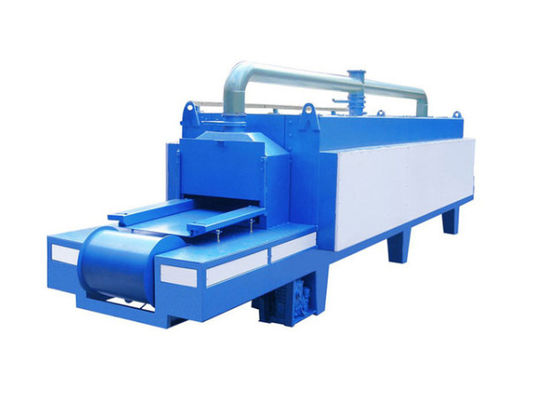

Mesh belt carburizing and quenching furnace 2- Quenching oil tank 3- Rear cleaning machine 4- Mesh belt tempering furnace 5- Control electrical cabinet, etc

Technical Parameters:

Model Rated Power lkwi (V) Rated Voltage Temperature Rated Temperature (C) Rated Working Size imm Qnencing Capacity (KG/H) Production Capacity Carbonization 10.1-0.3mm Carbonization
RCW-45-9 45 380 950 2100*220*60 40-60 20-30
RCW-60-9 60 380 950 2400*300*60 60-100 30-50
RCW-70-9 70 380 950 3200*300*80 80-120 40-60
RCW-100-9 100 380 950 3600*400*80 120-180 60-90
RCW-120-9 120 380 950 4400*400*80 180-220 90-110
RCW-150-9 150 380 950 4800*400*90 220-250 110-130
RCW-180-9 180 380 950 4800*500*90 250-300 130-150

Allocation list of the furnace body part

Specifications:

• List of main accessories (wearing parts)
