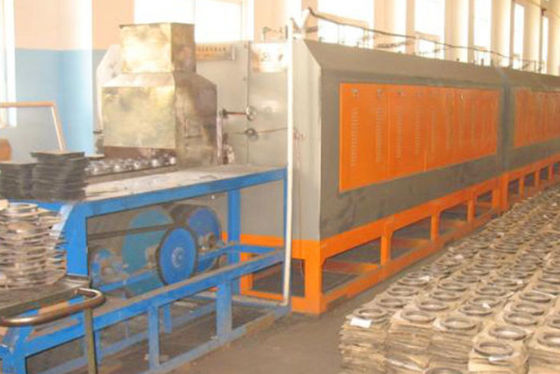

Furnace Characteristic:
1 The production line is a continuous operation furnace, which can complete the processes of self-transporting materials,
carburizing,oil quenching,tempering.Applicable to standard parts industry(spring, screw,); automobie, motorcycle, sel industry industry; hardware parts industry(clip, nail, shoe iron core, small pipe fitting, nail clipper, chain, lock hook, etc.); The industry's thin layer carburizing(<0.3mm), carbonitriding.tempering and other bright treatment quenching heat treatment.
2 This equipment has a reasonable design and compact structure which is an ideal equipment for the heat treatment industry
3 Equipped with complete and reliable electrical automatic control, safety interlock and alarm functions.
4 High degree of automation, no environmental pollution, smooth surface after treatment, uniform hardness and no
oxidation.
Equipment composition

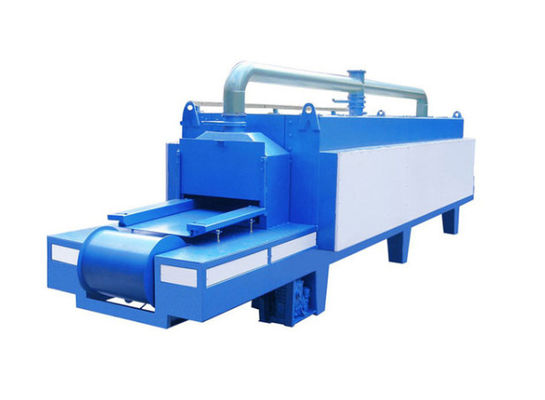

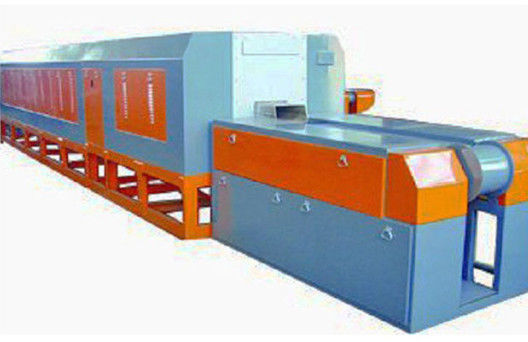

Mesh belt carburizing and quenching furnace 2- Quenching oil tank 3- Rear cleaning machine 4- Mesh belt tempering furnace 5- Control electrical cabinet, etc
Technical Parameters:
Model Rated Power lkwi (V) Rated Voltage Temperature Rated Temperature (C) Rated Working Size imm Qnencing Capacity (KG/H) Production Capacity Carbonization 10.1-0.3mm Carbonization
RCW-45-9 45 380 950 2100*220*60 40-60 20-30
RCW-60-9 60 380 950 2400*300*60 60-100 30-50
RCW-70-9 70 380 950 3200*300*80 80-120 40-60
RCW-100-9 100 380 950 3600*400*80 120-180 60-90
RCW-120-9 120 380 950 4400*400*80 180-220 90-110
RCW-150-9 150 380 950 4800*400*90 220-250 110-130
RCW-180-9 180 380 950 4800*500*90 250-300 130-150
Allocation list of the furnace body part
| order number | Package number / item number description | Specifications and models | quantity | Manufacturer name |
| 1 | furnace body | 1 | ||
| 2 | trolley | 1 | ||
| 3 | Aluminum silicate fiber cotton | STD | 1 | Shanxi Baojie fire-resistant thermal insulation material |
| 4 | heating element | 0Cr25Al5 resistance band, internal ceramic string sleeve fixed | 1 | Shanghai tree green |
| 5 | Furnace fan | 3.0KW | 4 | |
| 6 | Truck with force cycloidal motor | 5.5KW | 1 | |
| 7 | Went line motor with power of furnace door | 3KW | 1 | |
| 8 | Electric cabinet control box | 1 | ||
| 9 | pond | 1 |
Specifications:
| Description | |
| Continuous gas shielded aluminum brazing furnace equipment | |
| Automatic constant temperature control | |
| Advantage: safe operation. | |
| Operator: 1 person. | |
| Rated Power(KW) | 300 |
| Rated Voltage(V) | 380x3 |
| Working Temperature(℃) | 800 |
| Effective Cooling Length (MM) | 16000 |
| Heating up time(h) ≤6 | |
| Empty furnace loss power (KW) | 25 |
| Output (kg/h) | 80 |
| Decomposition power (KW) | 15 |
| Decomposition capacity (m ³/h) | 10 |
| Heating size (L*W*H) mm | 5750x800x350 |
| order number | ts | name | quantity | place of production |
| 1 | SCR-160 | Tuning module | 4 block | |
| 2 | WRNK-130 Φ5mm | thermocouple | Four | Zhaoqing, Guangdong |
| 3 | AI518E3JO | Intelligent digital display power control temperature control table | One | Xiamen udian |
