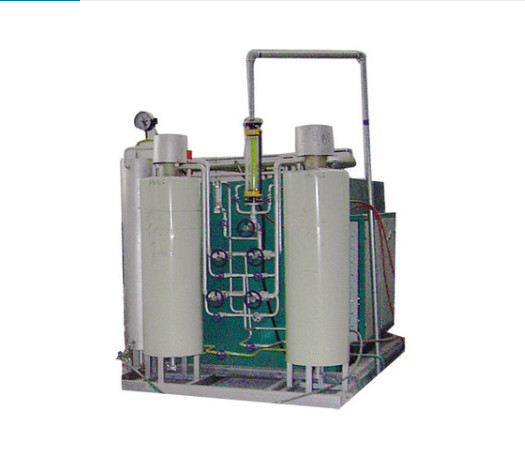

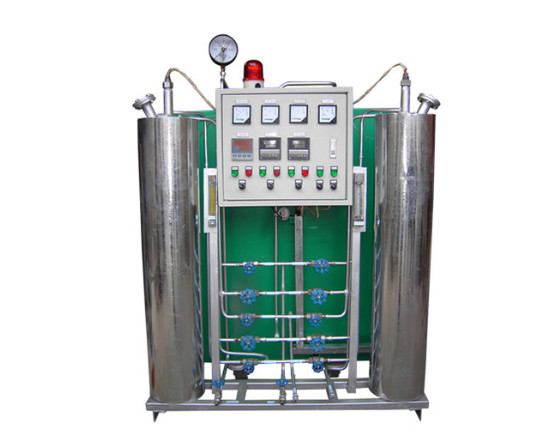

Detailed introduction of industrial furnace equipment for ammonia decomposition hydrogen production
1, Equipment Overview
The ammonia decomposition hydrogen production industrial furnace is a device that decomposes ammonia gas (NH3) into hydrogen gas (H ₂) and nitrogen gas (N ₂) through heating. It is widely used in metal heat treatment, electronics, chemical industry, glass and other fields, providing high-purity hydrogen gas for the production process.
2, Working principle
The working principle of the ammonia decomposition hydrogen production industrial furnace is based on the decomposition reaction of ammonia gas under certain temperature and catalyst action. When ammonia enters the reaction furnace equipped with a catalyst, it decomposes into hydrogen and nitrogen under high temperature conditions of 700-850 ℃. The chemical reaction equation is:
Urge
turn
agent
The
high
temperature
3, Equipment composition
Decomposition furnace body: made of high-quality heat-resistant stainless steel or other high-temperature resistant materials, with a catalyst bed installed inside for the decomposition reaction of ammonia gas.
Heating system: Electric heating elements (such as resistance wires, silicon carbide rods, etc.) or gas burners are usually used for heating to provide the high temperature environment required for ammonia decomposition.
Catalyst: High efficiency catalysts such as nickel based catalysts are selected and placed inside the decomposition furnace to promote the decomposition reaction of ammonia and improve the yield and purity of hydrogen gas.
Gas purification system: including filters, adsorbents, etc., used to remove impurities (such as residual ammonia, moisture, dust, etc.) from decomposed gases to obtain high-purity hydrogen and nitrogen gas.
Temperature control system: composed of thermocouples, temperature controllers, and heating regulating devices, it accurately controls the temperature inside the decomposition furnace to ensure the stable progress of the ammonia decomposition reaction.
Pressure control system: used to control the gas pressure inside the equipment, ensuring the safe and stable operation of the system.
Safety protection device: equipped with over temperature alarm, over pressure protection, gas leakage detection and other safety protection devices to ensure the safety of equipment operation.
4, Equipment features
Efficient hydrogen production: Under suitable temperature and catalyst conditions, ammonia decomposition efficiency is high and hydrogen yield is high.
High purity of hydrogen: After purification treatment, the purity of hydrogen can reach over 99.99%, meeting the requirements of various industrial applications for hydrogen purity.
Easy to operate: The equipment has a high degree of automation, simple operation, stable operation, and easy maintenance.
Energy saving and environmental protection: Compared with other hydrogen production methods, ammonia decomposition for hydrogen production has relatively low energy consumption, and the generated nitrogen can be recycled and reused, which is environmentally friendly.
5, Technical parameters
Hydrogen production: Depending on different models and specifications, the production range is [specific production range] m ³/h.
Hydrogen purity: ≥ 99.99%
Nitrogen purity: ≥ 99.9%
Decomposition temperature: 700-850 ℃
Work pressure: [specific pressure range] MPa
6, Application Fields
Metal heat treatment: During the annealing, quenching, carburizing and other heat treatment processes of metals, hydrogen gas acts as a protective gas to prevent metal oxidation and decarburization, and improve the quality and properties of metals.
Electronic industry: used for processes such as reduction and annealing in chip manufacturing and semiconductor device production, providing a high-purity hydrogen protective atmosphere.
Chemical industry: As a hydrogen source for hydrogenation reactions, it is used in production processes such as ammonia synthesis, petroleum hydrocracking, and oil and fat hydrogenation.
Glass industry: In the glass manufacturing process, hydrogen can be used as a protective atmosphere for glass melting furnaces to improve the quality and yield of glass.
Application:
Thchnical Parameters:
Specifications:
| Description |
| Continuous gas shielded aluminum brazing furnace equipment |
| Automatic constant temperature control |
| Advantage: safe operation. |
| Operator: 1 person. |
| Rated Power(KW) |
120 |
| Rated Voltage(V) |
380x3 |
| Working Temperature(℃) |
1150 |
| Effective Cooling Length (MM) |
3450 |
| Heating up time(h) ≤4 |
| Empty furnace loss power (KW) |
26 |
| Heating element connection method |
YYYYYY |
| Decomposition power (KW) |
|
| Decomposition capacity (m ³/h) |
80 |
| Heating size (L*W*H) mm |
3450x1550x2100
|
Characteristic:
●Adoptfor heat-resistance stainless steel belt or mesh belt transmit the heat treatment workpieces to pass through heating zone and colingzoneAndinjectinsert gas or gas ammonia decomposition as a protective atmosphere to prevent and avoid the workpiece oxidation in the processafheatingand cooling, to ensure the brazing surface brightness, no oxidation, no scratches and welding line satiation
●Fumacehearth(i.e.hearting zone or muffle) adopt for imported Sweden heat-resisting temperature nickel metal 310S) to ensure thattheworkprietemperature come down to technical requirement when outlet.
●Withreasonable structure ofheating, uniform furnace temperature, workpiece on the conveyo belt running smoothly, lit deformation. Fumaehearth sze Canbe acroding to customer's dif size of the product and production design and manufacturing, with a strong specificity and generality.
●Channelfurnace overall appearance is "bridge" structure, front back inlet and outlet chamber using high quality materials into intermediate sandwichpipe body;The front and back working face with horizontal line to be a certain angle, the angle designis6 ' . lts advantages to saving protectiveatmosphere consumption, reduce the production cost.
●Adopts advanced frequency control of motor speed conveyor belt control system, realize the stepless variable speed drive of components, preciselycontrolthe workpiece in the running time of the heating zoen, ensure the aluminum brazing process curve accurate implementation.
● Equipped with modem energy saving type ammonia decomposition funace.
