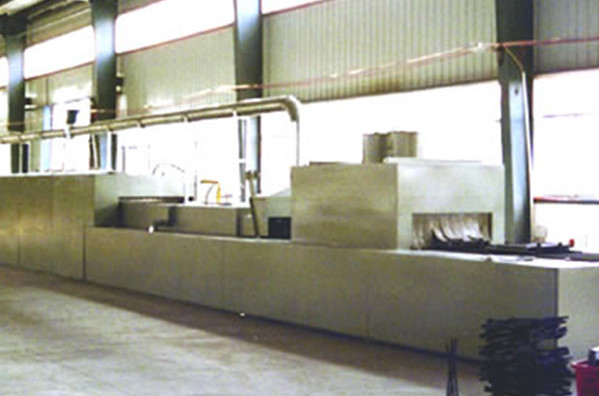

Continuous gas shielded aluminum brazing furnace equipment
This mesh belt continuous gas shielded aluminum brazing furnace is mainly used for varíous of aluminumheating panel, aluminum and iron , stainless steel and aluminum plate , aluminum and aluminum, coperand aluminum and other aluminum other continuous brazing production. After suffering from suchequipment treatment, product surface becomes bright without oxidation. The furnace boasts stylishdesign, rational structure, energy saving, high heat efficiency, stable production quality, safe and easyuse,not generating industrial pollution. Advanced temperature control manners: Intelligent thermostat, slicnocontrolled rectifier and Schneider electrical switches ensure temperature control precisionof t1C.lt'sadvanced, reliable, practicable and cost effective as an industrial furnace.
The advantages of this type furnace compare with vacuum brazing furnace
●Not onlylow cost, but also can testing the quality of the products and change the production process at any time.
●Continuous brazing time is short, high production efficiency, stable production process.
● And ahigh degree of automation, easy operation and operation technique and also do not have a vacuum furnaceis complex andhighrequirements, etc.

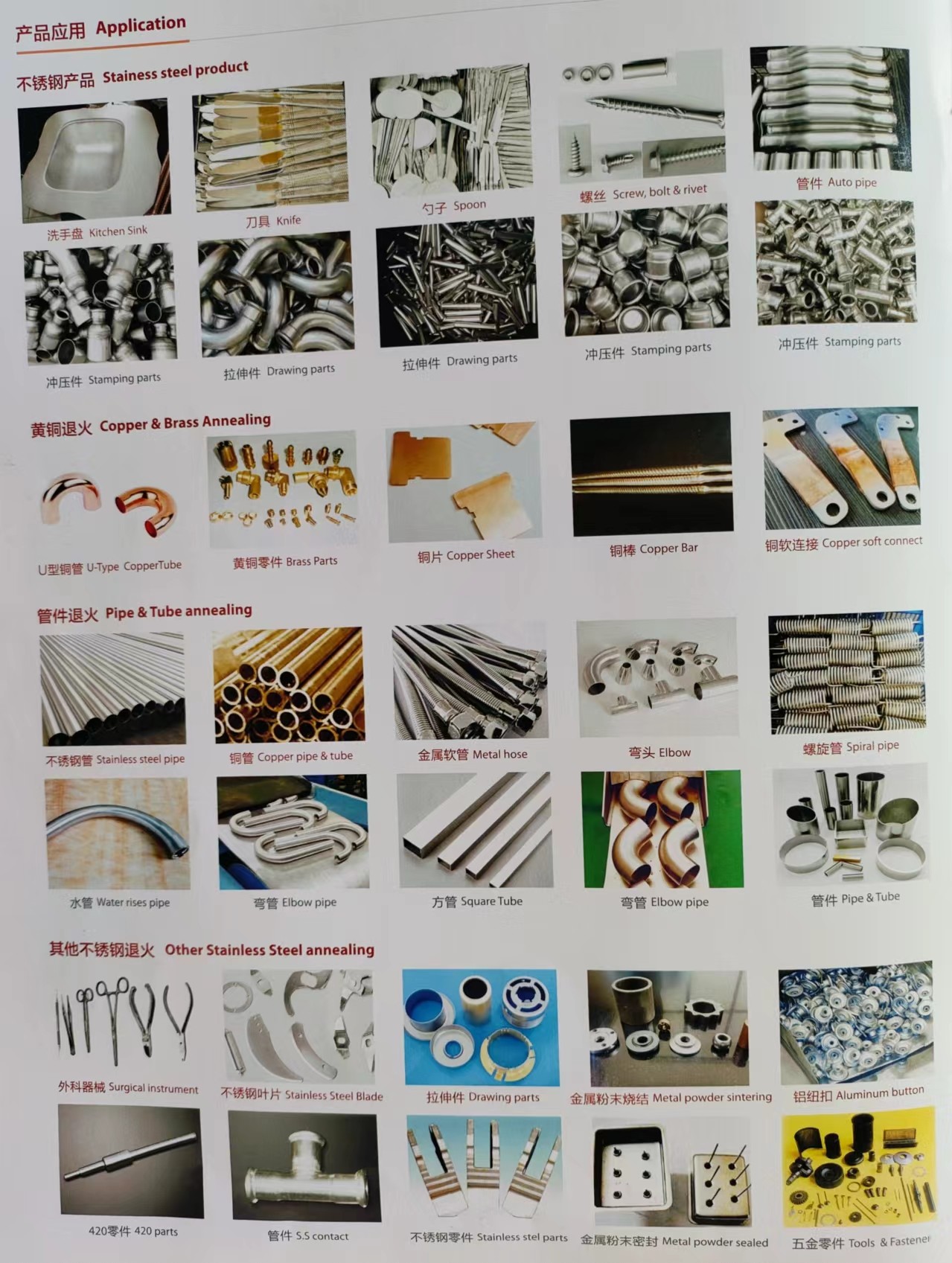

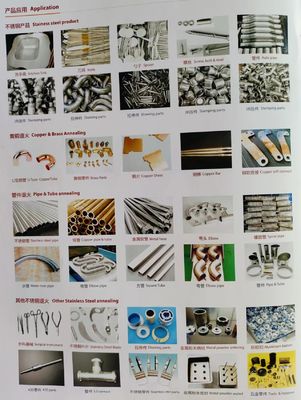

Application:
Characteristic:

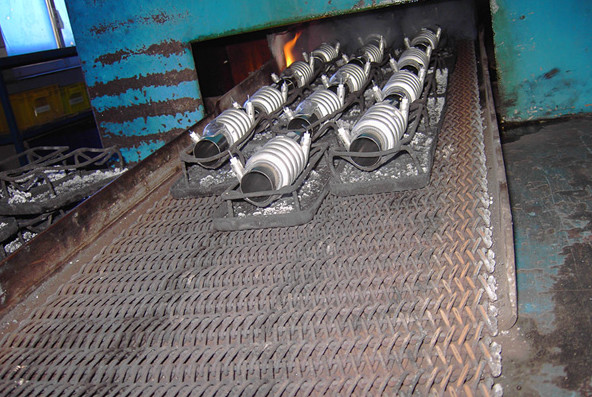

●Adoptfor heat-resistance stainless steel belt or mesh belt transmit the heat treatment workpieces to pass through heating zone and colingzoneAndinjectinsert gas or gas ammonia decomposition as a protective atmosphere to prevent and avoid the workpiece oxidation in the processafheatingand cooling, to ensure the brazing surface brightness, no oxidation, no scratches and welding line satiation
●Fumacehearth(i.e.hearting zone or muffle) adopt for imported Sweden heat-resisting temperature nickel metal 310S) to ensure thattheworkprietemperature come down to technical requirement when outlet.
●Withreasonable structure ofheating, uniform furnace temperature, workpiece on the conveyo belt running smoothly, lit deformation. Fumaehearth sze Canbe acroding to customer's dif size of the product and production design and manufacturing, with a strong specificity and generality.
●Channelfurnace overall appearance is "bridge" structure, front back inlet and outlet chamber using high quality materials into intermediate sandwichpipe body;The front and back working face with horizontal line to be a certain angle, the angle designis6 ' . lts advantages to saving protectiveatmosphere consumption, reduce the production cost.
●Adopts advanced frequency control of motor speed conveyor belt control system, realize the stepless variable speed drive of components, preciselycontrolthe workpiece in the running time of the heating zoen, ensure the aluminum brazing process curve accurate implementation.
● Equipped with modem energy saving type ammonia decomposition funace.
Thchnical Parameters:
Specifications:
| Description | |
| Continuous gas shielded aluminum brazing furnace equipment | |
| Automatic constant temperature control | |
| Advantage: safe operation. | |
| Operator: 1 person. | |
| Rated Power(KW) | 80 |
| Rated Voltage(V) | 380x3 |
| Working Temperature(℃) | 800 |
| Effective Cooling Length (MM) | 72000 |
| Heating up time(h) ≤3.5 | |
| Empty furnace loss power (KW) | 25 |
| Output (kg/h) | 80 |
| Decomposition power (KW) | 15 |
| Decomposition capacity (m ³/h) | 10 |
| Heating size (L*W*H) mm | 9000x400x80 |
