The trolley type annealing furnace is a national standard energy-saving periodic operation furnace, with an ultra energy-saving structure and a fiber structure, saving 30% electricity. The production adopts composite high aluminum ceramic nail sets, anti-collision sealing bricks for the trolley, automatic sealing of the trolley and furnace door, integrated rail connection, no need for basic installation, and can be used on a horizontal ground. Mainly used for quenching, annealing, aging, and heat treatment of various mechanical parts such as high chromium and high manganese steel castings, ductile iron, rollers, steel balls, 45 steel, stainless steel, etc.
Annealing furnace manufacturer: Trolley type annealing furnace Product features:
1. No noise, no environmental pollution.
2. Low heat storage and less heat loss.
3. High temperature control accuracy and strong furnace temperature uniformity.
4. High degree of automation and simple operation.
5. PID programming can be used for full automatic operation.
6. Good sealing, long service life, safe and reliable.
Annealing furnace manufacturer: Trolley type annealing furnaces are widely used in industrial sectors such as chemical, petroleum, food, metallurgy, machinery, light industry, power, shipbuilding, papermaking, mining, medicine, and centralized heating. With the development of social productivity, its application in various industries is becoming increasingly widespread.
This furnace is composed of a furnace body, a movable furnace cover, and a control system.
1. The shell of the furnace body is made of welded steel and steel plates.
2. The furnace cover support adopts a movable combination of steel and guide rails.
3. The heating elements are arranged on the furnace side using high resistance alloys produced by Beijing Shougang.
4. The bottom of the furnace is built with high alumina bricks due to its load-bearing capacity, and the center of the furnace is covered with a large ring and a small ring, with heating inside and outside.
5. The furnace cover adopts hydraulic lifting, and the motor controls automatic walking.
6. The temperature control system adopts PID thyristor control, with high accuracy.

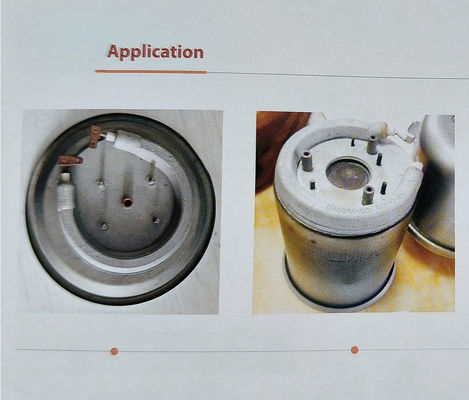

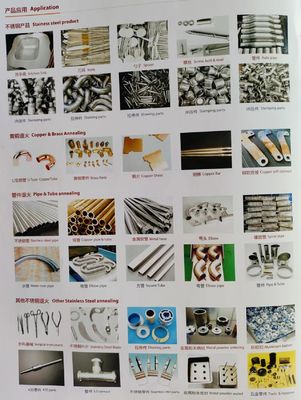

Application:
Characteristic:

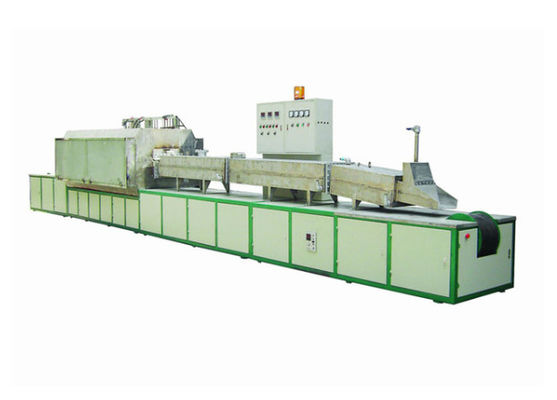

●Adoptfor heat-resistance stainless steel belt or mesh belt transmit the heat treatment workpieces to pass through heating zone and colingzoneAndinjectinsert gas or gas ammonia decomposition as a protective atmosphere to prevent and avoid the workpiece oxidation in the processafheatingand cooling, to ensure the brazing surface brightness, no oxidation, no scratches and welding line satiation
●Fumacehearth(i.e.hearting zone or muffle) adopt for imported Sweden heat-resisting temperature nickel metal 310S) to ensure thattheworkprietemperature come down to technical requirement when outlet.
●Withreasonable structure ofheating, uniform furnace temperature, workpiece on the conveyo belt running smoothly, lit deformation. Fumaehearth sze Canbe acroding to customer's dif size of the product and production design and manufacturing, with a strong specificity and generality.

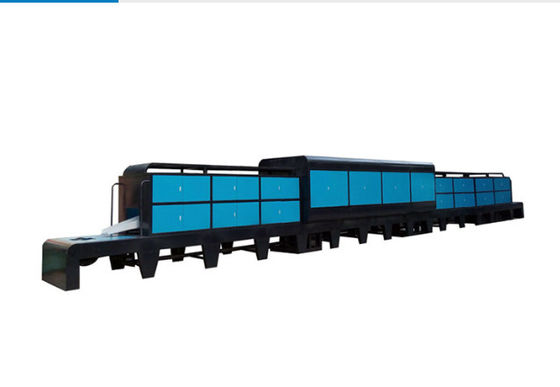

●Channelfurnace overall appearance is "bridge" structure, front back inlet and outlet chamber using high quality materials into intermediate sandwichpipe body;The front and back working face with horizontal line to be a certain angle, the angle designis6 ' . lts advantages to saving protectiveatmosphere consumption, reduce the production cost.
●Adopts advanced frequency control of motor speed conveyor belt control system, realize the stepless variable speed drive of components, preciselycontrolthe workpiece in the running time of the heating zoen, ensure the aluminum brazing process curve accurate implementation.
● Equipped with modem energy saving type ammonia decomposition funace.
Thchnical Parameters:
Specifications:
| Description |
| Continuous gas shielded aluminum brazing furnace equipment |
| Automatic constant temperature control |
| Advantage: safe operation. |
| Operator: 1 person. |
| Rated Power(KW) |
150 |
| Rated Voltage(V) |
380x3 |
| Working Temperature(℃) |
1150 |
| Effective Cooling Length (MM) |
18000 |
| Heating up time(h) ≤5 |
| Empty furnace loss power (KW) |
45 |
| Output (kg/h) |
280 |
| Decomposition power (KW) |
24 |
| Decomposition capacity (m ³/h) |
15 |
| Heating size (L*W*H) mm |
4500x500x200
|
