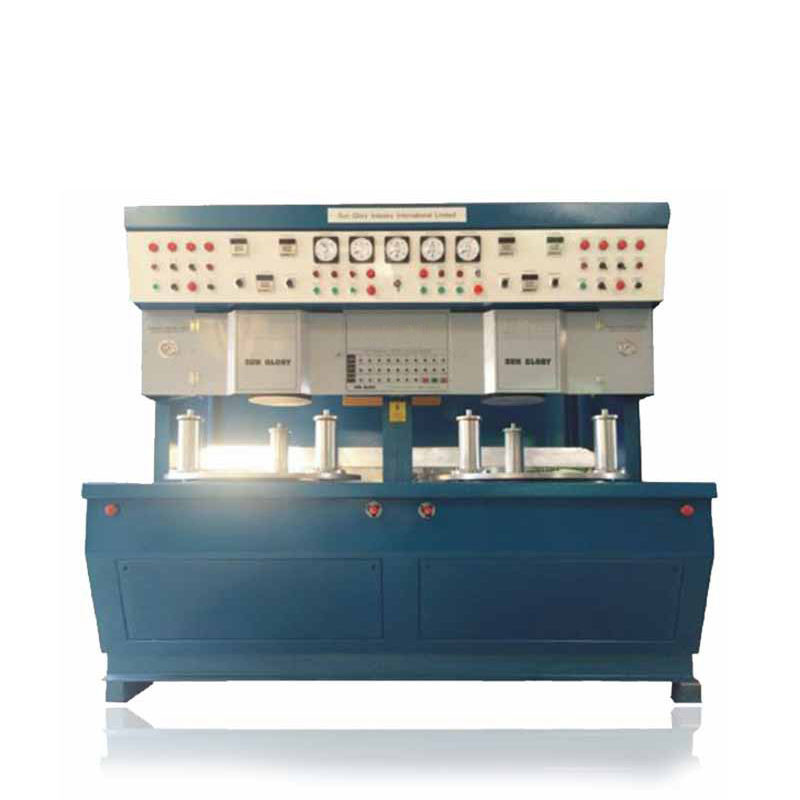

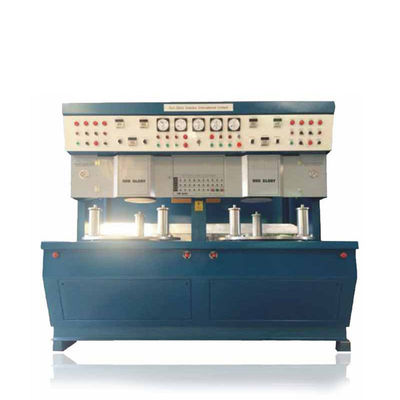

Cookware compound bottom Induction brazing welding machine
Product Description:
Cookware Bottom Brazing Machine
1. Using traditional vacuum tube, the technology is mature and reliable.
2. Fast heating speed and high production efficiency.
3. The overall design is reasonable, small heat loss, and beautiful appearance.

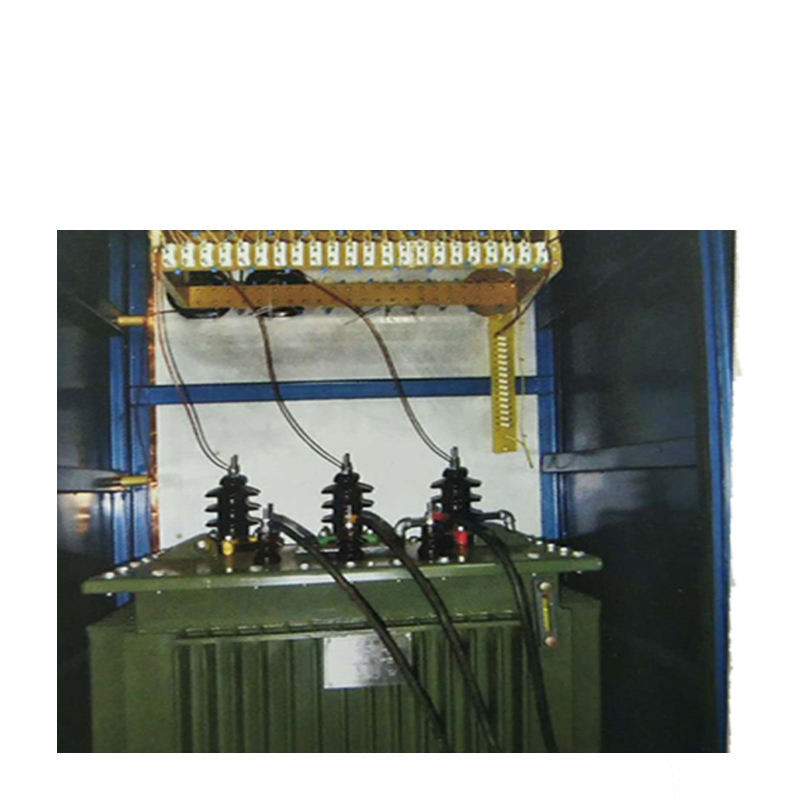

4. Internal pressurizer, low price and small investment.
5. Digital display of operating mode and easy maintenance
6. Electron tube mode, high voltage resistance ability:
Quick Details:
1. Electron tube mode, high voltage resistance ability
a. Heat evenly and stably.
b. Not easy to spark, high resistance ability for high voltage ignition during brazing.
2. Copper tube cooling
Capacitors are protected by water cooling from copper tube, better safety and cooling performance .
3. Separate water cooling for internal part and external part
To protect the important components from impurities and keep longer life, important components
of machine internal part are cooled by distilled water, we call that internal recycling. Distilled water
and other machine parts are cooled by normal water, it called external recycling.
4. Safety protection
a. There are sensors on the cabinet door of oscillation section and inner electric cabinet
power of the whole machine will be cut off and machine will stop running if machine door is
opened during machine working. It can protect the worker from getting injured because of the
wrong operation. Also prevent the machine from being damaged because of special situation.
b. Inner water cooling performance will be affected if water pressure is not enough and water
level of outer connection is too low. Water temperature will become too high, then high voltage
can not work. There is an indicator light on the machine panel will flash and remind the operators.
5. Components brand
Machine components are of reliable quality and superior performance to extend the machine life,
ensure the stable working and improve finished products quality. We use brands from Japan,
Germany, South Korea.
Specifications:
| Model |
V-60kw |
V-100kw |
V-150kw |
| Power supply type |
Vacuum tube |
Vacuum tube |
Vacuum tube |
| Input voltage |
3phases 380V 50-60HZ |
3phases 380V 50-60HZ |
3phases 380V 50-60HZ |
| Output power |
60KW |
100KW |
150KW |
| Frequency |
200-300KHz |
200-300KHz |
200-300KHz |
| Cookware size |
Φ80-320mm, H ≤350mm |
Φ80-390mm, H ≤350mm |
Φ80-590mm, H≤600mm |
| Aluminum disc size |
Φ80-310mm, thickness 0.4mm-12mm |
Φ80-380mm, thickness 0.4mm-12mm |
Φ80-580mm, thickness 1.5mm-12mm |

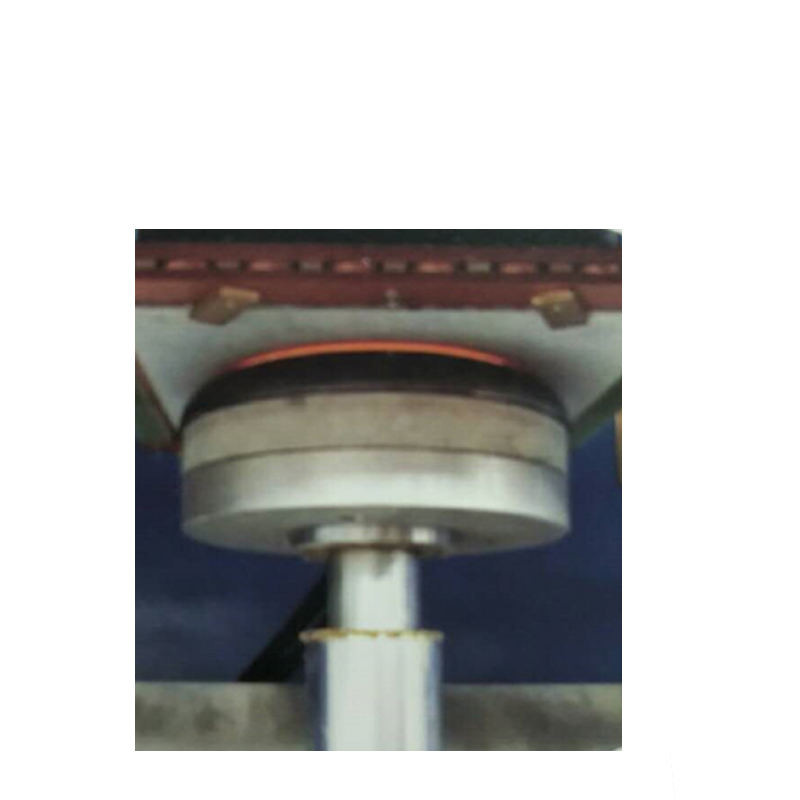

| Induction head |
Φ320mm x 2pcs |
Φ430mm x 2pcs |
Φ320mm x 2pcs,
Φ630mm x 2pcs
|
| Control panel |
Trouble shooting & complete self protected |
| Worm gear motor |
with braking system |
| Inductor & cooling plate |
inductor Φ320mm, cooling plate320x320mm |
inductor Φ430mm, cooling plate430x430mm |
inductor Φ630mm, cooling plate630x630mm |
| cooling system (air cooled /water cooled/oil cooled) |
water cooled |
| Max. brazing temperature |
900℃ |
| Max. workshop temperature |
40℃ |
| Overall size |
2450 x 3100 x 2000mm |
2650 x 3100 x 2000mm |
2850 x 3100 x 2000mm |
| Net weight |
about 4100kg |
4200kg |
4400kg |
| Gross weight |
about 4300kg |
4400kg |
4600kg |
