cookware brazing machine brazing machine welding induction brazing machine
Product Description:
Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.
Quick Details:
1. Electron tube mode, high voltage resistance ability
a. Heat evenly and stably.
b. Not easy to spark, high resistance ability for high voltage ignition during brazing.
2. Copper tube cooling
Capacitors are protected by water cooling from copper tube, better safety and cooling performance .

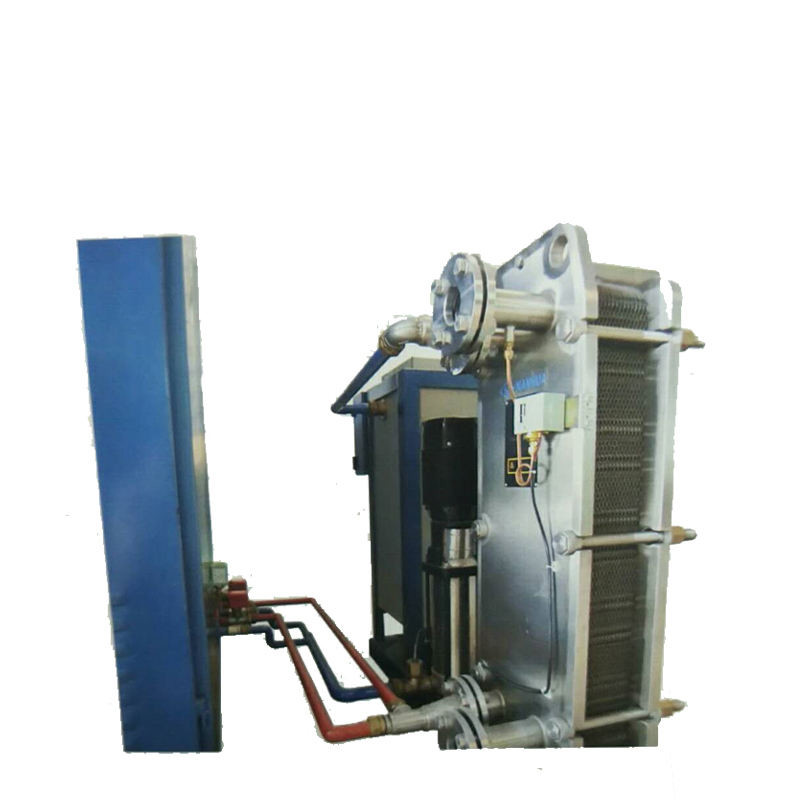

3. Separate water cooling for internal part and external part
To protect the important components from impurities and keep longer life, important components
of machine internal part are cooled by distilled water, we call that internal recycling. Distilled water
and other machine parts are cooled by normal water, it called external recycling.
4. Safety protection
a. There are sensors on the cabinet door of oscillation section and inner electric cabinet
power of the whole machine will be cut off and machine will stop running if machine door is
opened during machine working. It can protect the worker from getting injured because of the
wrong operation. Also prevent the machine from being damaged because of special situation.
b. Inner water cooling performance will be affected if water pressure is not enough and water
level of outer connection is too low. Water temperature will become too high, then high voltage
can not work. There is an indicator light on the machine panel will flash and remind the operators.
5. Components brand
Machine components are of reliable quality and superior performance to extend the machine life,
ensure the stable working and improve finished products quality. We use brands from Japan,
Germany, South Korea.
Specifications:
| Model |
3B-25 |
3B-30 |
3B-40 |
3B-60 |
3B-80 |
| Power |
25KW |
30KW |
40KW |
60KW |
80KW |
| Input voltage |
3P 380V 50/60Hz |
3P 380V 50-60Hz |
3P 380V 50-60Hz |
3P 380V 50-60Hz |
3P 380V 50-60Hz |
| Heating current |
200-1200A |
400-1500A |
400-1800A |
400-2400A |
400-3200A |
| Cooling way |
Water cooling |
Water cooling |
Water cooling |
Water cooling |
Water cooling |
| Brazing diameter |
≤φ130mm |
≤φ140mm |
≤φ180mm |
≤φ250mm |
≤φ400mm |
| Aluminum thickness |
1.5-2mm |
1.5-2mm |
1.5-2mm |
1.5-2mm |
1.5-2mm |
| Size (mm) |
1800x1100x1800 |
1800x1100x1800 |
1800x1100x1800 |
1800x1100x1800 |
1800x1100x1800 |
| weight |
360KG |
400KG |
450KG |
500KG |
550KG |
