Automatic Bottom Induction Brazing Machine For Pressure Cooker

1 set
MOQ
Negotiable
Price

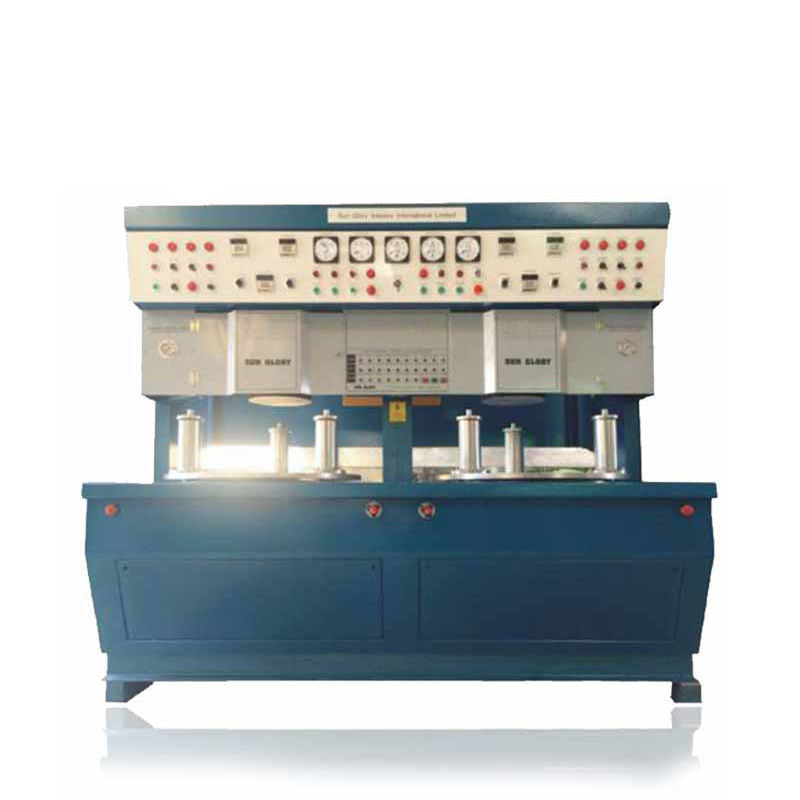

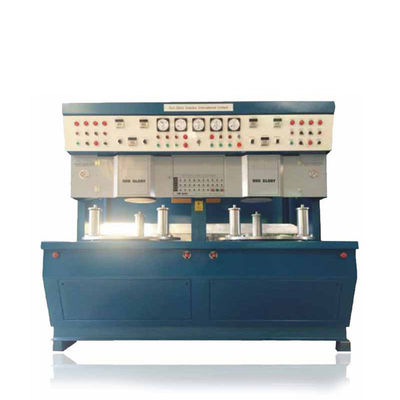

Automatic Bottom Induction Brazing Machine For Pressure Cooker
Features Gallery Product Description Request A Quote
Features
Specifications
Slide Stroke (mm): 400
Return Force (kN): 2000 KN
Machine Type: Hydraulic Press Machine
System: Servo
Voltage: 380V/220V Optional
Dimension(L*W*H): 2200*2400*4200mm
Weight (T): 3.5 T
Motor Power (kw): 30 Kw
High Light:

Bottom Induction Brazing Machine

,

Pressure Cooker Induction Brazing Machine

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU,ISO
Model Number: MB4140-ZD
Payment & Shipping Terms
Packaging Details: metal frame with film
Delivery Time: 1 month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Product Description

Automatic bottom induction brazing machine for pressure cooker



Product Description:



Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.



Quick Details:

1. Electron tube mode, high voltage resistance ability
a. Heat evenly and stably.
b. Not easy to spark, high resistance ability for high voltage ignition during brazing.
2. Copper tube cooling
Capacitors are protected by water cooling from copper tube, better safety and cooling performance .
3. Separate water cooling for internal part and external part
To protect the important components from impurities and keep longer life, important components
of machine internal part are cooled by distilled water, we call that internal recycling. Distilled water
and other machine parts are cooled by normal water, it called external recycling.
4. Safety protection
a. There are sensors on the cabinet door of oscillation section and inner electric cabinet
power of the whole machine will be cut off and machine will stop running if machine door is
opened during machine working. It can protect the worker from getting injured because of the
wrong operation. Also prevent the machine from being damaged because of special situation.
b. Inner water cooling performance will be affected if water pressure is not enough and water
level of outer connection is too low. Water temperature will become too high, then high voltage
can not work. There is an indicator light on the machine panel will flash and remind the operators.
5. Components brand
Machine components are of reliable quality and superior performance to extend the machine life,
ensure the stable working and improve finished products quality. We use brands from Japan,
Germany, South Korea.







Specifications:



Model SGB-0600 SGB-1700
Input power 70KVA,3 phases,220-440V,50-60HZ 315KVA,3 phases,220-440V,50-60HZ
Output power 60KW,300KHZ 170KW,300KHZ
Cookware size 80-320mm,H=350mm 80-580mm,H=600mm
Aluminum disc size 80-310mm,T=0.8mm-10mm 80-580mm,T=1.5mm-10mm
Induction head 320mm x2 80-320mm 2,320-580mm x 2
Control panel Trouble shooting & over-low protected Trouble shooting & over-low protected
Max brazing temperature 900C 900
Max workshop temperature 40C 40C
Electron tube TOSHIBA(made in Japan) TOSHIBA(made in Japan)
Capacitor Made in Japan Made in Japan
Control system PLC(LS,made in South Korea) PLC(LS,made in South Korea
Rectifier diode Made in Germany Made in Germany
Silicon controlled rectifier Made in Germany Made in Germany
Cooling plate Made in South Korea Made in South Korea
Overall size(LxWxH) 2400x 2800x2000mm 3400 3300 2000mm
Net weight About 6 ton About 7 ton



Advantages:



Automatic Bottom Induction Brazing Machine For Pressure Cooker 0Automatic Bottom Induction Brazing Machine For Pressure Cooker 1Automatic Bottom Induction Brazing Machine For Pressure Cooker 2
