Sandwich Bottom Cookware Production Machine High Frequency Induction Heating Brazing

Brand Name:	Star Power
Model Number:	MB4140-ZD
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	100 Set/Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CU,ISO

Slide Stroke (mm):

400

Return Force (kN):

2000 KN

Machine Type:

Hydraulic Press Machine

System:

Servo

Voltage:

380V/220V Optional

Dimension(L*W*H):

2200*2400*4200mm

Weight (T):

3.5 T

Motor Power (kw):

30 Kw

Packaging Details:

metal frame with film

Highlight:

Sandwich Bottom Cookware Production Machine

Induction Cookware Production Machine

Brazing Cookware Production Machine

Product Description

sandwich bottom cookware pin copper brass power electric high frequency induction heating brazing machine

Product Description:

Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.

Quick Details:

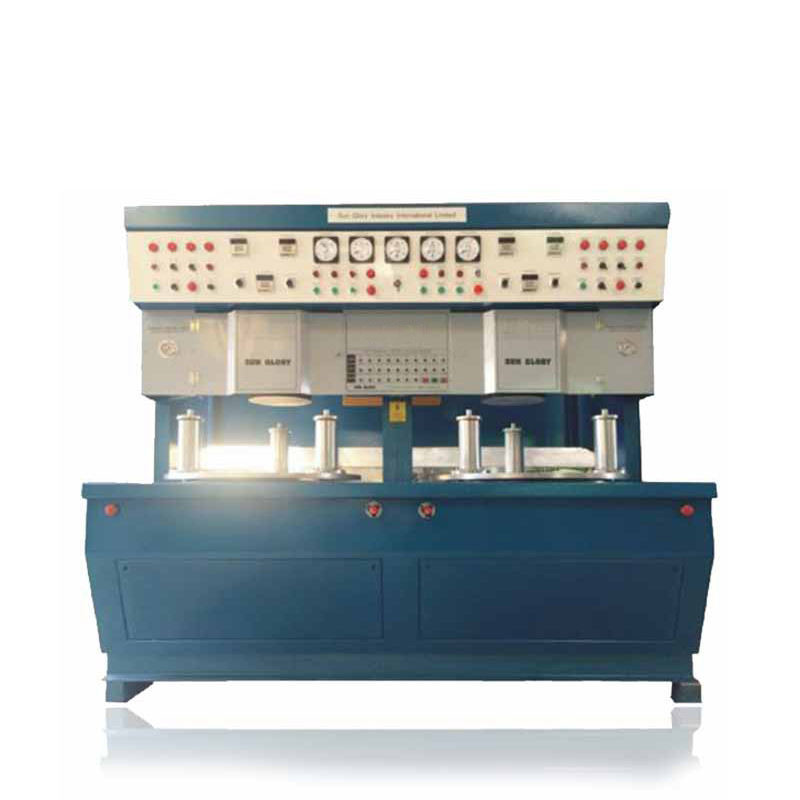

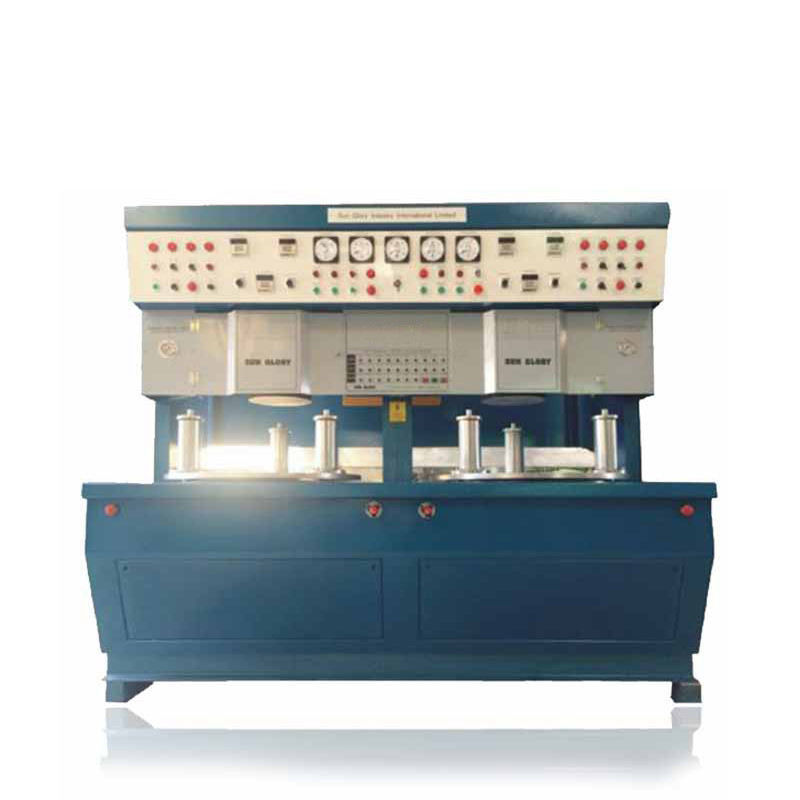

cookware bottom induction brazing machine is mainly used for cookware compound bottom welding of stainless steel pan, aluminum pot, pot, kettle,and also can be used for plane heating of other workpiece. Cookware Pan and pot bottom brazing machine is an mechanical, hydraulic and electrical integrated equipment controlled by several sets microcomputer. The main performance index takes the leading position at home and aboard.

Specifications:

Model	3B-25	3B-30	3B-40	3B-60	3B-80
Power	25KW	30KW	40KW	60KW	80KW
Input voltage	3P 380V 50/60Hz	3P 380V 50-60Hz	3P 380V 50-60Hz	3P 380V 50-60Hz	3P 380V 50-60Hz
Heating current	200-1200A	400-1500A	400-1800A	400-2400A	400-3200A
Cooling way	Water cooling	Water cooling	Water cooling	Water cooling	Water cooling
Brazing diameter	≤φ130mm	≤φ140mm	≤φ180mm	≤φ250mm	≤φ400mm
Aluminum thickness	1.5-2mm	1.5-2mm	1.5-2mm	1.5-2mm	1.5-2mm
Size (mm)	1800x1100x1800	1800x1100x1800	1800x1100x1800	1800x1100x1800	1800x1100x1800
weight	360KG	400KG	450KG	500KG	550KG

Advantages:

Sandwich Bottom Cookware Production Machine High Frequency Induction Heating Brazing 0
