Partial configuration table of hydraulic power machine
| project | YRK-6500SD | YRK-8000SD | YRK-10000SD | YRK-12000SD | ||
| Main oil cylinder nominal force | 20000 KN | 25000 KN | 30000 KN | 35000 KN | ||
| Maximum working pressure of the main oil cylinder | 80 Mpa | 80 Mpa | 80 Mpa | 80 Mpa | ||
| Maximum travel of the activity crossbeam | 450 MM | 450 MM | 500 MM | 500 MM | ||
| Effective area of worktable (lr*fb) mm² | 1400*1400 | 1400*1400 | 1500*1500 | 1600*1600 |
Specifications:
| Description | |

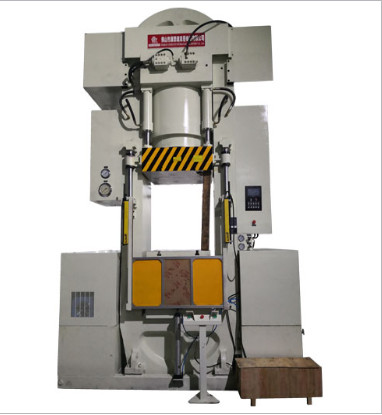

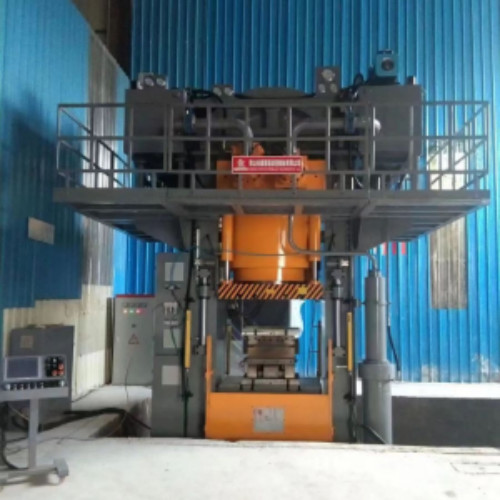

| Large tonnage hot and cold forging steel wire winding hydraulic press | |

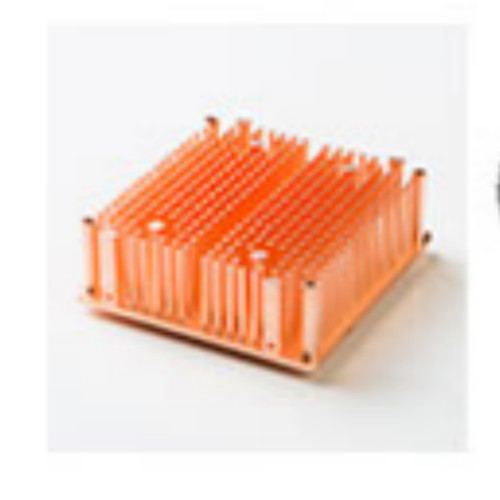

| Purpose: This equipment is suitable for cold and hot forging, precision forging, and extrusion forming processes of metal and non-ferrous metal materials. For example, forging and forming of large finned heat sinks, wireless base station heat dissipation plates, wheel hubs, and complex disc-shaped structural components. | |
| Advantage: safe operation. | |
| Operator: 1 person. | |
| Servo motor power(KW) | 181 |
| Rated Voltage(V) | 380 |
| Effective area of workbench (left and right * front and rear mm) | 1600*1600 |
| Return cylinder stroke (mm) | |
Active beam Lifting speed (mm/s) | |
| Active beam Lifting speed (mm/s) | Fast down: 200 |
| Active beam Lifting speed (mm/s) | Fast return :200 |
| Closed height (mm) | Max: 1300 |
| Closed height (mm) | Min: 800 |
| Cooling motor (KN) | 4 |
