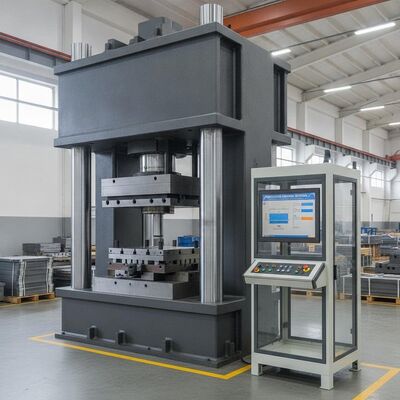

Industrial Heavy-Duty Hydraulic Press with Precision Control System for Metal Forming, Stamping & Assembly Operations
Product Description
The HP - 3150 Industrial Heavy-Duty Hydraulic Press is a high-performance equipment engineered for metal forming, stamping, assembly, and molding tasks across industries like automotive, aerospace, machinery manufacturing, and hardware production. Equipped with an advanced precision control system, it ensures stable pressure output and accurate position control, minimizing material waste and improving product quality.
Its robust steel frame provides exceptional load-bearing capacity and durability, withstanding long-term heavy-duty operations. The press features a user-friendly touchscreen interface, allowing operators to easily set parameters such as pressure, stroke speed, and dwell time. Safety is prioritized with emergency stop buttons, safety light curtains, and overload protection. Additionally, it supports customized tooling installation to meet diverse production needs, while low noise and energy-saving design contribute to a green and efficient working environment.
Key Attributes
| Attribute |
Value |
| System |
PLC |
| Oil pump type |
Multi pump |
| Main oil cylinder nominal force |
20000 KN |
| Maximum working pressure of the main oil cylinder |
80 Mpa |
| Maximum travel of the activity crossbeam |
250 MM |
Product Description
The HP-3150 Industrial Heavy-Duty Hydraulic Press is a high-performance equipment engineered for precision metal forming, stamping, assembly, and molding tasks across industries including automotive, aerospace, machinery manufacturing, and hardware production.
- Advanced precision control system ensures stable pressure output and accurate position control
- Robust steel frame provides exceptional load-bearing capacity and durability
- User-friendly touchscreen interface for easy parameter setting
- Comprehensive safety features including emergency stop buttons and safety light curtains
- Customizable tooling installation for diverse production needs
- Energy-efficient design with low noise operation
Hydraulic Power Machine Configuration
| Project |
YRK-2000S-8X |
YRK-2500S-8X |
YRK-3000S-8X |
YRK-3500S-8X |
YRK-4000S-8X |
YRK-5000S-8X |
| Main oil cylinder nominal force |
20000 KN |
25000 KN |
30000 KN |
35000 KN |
40000 KN |
50000 KN |
| Maximum working pressure |
80 Mpa |
80 Mpa |
80 Mpa |
80 Mpa |
80 Mpa |
80 Mpa |
| Maximum travel of crossbeam |
250 MM |
300 MM |
300 MM |
300 MM |
350 MM |
350 MM |
| Nominal strength of returned steel (KN) |
120 |
120 |
120 |
120 |
120 |
150 |
Technical Specifications
Type: Precision embossing steel wire winding hydraulic press
Purpose: Surface embossing and stamping of metals and precious metals
Common Materials: Gold, silver, nickel, copper, stainless steel
Servo motor power: 50 KW
Rated Voltage: 380 V
Workbench area: 750*550 mm
Return cylinder stroke: 50 mm
Beam lifting speed (work): 12 mm/s
Beam lifting speed (fast down/return): 260 mm/s
Closed height: Max: 750 mm, Min: 500 mm
Cooling motor: 4 KN
Main Accessories (Wearing Parts)
| Order No. |
TS |
Name |
Quantity |
Production Location |
| 1 |
SCR-160 |
Tuning module |
4 block |
|
| 2 |
WRNK-130 Φ5mm |
Thermocouple |
Four |
Zhaoqing, Guangdong |
| 3 |
AI518E3JO |
Intelligent digital display power control temperature control table |
One |
Xiamen udian |
