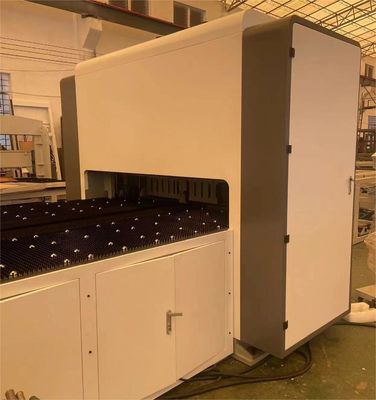

3.0m Sucker Type Bending Center Machine easily process sheet metal arc and dead - edge
The advantages of this bending machine for large size sheet metal are very obvious. It takes 3 people 2 minutes to produce a product with a traditional bending machine, and now it takes only half a minute to make one without workers.
Foshan is a famous metal manufacturing city with mature and advanced machine technology and reasonable prices,
Key accessories and brands:
| name | Brand manufacturers | explain |
| numerical control system | Joint development of the new Huichuan | Support for the 32-axis linkage |
| servo motor | Huichuan | The world's largest servo motor service provider |
| reduction box | Dongguan Quanyou Newcard | The only speed reducer that can do 6 arc seconds |
| bearing | Japan NACHI | High-precision bearing supplier |
| Silk bar and guide rail | Taiwan silver | Ensure that the linear feeding material is 0.1mm |
| pneumatic component | Taiwan Yker or Japan SMC | Famous Japanese brand |
| mould | independent research and development | Fine grinding, slow walking wire, can guarantee 0.02mm |
| sucker | Schmetz (S C H M A L Z) | Top suction equipment supplier |
| Delivery method | sucker |
| location mode | The three sides of the Y axis depend on the ruler |
| Adapt material | Stainless steel, aluminum plate, cold plate |
| The sheet is the most bushthickness | 0.15mm |
| The plate is the most built | Stainless steel 1.2mm, ordinary carbon steel plate 2.0mm, aluminum plate 3.5mm |
| External dimensions of sheet raw materials | Maximum of 30003000 mm |
| Minimum of 380-420 mm | |
| Plate requirements | The surface is smooth, the edge is no burr, and the opening size is accurate |
| The fastest bending speed | 0.3 Seconds / time |
| Maximum bend throat height | 180mm (customizable to 600mm) |
| rated voltage | 380V |
| Electric assembly power | ≈40KW |
| Average energy consumption | At 4KW / hour |
| noise | ≈50dB |
| outline dimension | 600x500x280 cm |
| gross mass | ≈18T |
| number of axles | Standard 10 axis |
| Automatic computer spell knife and scan code recognition | apolegamy |
Flexible bending center can be widely used in the field of steel cabinet shell (file cabinet, tool cabinet, electrical cabinet, communication cabinet, gas cabinet, water meter cabinet......)
Kitchen utensils (refrigerators, air conditioning, cookers, stainless steel kitchen cabinet, dishwashers, stainless steel wine cabinet......)
Furniture, ventilation equipment, refrigeration equipment, purification equipment, elevators and other related metal forming fields
This equipment can easily realize the circular arc, dead edge, back, closed, positive and negative edges and other complex sheet metal bending requirements.
This flexible bending center uses the universal bending mold, only a set of molds can complete all shapes of bending, the user does not need to customize the mold.
Description of the core components:
Box-cage welded bed body:
Using high standard 80mm thickened steel plate integral box cage structure, triangle interconnection design, after accurate finite element force analysis. The welding adopts CO2 full welding process. After the frame is welded, after high temperature annealing treatment and machining, which ensures the anti-distortion deformation of the bed body and the long micro stability for many years, with no risk of cracking. The appearance is ergonomic and beautiful.
■ processing technic
1. Eliminate stress treatment: castings and welding support table, multiple tempering, annealing and other heat treatment processes, to ensure long-term use without deformation.
2. Precision machining: Different tooling fixtures are designed for different workpieces, and the high-precision multi-axis machining center is used to refine the workpieces to ensure the consistency of the accuracy before and after the clamping.
3. Strict detection: using high precision micrometer, with high stability marble platform and marble ruler, accurate measurement for the workpiece, and strictly control the processing accuracy of each workpiece.
The system reserves a rich industrial 4.0 interface, which can dock with the robotic arm to realize automatic loading and unloading. With good system security and reliability, with complete self-diagnosis ability, to provide great flexibility for the equipment.
With the self-drive robot arm, it is in the same control system as the bending center. Change the workpiece without secondary programming. The system automatically generates the action program of the robot arm according to the bending command, which has higher efficiency and better coordination.
Sufficient spare parts inventory: provide users with complete parts inventory of parts, any parts, vulnerable parts can be replaced in time, to escort the daily production of users.
Provide 7*24 hours of after-sales online service, maximize the guarantee of users' daily production plan, after-sales problems worry worry.
Lifetime service: establish the unique coded user file of the equipment, track and record the applicable details of the equipment, and provide lifelong maintenance service for cooperative users.
