Automatic Manual Sink Production Line To Speed Up Production Efficiency And Quality

1 set

MOQ

Negotiable

Price

Automatic Manual Sink Production Line To Speed Up Production Efficiency And Quality

• Intelligent manual sink production line is a highly automated, integrated production system, mainly used for the production of high-quality manual sinks. Through advanced equipment and technology, it realizes the automatic production of the whole process from raw material processing to finished product packaging, greatly improving production efficiency and product quality, while reducing labor costs and labor intensity.
• High degree of automation: The entire production process from raw material processing to finished product packaging has basically realized automation, reducing manual intervention and improving production efficiency.
• Stable and reliable quality: Through advanced welding, grinding, polishing and other equipment, it ensures the welding quality, surface quality and dimensional accuracy of the sink, and improves the overall quality of the product.
• High production efficiency: compared with traditional manual production methods, intelligent production lines greatly shorten the production cycle and improve production efficiency.
• Strong flexibility: The production line can be adjusted and optimized according to different tank designs and speciications to meet dierse production needs

Advantages:

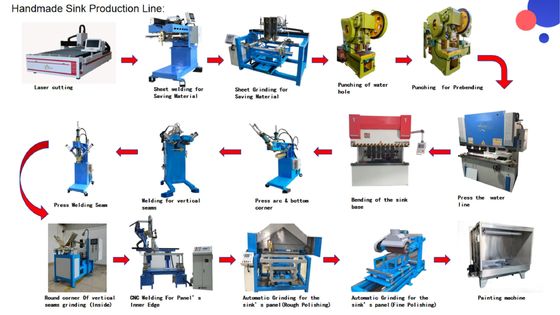

Process term

Process introduction

machine

Machine picture

Machine size

floor space

power
(Kw)

Consumption

Operators required

Capacity(daily output
)

Length(m)

Width(m)

power consumption(Kwh)

consumable material

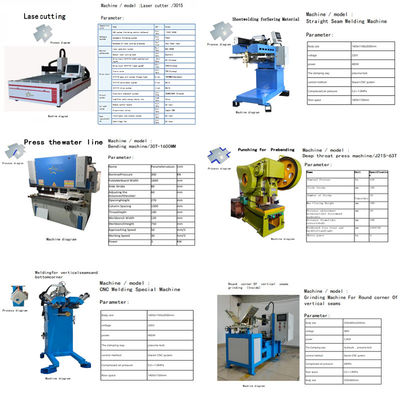

Process 1

Steel Coil Laser cutting

Laser cutter line

12000x2600x1950mm

2.6

160

Process 2

Sheet welding for Saving Material

Straight Seam Welding Machine

1400x1100x2000mm

1.4

1.1

0.4

Process 3

Sheet Grinding for Saving Material

Sheet Grinding Machine

2250x1550x1800mm

2.3

1.6

3.2

Process 4

Punching of water hole

Deep throat Press machine/J21S-40T

1500x1200x2000mm

1.5

1.2

Process 5

Punching for Prebending

Deep throat press machine/J21S-63T

1700x1400x2200mm

1.7

1.4

Process 6

Press the water line

Bending machine/30T-1600MM

2600x1400x2000mm

2.6

1.4

Process 7

Bending of the sink base

Bending machine/63T-2500MM

2800X1700X2350MM

2.8

1.7

5.5

Process 8

Press arc & bottom corner

Two-In-One Integrated Rolling Seam&Corner Pressing Machine

1300x750x2000mm

1.3

0.75

2.3

Process 9

Welding for vertical seams and bottom corner

CNC Welding Special Machine

1400x1100x2000mm

1.4

1.1

0.4

Process 10

Round corner Of vertical seams grinding (Inside)

Grinding Machine For Round corner Of vertical seams

2550x850x2200mm

2.6

0.85

2.3

Process 11

Repair the Panel's missing corners

CNC Welding Special Machine(for panel repair)

1100x850x1450mm

1.1

0.85

0.4

Process 12

CNC Welding For Panel’s Inner Edge

Multi-Axis CNC Welding Special Machine
(For panel’s inner edge)

1700x1400x1600mm

1.7

1.4

1.3

Process 13

Grinding for the sink’s panel

Grinding machine (Abrasive belt type)

2500x1400x1700mm

2.5

1.4

Process 14

Grinding for the sink’s panel(mirror surface)

Grinding machine

3000x1400x1700mm

1.4

Process 15

Painting For Sink Bottom Back Side

Manual painting equipment

2200X1800X1600mm

2.2

1.8

4.5

Process 16

Drying after Painting

Drying Oven

13000X1000X1600mm

200

Total floor space(Includ spaced distance and transportation route):>65m(Length)x 10m(Width)

Total power consumption:About500Kwh/Day

workers need:22 persons include backman

daily output:500 sinks
