PLC Controlled Joint and Angle Pressing Machine for High Precision and Smooth Welding Seams in the Kitchen Industry
Product overview
Joint pressing and Angle pressing machine is a kind of automatic equipment for stainless steel manual sink and other metal groove processing, can efficiently complete the weld flattening, corner shaping and other processes, widely used in kitchen sink, commercial star basin, medical sink and other fields.
functional characteristics
1. Efficient automatic processing: Equipment using PLC control system, simple operation, no professional technology, one person can operate multiple machines, high production efficiency. The running speed can be adjusted, and the welding seam flattening and corner shaping can be formed once to ensure the smooth and beautiful welding seam after processing .
2. High precision and stability: Equipment equipped with adjustable mold, can adapt to different process requirements, even if the workpiece has a micro deformation, but also to ensure the weld joint smooth. The unique positioning design and adjustable up and down Angle ensure that the product is not easy to deform during processing and the positioning is accurate.
3. Strong applicability: suitable for a variety of industries and products, such as stainless steel hand sink, commercial star basin, medical sink, dishwasher sink, etc., can also be used for other need to press tank and box.
Application scenario
Joint pressing and Angle pressing machine is mainly used for stainless steel manual sinks and other metal channels of weld flattening and corner shaping, especially suitable for rice gold corner rolling into R round edge process. It can significantly improve production efficiency, reduce labor costs, and improve product quality
Product Parameter
| Body size | 1300x750x1950mm |
| Voltage | 380V |
| Power | 2.3KW |
| The clamping way | Hydraulic pressure, and the pneumatic pressure is tight |
| Control method | PLC |
| Hydraulic pressure | 30MPa |
| Compressed air pressure | 0.5-1.0MPa |
| Floor space | 1300x750mm |
Product application
Medical industry, kitchen and bathroom, hardware office furniture, high-end customized cabinets, hotel kitchen equipment, hardware and electrical products, advertising signs, outdoor public facilities metal products, etc., suited for all types of boxes and R Angle welding at 90 degrees or so.
The detailed of product application
Medical sinks, stainless steel sinks, manually operated star basins for commercial kitchen appliances and utensils, custom integral ambry, stainless steel electric box electric cabinet box, farm equipment constant temperature water tank, wine casks, stainless steel tanks, medical equipment cabinets, air boxes, power boxes, dishwasher bladders, various cabinets, stainless steel mixing pools, Fire boxes, square LIDS, etc. Ideal for a wide range of box-shaped items as well as other businesses that produce accessories made of square plates.

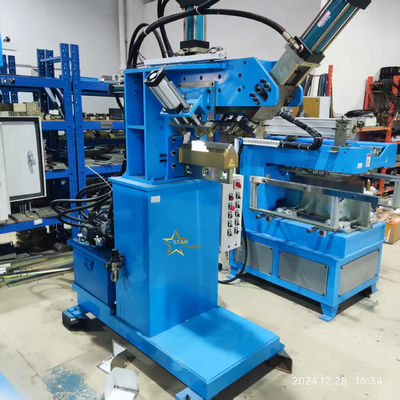

Product Detail

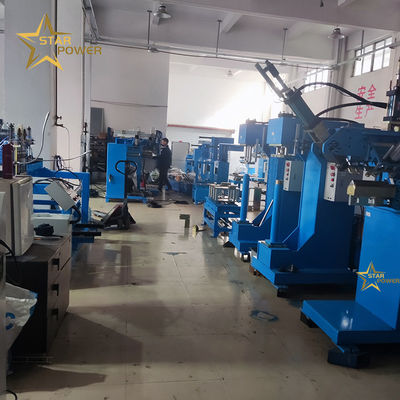

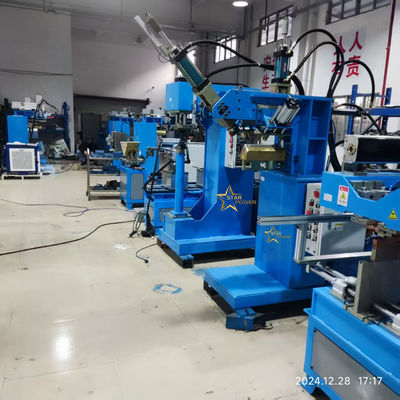

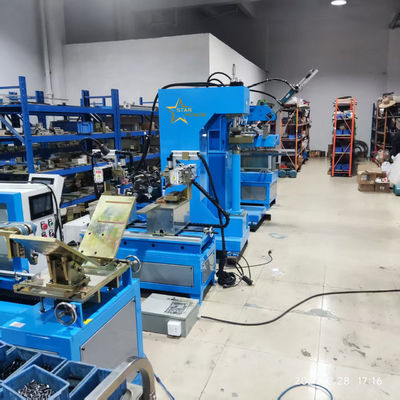

Production Line
Packing
Certifications
Delivery
After- sales Service
We are committed to providing you with all-round and high-quality after-sales service, so that you have no worries when using our products.
