Home /Products/Industrial Cleaning And Drying Equipment/Customized Spray-Type Stainless Steel Appliance Cleaning And Drying Equipment Production Line

Customized Spray-Type Stainless Steel Appliance Cleaning And Drying Equipment Production Line

1set
MOQ
Negotiate a price
Price
Customized Spray-Type Stainless Steel Appliance Cleaning And Drying Equipment Production Line
Features Gallery Product Description Request A Quote
Features
Specifications
Features: Automatic, High Efficiency
Supply Voltage: 380V ±10% 50HZ
Loading Height: 850mm Distance From The Floor
Conveyor Belt Conveying Speed: V=0. 5~3.0m/min ( Infinitely Adjustable)
Carrying Capacity Of Conveyor Belt: ≥50kg/m²
Cleaning Machine Inlet And Outlet Size: Width500mm, Height 330mm (the Distance From The Mesh Belt To The Nozzle Is About 300mm)
Cleaning Pressure: P≥350Kpa
Power: 40KW
External Dimensions Of Equipment (host): L4500*W1800*H2600 MM
Material: Stainless Steel
Highlight:

Customized Spray-Type Cleaning Equipment

,

Stainless Steel Cleaning Equipment

,

Appliance Cleaning Equipment
Basic Infomation
Place of Origin: China
Brand Name: Starpower
Certification: ISO9004, ISO9001
Model Number: KR-0876RTZ automatic ultrasonic cleaning machine
Payment & Shipping Terms
Packaging Details: wooden case
Delivery Time: 1-2 month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1set
Product Description
Customized Spray-Type Stainless Steel Appliance Cleaning And Drying Equipment Production Line

Working process:
Loading → Aerated pickling and rust removal → Ultrasonic chemical cleaning → Ultrasonic chemical cleaning → Ultrasonic water cleaning → Ultrasonic water cleaning + dehydration → Hot air drying → Hot air drying → Unloading.

Customized spray-type stainless steel appliance cleaning and drying equipment has a wide range of applications, mainly including the following aspects:
1. Kitchenware field
Stainless steel cookware: Whether it is frying pans, soup pots, frying pans or other types of stainless steel cookware, they can all be efficiently cleaned and dried through this equipment. The spraying system of the equipment can penetrate into every corner of the cookware to remove dirt such as oil stains and food residues and ensure that the cookware is as clean as new.
Tableware: Tableware such as stainless steel plates, bowls, spoons, chopsticks, etc. Customized spray-type equipment can quickly clean a large number of tableware and improve cleaning efficiency. At the same time, the drying function can prevent the residual moisture on the tableware from breeding bacteria and ensure the hygiene and safety of the tableware.
Kitchen appliance casings: For example, the casings of kitchen appliances made of stainless steel such as microwave ovens, ovens, and disinfection cabinets are easily contaminated with oil stains and dust during use. This equipment can comprehensively clean and dry these casings to keep the appearance of electrical appliances clean and prolong the service life of electrical appliances.
2. Hotel and catering industry
Hotel tableware: Hotels need to clean a large number of tableware every day. Customized spray-type stainless steel appliance cleaning and drying equipment can meet the high cleaning volume requirements of hotels. Its efficient cleaning and drying functions can ensure the rapid turnover of tableware and provide guarantee for the hotel's catering services.
Kitchen equipment: Stainless steel stoves, workbenches, shelves and other equipment in hotel kitchens will accumulate oil stains and dirt after long-term use. This equipment can deeply clean and dry these equipments to keep the kitchen clean and hygienic and meet food hygiene standards.
Restaurant tableware: Stainless steel tableware in restaurants also needs frequent cleaning. Customized spray-type equipment can provide efficient cleaning solutions for restaurants and improve the service quality of restaurants.

3. Food processing industry
Food processing utensils: In the food processing process, stainless steel knives, cutting boards, blenders and other utensils used need to be cleaned frequently to ensure the safety and hygiene of food. Customized spray-type equipment can thoroughly clean and dry these utensils to prevent the growth of bacteria.
Food transportation containers: Food transportation containers made of stainless steel are easily contaminated during transportation. This equipment can clean and dry the containers to ensure the hygiene and safety of food during transportation.
Food processing equipment parts: Stainless steel parts of food processing equipment, such as conveyor belts, rollers, stirring shafts, etc., can also be cleaned and dried through this equipment to maintain the normal operation of the equipment and improve production efficiency.
4. Industrial field
Stainless steel parts: In industrial production, many stainless steel parts need to be cleaned and dried to ensure product quality. Customized spray-type equipment can be designed according to the shapes and sizes of different parts to meet the needs of industrial cleaning.
Instrument casings: The stainless steel casings of some precision instruments and meters need to be cleaned. This equipment can clean and dry without damaging the casing to ensure that the performance of the instrument and meter is not affected.

Laboratory utensils: Stainless steel utensils in the laboratory, such as petri dishes, test tubes, beakers, etc., need to be kept clean and sterile. Customized spray-type equipment can provide reliable cleaning and drying services for the laboratory to meet experimental requirements.

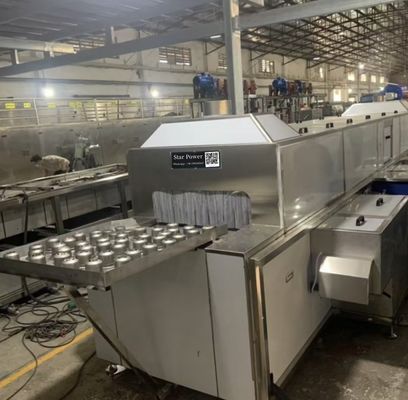

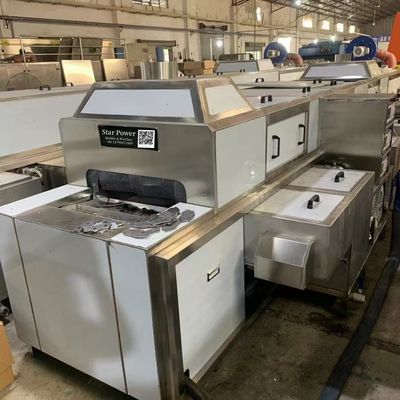

Customized Spray-Type Stainless Steel Appliance Cleaning And Drying Equipment Production Line 0

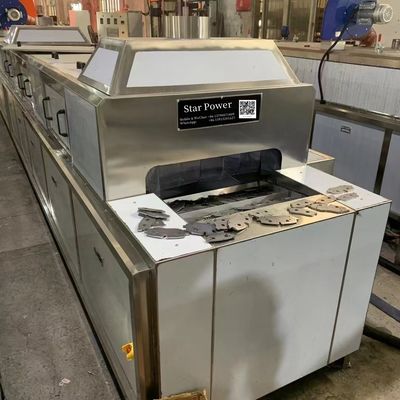

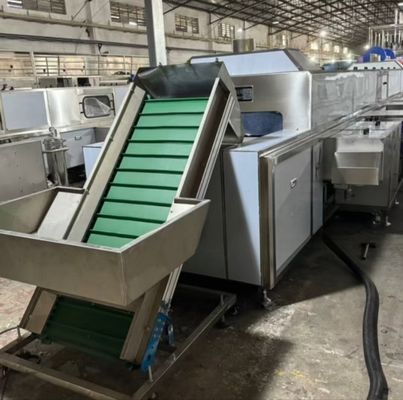

Customized Spray-Type Stainless Steel Appliance Cleaning And Drying Equipment Production Line 1





Equipment Parameters:

Tank Body
Structure		 Internal effective size Inner tank size: L2600×W1400×H500mm
Approximate overall size: L2850W1650H750mm (subject to the actual size)
Heating method Electric heating 12KW
Material The inner tank adopts "SUS304" 2.5mm Zhangjiagang Posco stainless steel plate.
The non-radiating surface adopts SUS304 T = 2.0mm, and the outer door panel adopts 1.0mm stainless steel.
Outer frame of the cleaning tank It is fabricated by welding stainless steel 40401.5 square tubes, with a sturdy and durable structure.
Structure The ultrasonic transducers are adhered to the bottom of the tank (bottom vibration type), and four corner wheels are configured at the bottom.
Ultrasonic transducer Adopt imported wafer transducers of "HESEN" brand and imported bonding technology. The total number of ultrasonic transducers is 200, with a frequency of 28KHZ and 60W each.
  Total ultrasonic power 12KW


Time control



 It is built-in in the generator and the time is adjustable from 0 to 999 minutes.
Power supply system Ultrasonic generator The generator adopts 4 sets of internationally leading IGBT modules and power tubes for control to ensure strong and stable output power. Xiantai's unique sweeping frequency technology ensures no dead corners in cleaning.
It has functions such as continuously adjustable power, sweeping frequency, timing adjustment, start/stop, etc.
Component part All are imported high-quality components.
Other   Configure a dedicated control box rack. There are two independent generators placed on the control box rack.
The ultrasonic power cord is 3 meters long.
After-sales服务sevre Transport
The equipment is warranted for one year and maintained for life.
