Name: Customizable Ultrasonic Technology Cleaning And Drying Equipment Production Line
Brand: Foshan Star Power Technology Co.Ltd
SKU: KR-0876RTZ automatic ultrasonic cleaning machine
Price: 50,002.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Features: Automatic, High Efficiency

Supply Voltage: 380V ±10% 50HZ

Loading Height: 850mm Distance From The Floor

Conveyor Belt Conveying Speed: V=0. 5~3.0m/min ( Infinitely Adjustable)

Carrying Capacity Of Conveyor Belt: ≥50kg/m²

Cleaning Machine Inlet And Outlet Size: Width500mm, Height 330mm (the Distance From The Mesh Belt To The Nozzle Is About 300mm)

Cleaning Pressure: P≥350Kpa

Power: 40KW

External Dimensions Of Equipment (host): L4500*W1800*H2600 MM

Material: Stainless Steel

Highlight:

Ultrasonic Technology Drying Equipment

Customizable Ultrasonic Cleaning Equipment

Ultrasonic Technology Cleaning Equipment

Basic Infomation

Place of Origin: China

Brand Name: Starpower

Certification: ISO9004, ISO9001

Model Number: KR-0876RTZ automatic ultrasonic cleaning machine

Payment & Shipping Terms

Packaging Details: wooden case

Delivery Time: 1-2 month

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 1set

Gallery

Customizable Ultrasonic Technology Cleaning And Drying Equipment Production Line

Product Description

Customizable Ultrasonic Technology Cleaning and Drying Equipment Production Line

Working process:

Loading → Aerated pickling and rust removal → Ultrasonic chemical cleaning → Ultrasonic chemical cleaning → Ultrasonic water cleaning → Ultrasonic water cleaning + dehydration → Hot air drying → Hot air drying → Unloading.

The customizable ultrasonic technology cleaning and drying equipment production line has a wide range of application scenarios, mainly including the following aspects:
I. Automotive manufacturing industry

Cleaning and drying of automotive parts: Metal parts such as engine blocks, cylinder heads, crankshafts, pistons, and connecting rods will leave a large amount of impurities such as oil stains and chips during the processing. The ultrasonic cleaning and drying equipment production line can efficiently remove these impurities, ensure the cleanliness of parts, and improve product quality and reliability.
Cleaning of automotive interiors: Interior components such as car seats, carpets, and instrument panels are prone to accumulate dust and stains during use. Ultrasonic cleaning and drying equipment can deeply clean these components and restore their original cleanliness and beauty.
II. Electronic and electrical industry
Cleaning of electronic components: Electronic components such as circuit boards, chips, and connectors need to be strictly cleaned during the production process to remove impurities such as solder slag, flux, and oil stains to prevent adverse effects on the performance of electronic devices. Ultrasonic cleaning and drying equipment can achieve high-precision cleaning and ensure the quality and reliability of electronic components.
Cleaning of electrical appliance casings: Electrical appliance casings such as televisions, refrigerators, and washing machines will be contaminated with impurities such as oil stains and dust during the production process. Ultrasonic cleaning and drying equipment can quickly and effectively remove these impurities and improve the appearance quality of products.
III. Machining industry
Cleaning of mechanical parts: Various mechanical parts will produce impurities such as oil stains and iron chips during processing and assembly. Ultrasonic cleaning and drying equipment can efficiently remove these impurities, improve the cleanliness of parts, and extend the service life of mechanical equipment.
Cleaning of cutting tools: Cutting tools used in machining will wear after a period of use and need to be cleaned and sharpened. Ultrasonic cleaning and drying equipment can quickly remove oil stains and chips on cutting tools and provide good conditions for tool sharpening.
IV. Medical device industry
Cleaning of medical devices: Medical devices such as surgical instruments, dental instruments, and syringes need to be strictly cleaned and disinfected after use to prevent cross-infection. Ultrasonic cleaning and drying equipment can achieve efficient and non-destructive cleaning and ensure the cleanliness and safety of medical devices.
Cleaning of medical equipment parts: Various parts in medical equipment, such as sensors, pump bodies, and valves, need to be cleaned during production and maintenance. Ultrasonic cleaning and drying equipment can meet the cleaning requirements of these parts.
V. Aerospace industry
Cleaning of aviation parts: Aviation parts such as aircraft engine blades, turbine disks, and landing gears need to be cleaned with high precision during manufacturing and maintenance to ensure their performance and safety. Ultrasonic cleaning and drying equipment can deeply clean these parts and remove impurities such as oil stains and chips.
Cleaning of spacecraft parts: Various parts in spacecraft need to maintain a high degree of cleanliness during manufacturing and assembly. Ultrasonic cleaning and drying equipment can provide a reliable solution for cleaning spacecraft parts.
VI. Other industries
Cleaning of optical instruments: Optical instruments such as eyeglass lenses, optical lenses, and camera lenses need to be finely cleaned during production and maintenance to ensure their optical performance. Ultrasonic cleaning and drying equipment can achieve non-destructive cleaning of these optical instruments and improve product quality.
Cleaning of jewelry: Jewelry will be contaminated with impurities such as oil stains and dust during wearing and processing. Ultrasonic cleaning and drying equipment can quickly and effectively remove these impurities and restore the original luster and beauty of jewelry.
In conclusion, the customizable ultrasonic technology cleaning and drying equipment production line has a wide range of application scenarios and can meet the cleaning and drying needs of various workpieces in different industries.

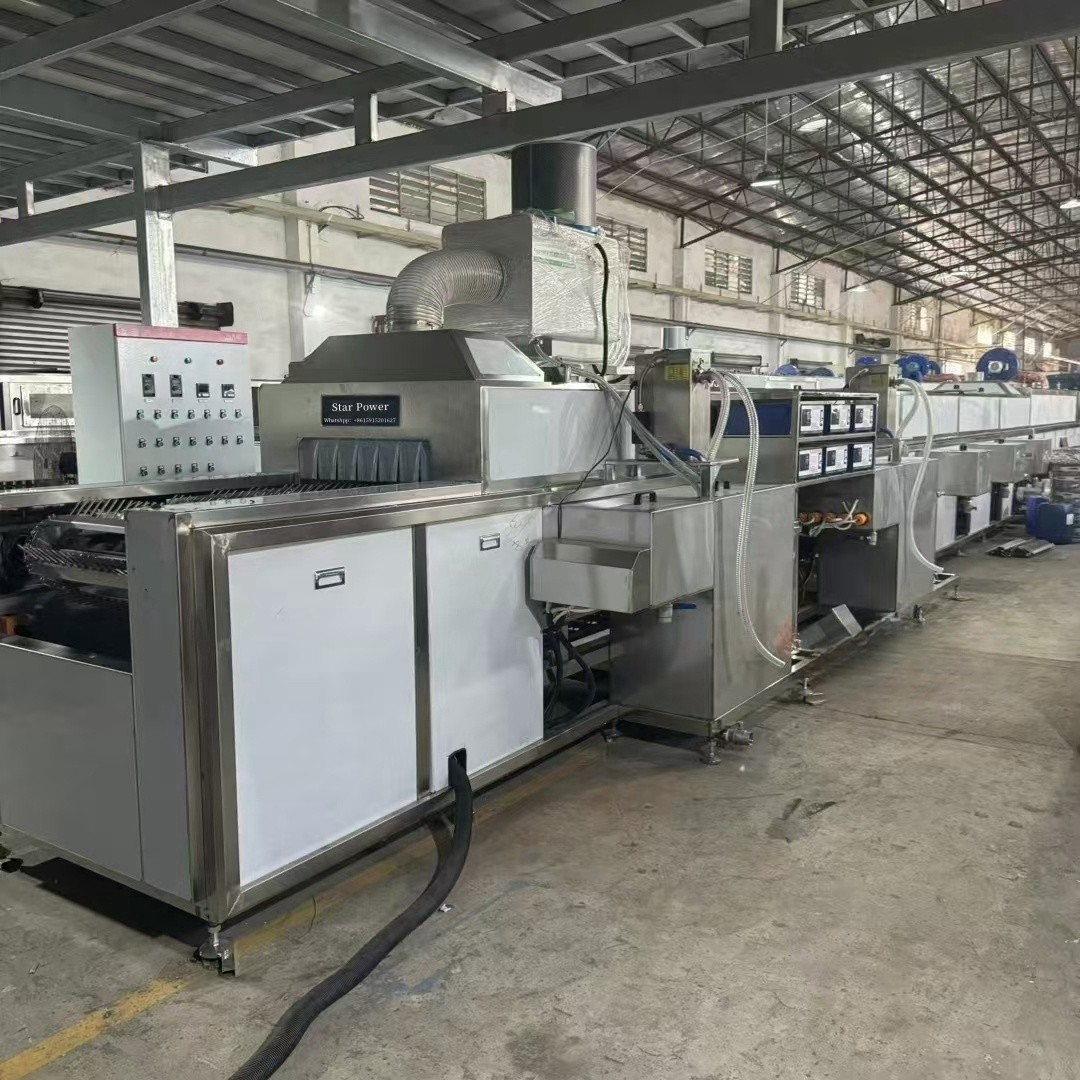

Customizable Ultrasonic Technology Cleaning And Drying Equipment Production Line 0

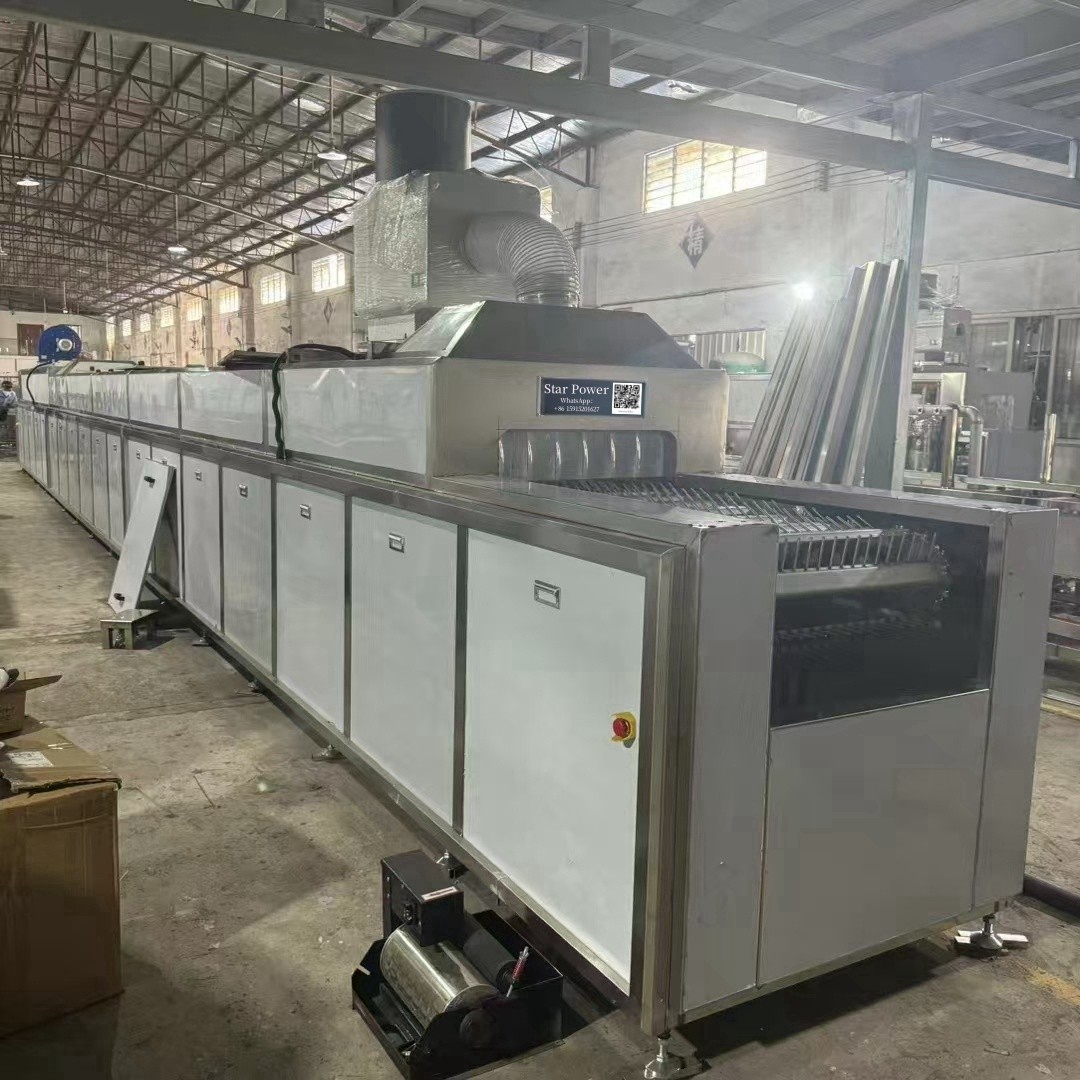

Customizable Ultrasonic Technology Cleaning And Drying Equipment Production Line 1

Equipment Parameters:

Tank Body Structure	Internal effective size	Inner tank size: L2600×W1400×H500mm Approximate overall size: L2850W1650H750mm (subject to the actual size)
	Heating method	Electric heating 12KW
	Material	The inner tank adopts "SUS304" 2.5mm Zhangjiagang Posco stainless steel plate. The non-radiating surface adopts SUS304 T = 2.0mm, and the outer door panel adopts 1.0mm stainless steel.
	Outer frame of the cleaning tank	It is fabricated by welding stainless steel 40401.5 square tubes, with a sturdy and durable structure.
	Structure	The ultrasonic transducers are adhered to the bottom of the tank (bottom vibration type), and four corner wheels are configured at the bottom.
	Ultrasonic transducer	Adopt imported wafer transducers of "HESEN" brand and imported bonding technology. The total number of ultrasonic transducers is 200, with a frequency of 28KHZ and 60W each.
	Total ultrasonic power	12KW
	Time control	It is built-in in the generator and the time is adjustable from 0 to 999 minutes.
Power supply system	Ultrasonic generator	The generator adopts 4 sets of internationally leading IGBT modules and power tubes for control to ensure strong and stable output power. Xiantai's unique sweeping frequency technology ensures no dead corners in cleaning. It has functions such as continuously adjustable power, sweeping frequency, timing adjustment, start/stop, etc.
Power supply system	Component part	All are imported high-quality components.
Other		Configure a dedicated control box rack. There are two independent generators placed on the control box rack. The ultrasonic power cord is 3 meters long.
After-sales服务sevre	Transport
After-sales服务sevre	The equipment is warranted for one year and maintained for life.
