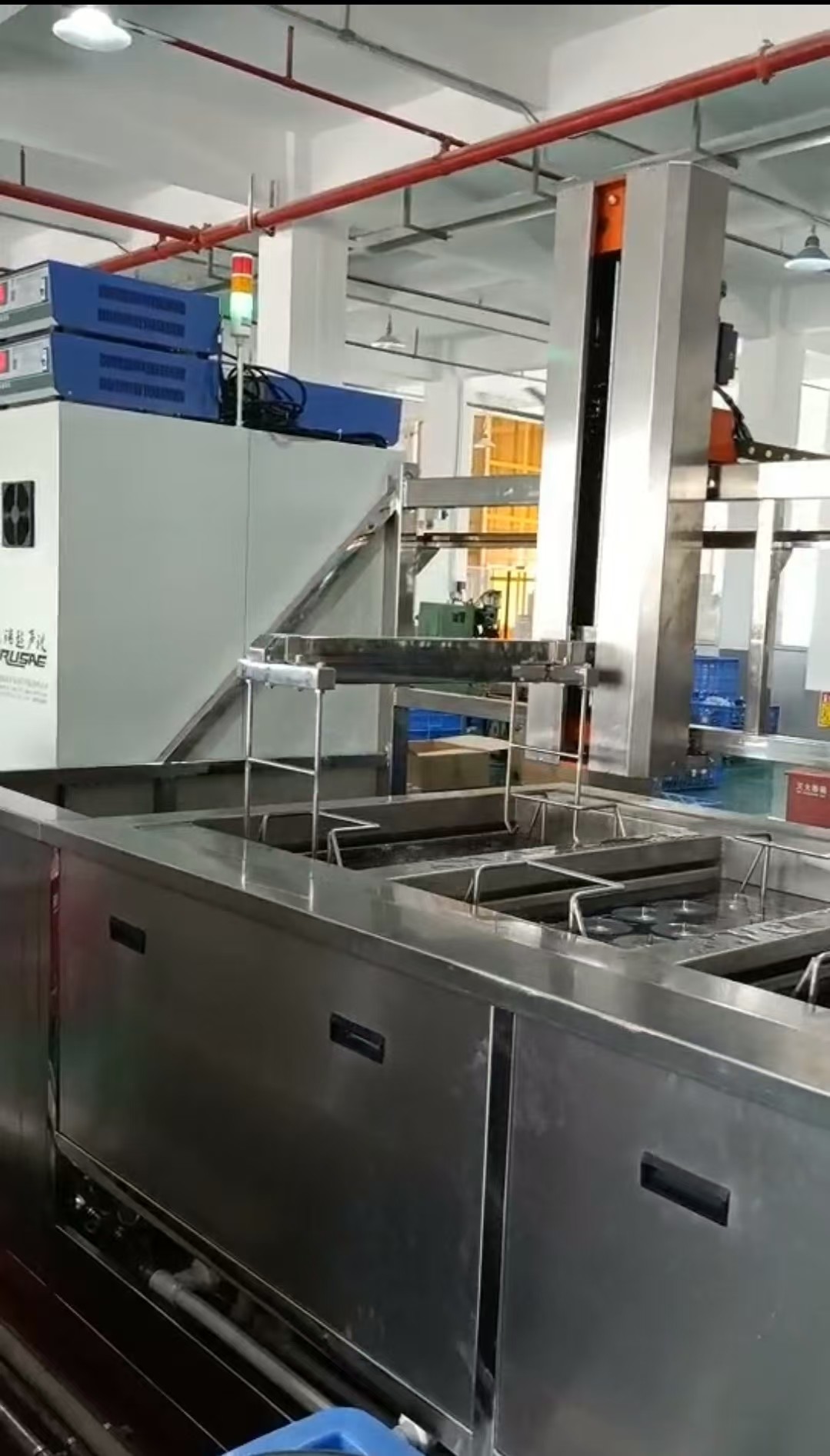

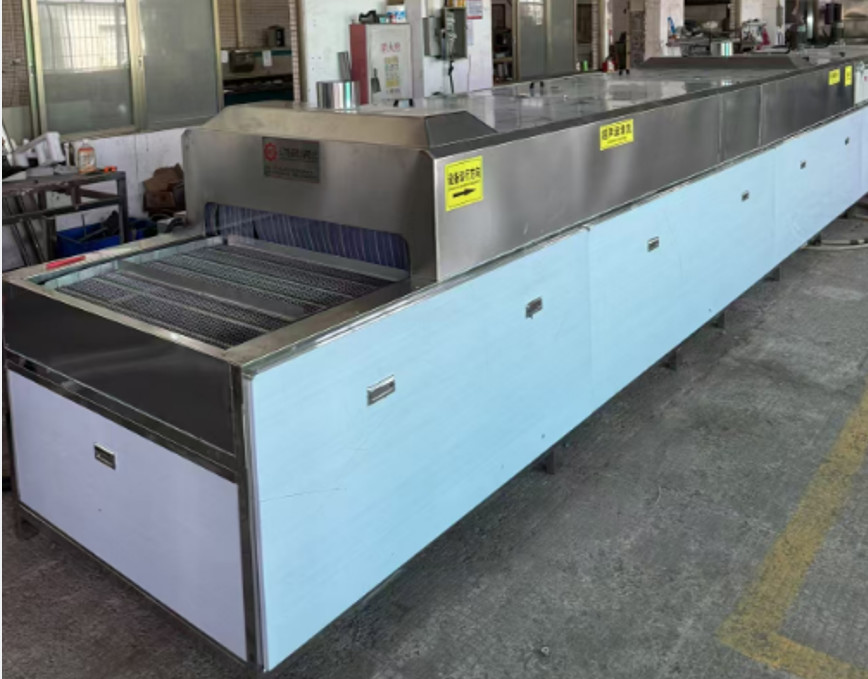

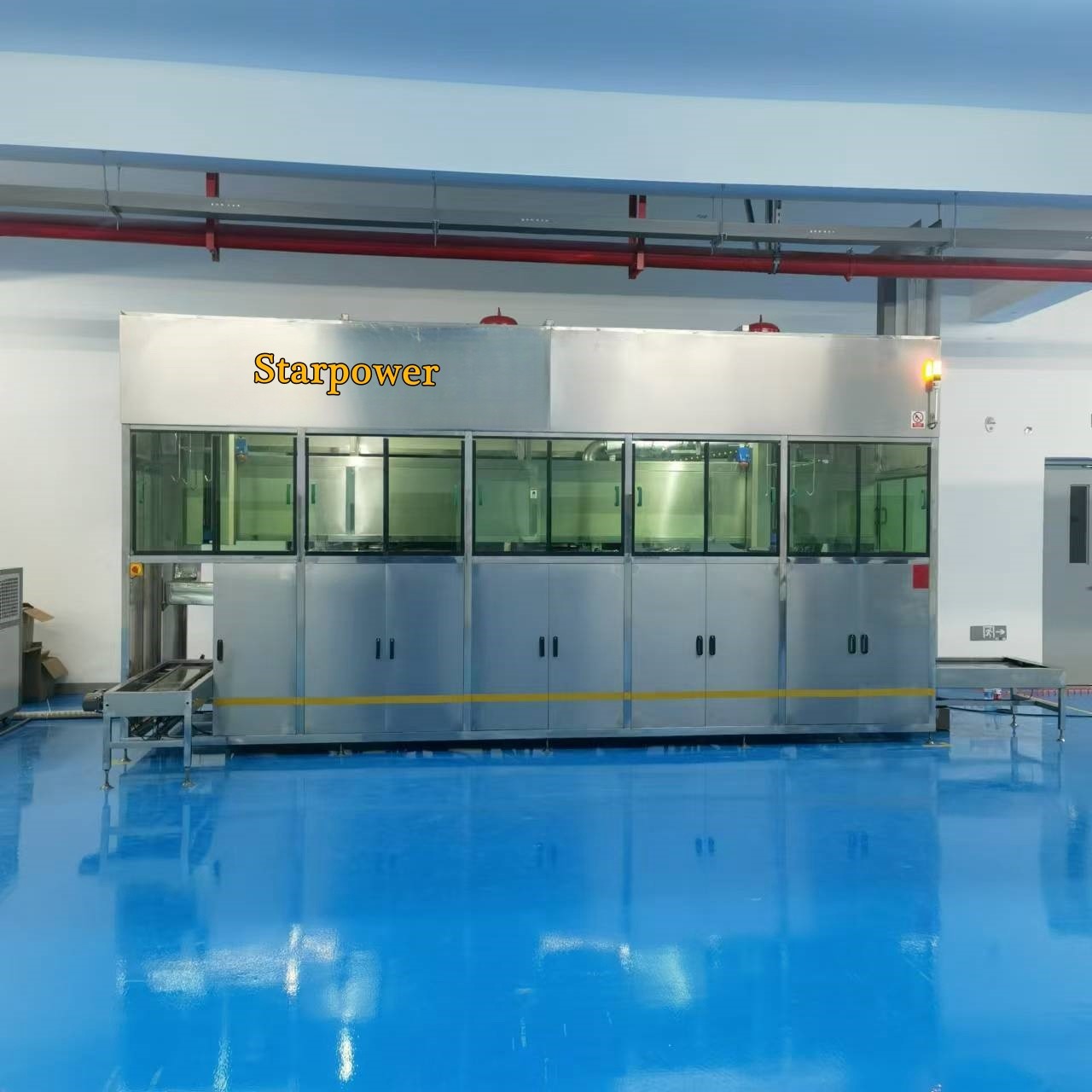

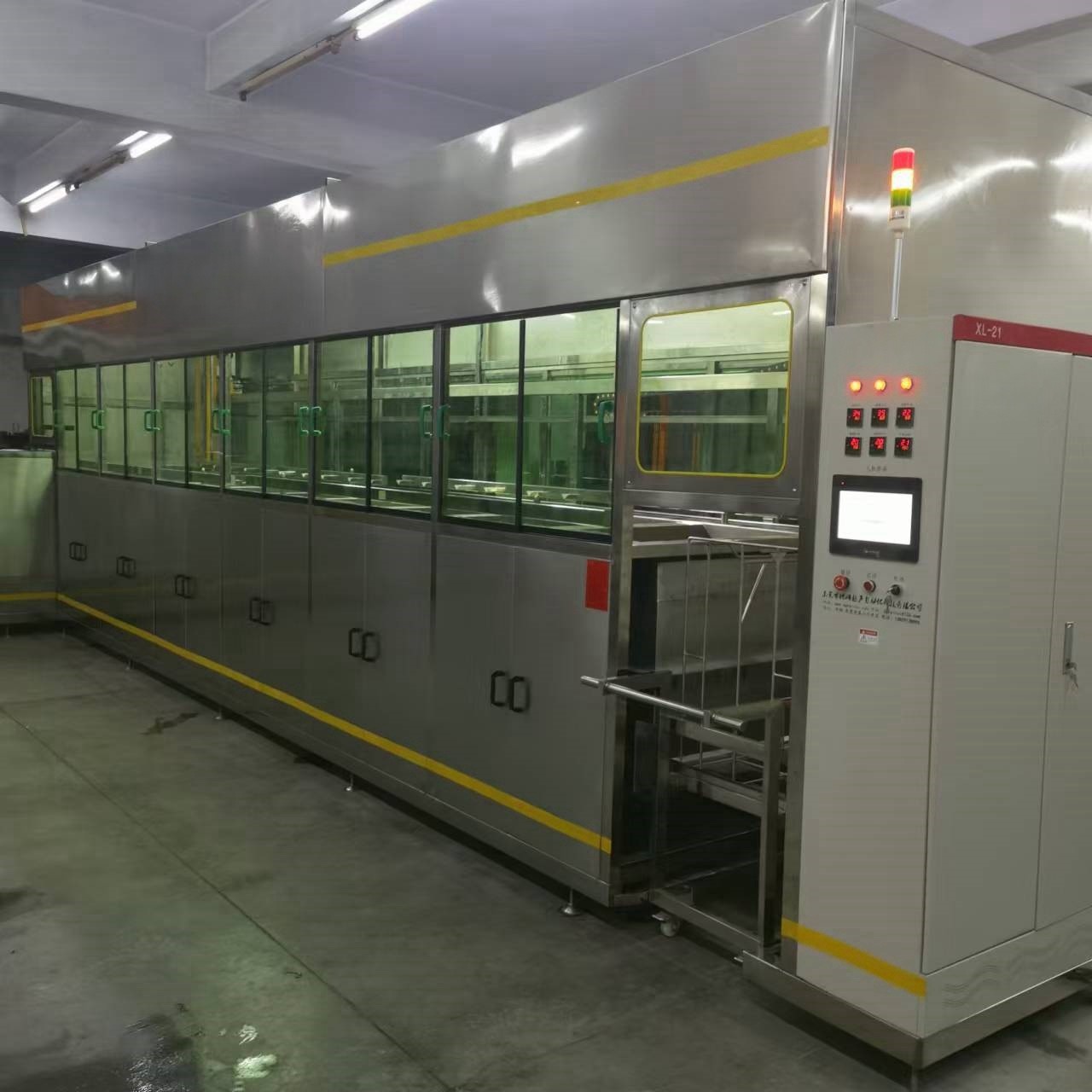

Industrial Cleaning And Drying Equipment with Ultrasonic Technology for Precision Metal Parts
Working process: Loading → Aerated pickling and rust removal → Ultrasonic chemical cleaning → Ultrasonic chemical cleaning → Ultrasonic water cleaning → Ultrasonic water cleaning + dehydration → Hot air drying → Hot air drying → Unloading.
Introduction to application scenarios of industrial cleaning and drying equipment with ultrasonic technology for precision metal parts:
This type of equipment is widely used in various fields due to its excellent cleaning and drying performance for precision metal parts.
In the electronics industry, it is essential for cleaning and drying tiny metal components such as integrated circuit pins, connectors,
and metal casings. The ultrasonic cleaning can remove dust, flux residues, and other contaminants without damaging the delicate parts,
ensuring the reliability and performance of electronic products. In the aerospace industry, precision metal parts such as engine components,
turbine blades, and landing gear parts require extremely high cleanliness. The ultrasonic cleaning and drying equipment can effectively clean
these parts, removing oil, grease, and metal shavings, and ensuring the safety and performance of aircraft. In the medical device industry,
precision metal parts used in surgical instruments, implants, and diagnostic equipment need to be thoroughly cleaned and sterilized. The
ultrasonic technology can achieve deep cleaning and drying, meeting the strict hygiene and quality requirements of the medical field. In the
watchmaking and jewelry industries, delicate metal parts such as watch movements, gears, and jewelry settings can be cleaned and dried using
this equipment. The gentle yet effective cleaning process ensures the beauty and functionality of these high-precision items. Moreover, in the
automotive industry, precision metal parts such as fuel injectors, sensors, and engine valves can be cleaned and dried to improve engine
performance and reliability. In general, the industrial cleaning and drying equipment with ultrasonic technology for precision metal parts is
widely applicable in industries that require high cleanliness and precision, playing an important role in ensuring product quality and performance.
Equipment Parameters:
Tank Body
Structure |
Internal effective size |
Inner tank size: L2600×W1400×H500mm
Approximate overall size: L2850W1650H750mm (subject to the actual size) |
| Heating method |
Electric heating 12KW |
| Material |
The inner tank adopts "SUS304" 2.5mm Zhangjiagang Posco stainless steel plate.
The non-radiating surface adopts SUS304 T = 2.0mm, and the outer door panel adopts 1.0mm stainless steel. |
| Outer frame of the cleaning tank |
It is fabricated by welding stainless steel 40401.5 square tubes, with a sturdy and durable structure. |
| Structure |
The ultrasonic transducers are adhered to the bottom of the tank (bottom vibration type), and four corner wheels are configured at the bottom. |
| Ultrasonic transducer |
Adopt imported wafer transducers of "HESEN" brand and imported bonding technology. The total number of ultrasonic transducers is 200, with a frequency of 28KHZ and 60W each. |
| |
Total ultrasonic power |
12KW |
| |
Time control
|
It is built-in in the generator and the time is adjustable from 0 to 999 minutes. |
| Power supply system |
Ultrasonic generator |
The generator adopts 4 sets of internationally leading IGBT modules and power tubes for control to ensure strong and stable output power. Xiantai's unique sweeping frequency technology ensures no dead corners in cleaning.
It has functions such as continuously adjustable power, sweeping frequency, timing adjustment, start/stop, etc. |
| Component part |
All are imported high-quality components. |
| Other |
|
Configure a dedicated control box rack. There are two independent generators placed on the control box rack.
The ultrasonic power cord is 3 meters long. |
| After-sales服务sevre |
Transport |
|
| The equipment is warranted for one year and maintained for life. |
