Improve Production Efficiency Industrial Cleaning And Drying Equipment

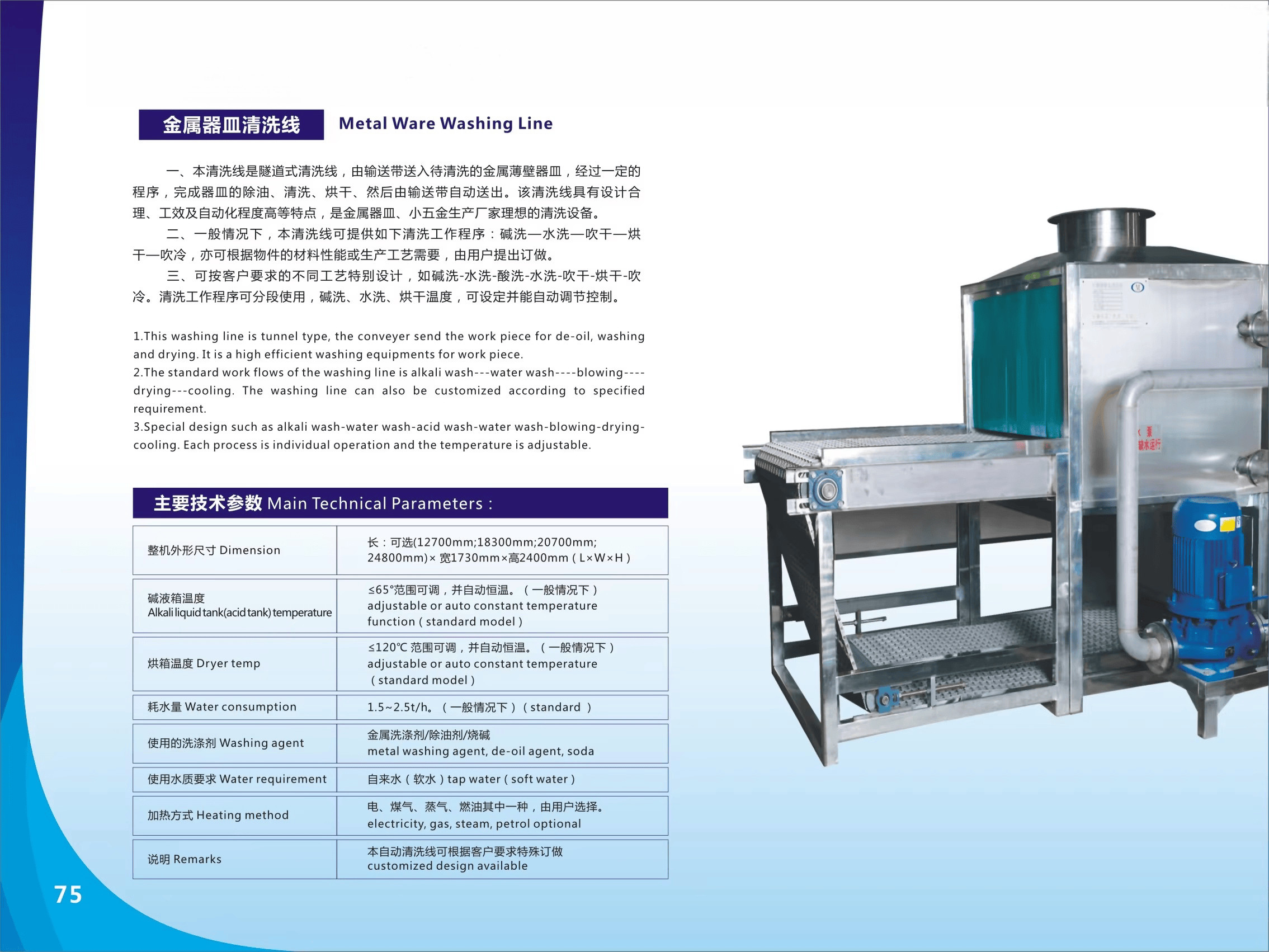

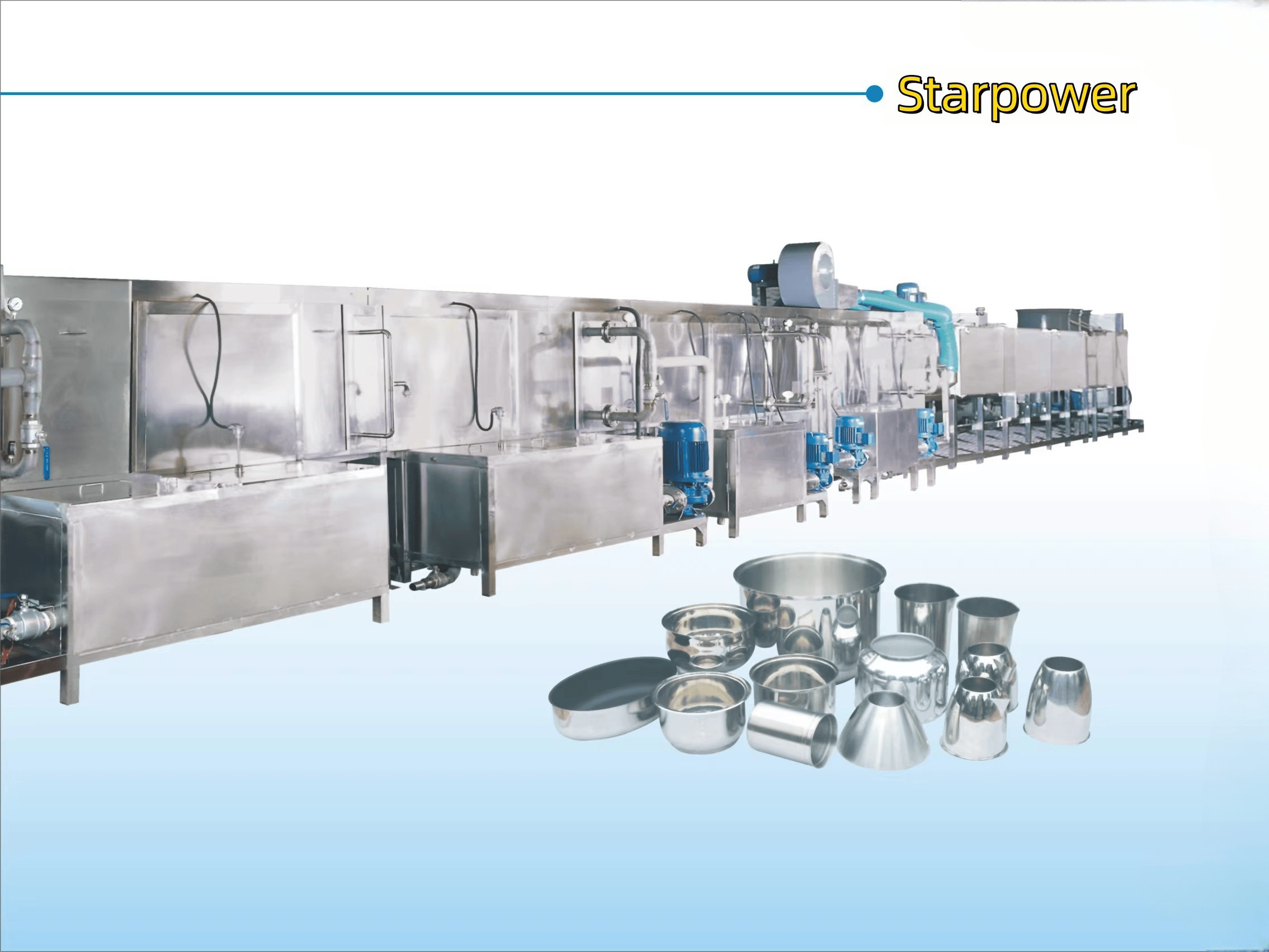

The metalware cleaning and drying line is a device specially used for cleaning and drying metalware.
I. Working principle

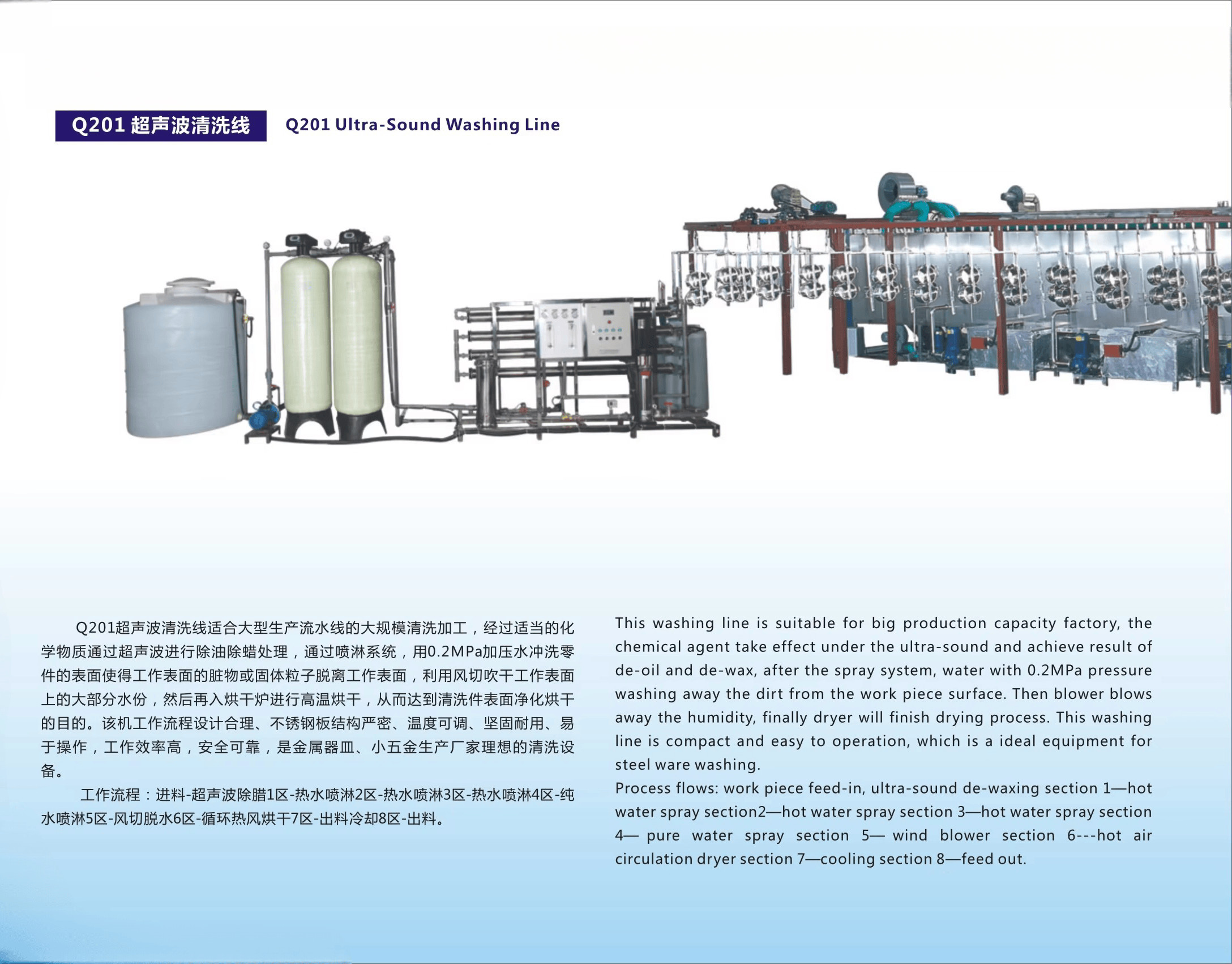

In the cleaning process, methods such as high-pressure spraying and ultrasonic cleaning are usually adopted. Water or specific cleaning agents are used to remove dirt, oil stains and other impurities on the surface of metalware. For drying, methods such as hot air circulation and infrared heating are generally used to quickly evaporate the residual moisture on the surface of the ware and make the ware reach a dry state.
II. Main components
1. Cleaning system: including spraying devices, ultrasonic generators, etc., responsible for efficient cleaning of metalware.
2. Conveying system: such as conveyor belts, which convey metalware through various cleaning and drying stages in sequence.
3. Drying system: composed of heating devices and ventilation equipment to ensure that the ware can be dried quickly.
4. Control system: used to control the operating parameters of the entire cleaning and drying line, such as cleaning time, temperature, and conveying speed.
III. Advantages
1. Improve cleaning efficiency: Compared with traditional manual cleaning, the cleaning and drying line can quickly process a large number of metalware, saving time and labor costs.
2. Ensure cleaning quality: Adopting advanced cleaning technology can thoroughly remove various dirt and make the metalware have a high degree of cleanliness.
3. High degree of automation: Reduces manual operations, reduces labor intensity, and also improves production safety.
4. Energy saving and environmental protection: Some cleaning and drying lines use energy-saving heating and ventilation equipment to reduce energy consumption and are friendly to the environment.



Equipment Parameters:

Tank Body Structure	Internal effective size	Inner tank size: L2600×W1400×H500mm Approximate overall size: L2850W1650H750mm (subject to the actual size)
	Heating method	Electric heating 12KW
	Material	The inner tank adopts "SUS304" 2.5mm Zhangjiagang Posco stainless steel plate. The non-radiating surface adopts SUS304 T = 2.0mm, and the outer door panel adopts 1.0mm stainless steel.
	Outer frame of the cleaning tank	It is fabricated by welding stainless steel 40401.5 square tubes, with a sturdy and durable structure.
	Structure	The ultrasonic transducers are adhered to the bottom of the tank (bottom vibration type), and four corner wheels are configured at the bottom.
	Ultrasonic transducer	Adopt imported wafer transducers of "HESEN" brand and imported bonding technology. The total number of ultrasonic transducers is 200, with a frequency of 28KHZ and 60W each.
	Total ultrasonic power	12KW
	Time control	It is built-in in the generator and the time is adjustable from 0 to 999 minutes.
Power supply system	Ultrasonic generator	The generator adopts 4 sets of internationally leading IGBT modules and power tubes for control to ensure strong and stable output power. Xiantai's unique sweeping frequency technology ensures no dead corners in cleaning. It has functions such as continuously adjustable power, sweeping frequency, timing adjustment, start/stop, etc.
	Component part	All are imported high-quality components.
Other		Configure a dedicated control box rack. There are two independent generators placed on the control box rack. The ultrasonic power cord is 3 meters long.
After-sales服务sevre	Transport
	The equipment is warranted for one year and maintained for life.
