Product Description:
How to decompose multilayer metal composite waste efficiently?
By waste coil separation and recovery line. Put the waste coils into the vehicle-type annealing furnace for tempering for 2.5 hours with 3 rolls per batch, take them out and put them into the cold water tank for sudden cooling, the three layers of steel are pre-separated; Then place the pre-separated waste rolls on the winding machine, and the three layers are automatically peeled off and wound into three different rolls of different materials. Unique and innovative solutions to improve waste separation efficiency and quality. Covers an area of about 21m long *5m wide.

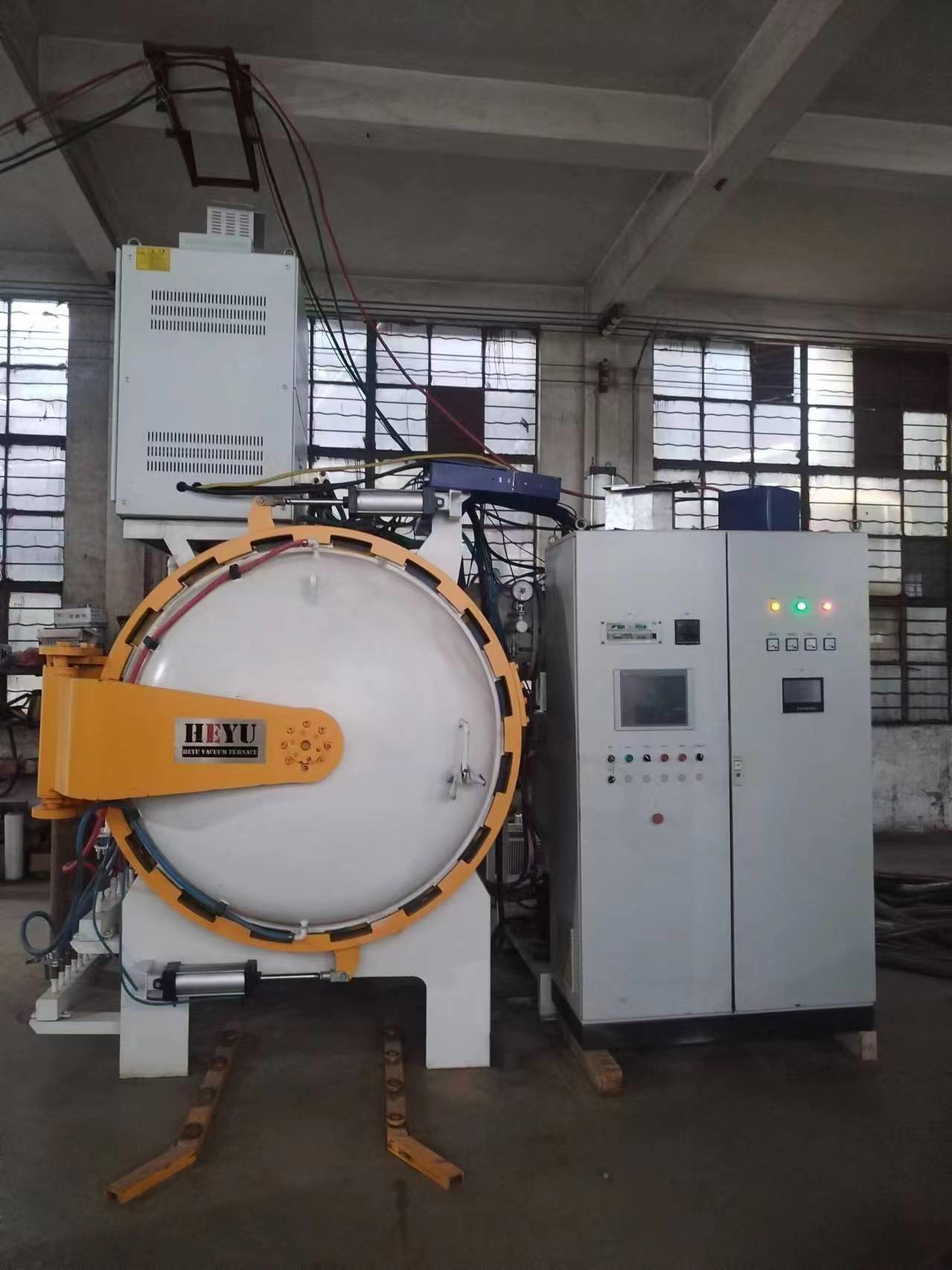

This series of vehicle-type annealing furnace, mainly used for metal composite material heating separation, annealing, and mold steel tempering drying treatment.
Main technical parameters and requirements of the equipment
● Heating rated power: 360kw
● Rated voltage: 380V
● Phase number: 3 phases
● Number of heating sections: use 4 independent heating segments
● Heating element connection method: using double Y connection method
● Rated temperature: 650℃
● Operating temperature: 600℃
● Maximum primary furnace capacity: 20 tons
● Furnace temperature uniformity: the furnace temperature uniformity in the effective heating area is ± 7.5℃
● Temperature control accuracy: ± 2℃
● Control mode: PID adjustment (phase shifting),
● Furnace size: 4640 (length) 1500 (width) 1500 (height) mm;
● Working size of the trolley: 4500 (length) 1500 (width) 1500 (height) mm;
● Size of the pool: 5500 (long) 2000 (wide) 2000 (high mm;
● Fan power: 3.0KW 4 sets,´
● 5 KW trolley transmission mechanism 1;.5´
● Furnace door lifting motor power: 3KW self-locking with brake motor
● Heating time of empty furnace: empty furnace heating to 500℃ 100min; (loading heating time is about 6 hours)
● Electric cabinet control: using touch screen control, design RS485 communication line to connect to the computer, the computer can check the process temperature and process curve.
● Appearance color of equipment: (provided by Party A, attachment added)
● The rail length is 24 meters.
Allocation list of the furnace body part
| order number |
Package number / item number description |
Specifications and models | quantity | Manufacturer name |
| 1 | furnace body | 1 | ||
| 2 | trolley | 1 | ||
| 3 | Aluminum silicate fiber cotton | STD | 1 | Shanxi Baojie fire-resistant thermal insulation material |
| 4 | heating element | 0Cr25Al5 resistance band, internal ceramic string sleeve fixed | 1 | Shanghai tree green |
| 5 | Furnace fan | 3.0KW | 4 | |
| 6 | Truck with force cycloidal motor | 5.5KW | 1 | |
| 7 | Went line motor with power of furnace door | 3KW | 1 | |
| 8 | Electric cabinet control box | 1 | ||
| 9 | pond | 1 |
| order number | ts | name | quantity | place of production |
| 1 | SCR-160 | Tuning module | 4 block | |
| 2 | WRNK-130 Φ5mm | thermocouple | Four | Zhaoqing, Guangdong |
| 3 | AI518E3JO | Intelligent digital display power control temperature control table | One | Xiamen udian |
