63Ton2.5m CNC Bending Machine Kitchen Sink Making Machinery

1 set
MOQ
Negotiable
Price
63Ton2.5m CNC Bending Machine Kitchen Sink Making Machinery
Features Gallery Product Description Request A Quote
Features
Specifications
AC: 380v
Size: 2600x1600x2530mm
Electricity: 50/60Hz
Work Efficiency: About 45s/bowl
Weight: 9800KG
Length: 2500mm(max Bend Length)
Power: 7500W
Pressure: 6300KN
High Light:

Kitchen Sink Making CNC bending machine

,

2.5m CNC bending machine

,

63Ton CNC bending machine

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU, ISO
Model Number: SP-009
Payment & Shipping Terms
Packaging Details: Seaworthy Packing
Delivery Time: 30-50 working days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Year
Product Description

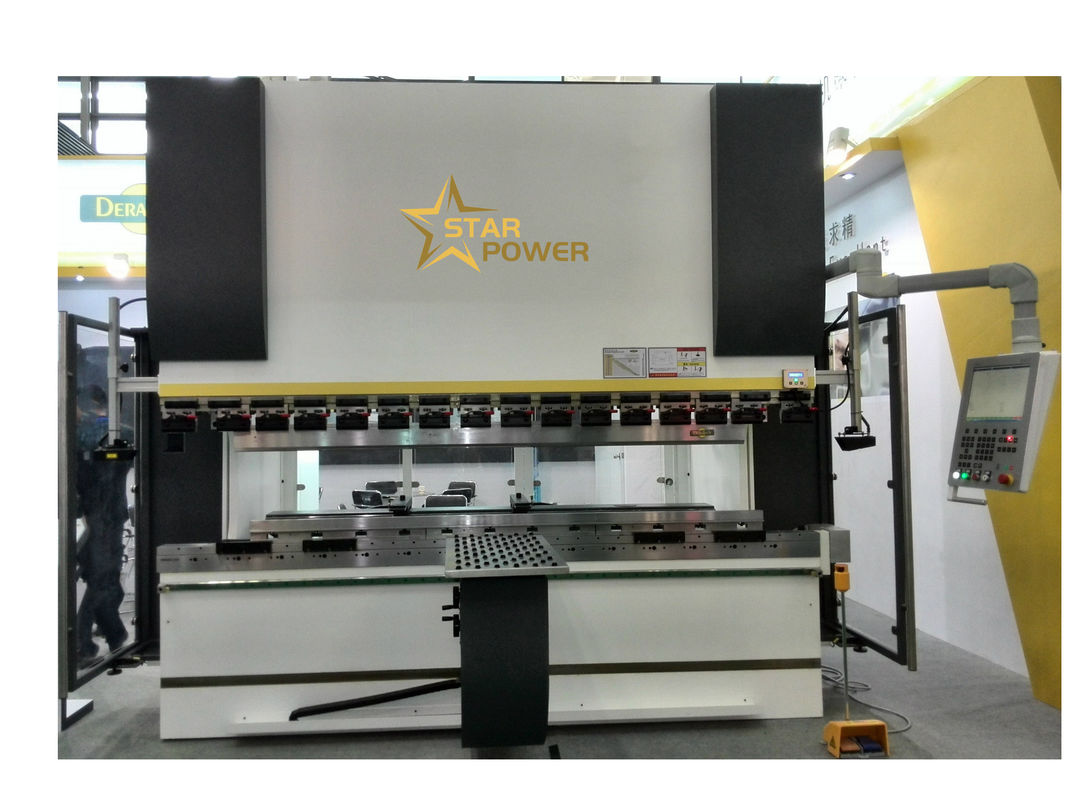

63Ton2.5m CNC bending machine Kitchen Sink Making Machinery



FBT-63T / 2500 Twisted shaft synchronous CNC bending

technical document

1. technical parameter:



Machine model FBT -63T/2500
The nominal force 630 kN
Bend length 2500 mm
Distance between columns 2000 mm
Throat depth 300 mm
slide stroke 100 mm
open height 685mm
Slider fast down speed 100mm/s
Slider return speed 80mm/s
Slider working speed 10mm/s
Power of main motor 5.5 KW
Back block X-axle travel 500mm
Control system TP10S
Control axes 2 Axis
Work table type Same-center workbench




2. function Introduction

1,10.2-inch HD touch screen: low power consumption, high performance, intuitive and simple.



2, intelligent operating system: complete functions, humanized, intuitive, simple and easy to learn, maximize

Shorten the operator's training cycle.



3. Manual quick positioning of single products.



4. Angle programming function.



5. Direct programming function.

6. Control of slider position, and measurement of slider position with high precision.

7. Automatic calculation of the sheet metal extension value.

8, the rear pulled bending function.

9, simple parameter modification function, and there are two correction mode selection.



10. Product storage function: 100 product programs (each product program has 20 procedures) and expanded according to the requirements.

11. Adjustable slider return height: the opening height of the slider in each bending process can be programmed independently to improve production efficiency.

12. Control system: TP 10 S



  • Technical features



  • Hydraulic Valve: Haimen Xinli-XINLI

2. Oil cylinder: seal Japan NOK, using rolling technology, the thinnest surface coating can also reach 0.12 ㎜, with high wear resistance.

3. Each component of the frame adopts steel plate welded structure, after tempering treatment and vibration aging treatment, eliminate the deformation caused by welding stress and processing stress, and ensure the accuracy and durability of the machine tool.

4. The fuselage adopts an integral welded structure for easy transportation. The whole processing of large floor boring machine can ensure the accuracy of the machine tool.

5. The fuselage, slider and other important components are analyzed by ANSYS finite element analysis software to ensure the reliability of the machine tool.



6. The cylinders at both ends are placed on both columns to drive the slide directly; so the machine is simple and rigid.

The slider is synchronized by torsion shaft force, and can withstand certain partial load; the slider adopts frame structure, strong rigidity,

High strength and small deformation.

7. The upper mold is equipped with the upper mold inclined iron accuracy compensation mechanism, which can make the workpiece achieve high bending accuracy

8. Rear gear and slider travel values are displayed on the display screen

9. This hydraulic system can realize the rapid decline of the slide, slow decline, advance speed bending, rapid return and emergency stop of the slide in the upward and downward process.

10. Electrical control is centralized and reliable, specifically as follows:

The power facilities are located in the fuselage, which are controlled and realized through the touch screen of the control panel.

Equipped with a foot switch, which can be operated through its direct bending action, convenient and quick.

Overload and short circuit of the motor are protected by the air switch.

11. Die material: 42 CrMo



4. configure



1 numerical control system TP10S
2 hydraulic pressure system Haimen Xinli-XINLI
3 Motor Yao da
4 gear pump HONGYI
5 electrical equipment Schneider; Omron
6 source Taiwan; Ming Wei
7 seal components Japan NOK
8 mould bulk heat treatmetn
9
10





5. Delivery details:

1. Hydraulic sheet metal CNC bending machine, model: FBT-63T / 2500mm one set



2. Random attachments:

1 ground mat   1 set
2 back block   4pcs
3 foot pedal   1pcs





3. Random tools:

1 oil gun   1 pcs
2 Special wrench for the machine   1 set





5. Conditions to be provided by users for using the machine tool

1. Power supply: 380V ± 10%, 50 HZ.

2. Ambient temperature: 5~38℃ (working temperature).

3. Ambient humidity: the relative humidity is 20 ~ 80% RH.

4. Stay away from the strong vibration source and the electromagnetic interference source.

5. No harmful and corrosive gas, no dust.



6. Delivery time is 15-20 days
