Features

Specifications

Type: CNC Welding Machine

Power: 4 KW

Voltage: 380 V

The Clamping Way: Pneuma-lock

Compressed Air Pressure: 0.2-1.0 MPa

Body Size: 1400*1100*2000 Mm

HS Code: 85159000

Control Method: Starart CNC System

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: Star Power

Certification: CU,ISO

Model Number: SP-9004

Payment & Shipping Terms

Packaging Details: metal frame with film

Delivery Time: 1 month

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 100 Set/Sets per Month

Gallery

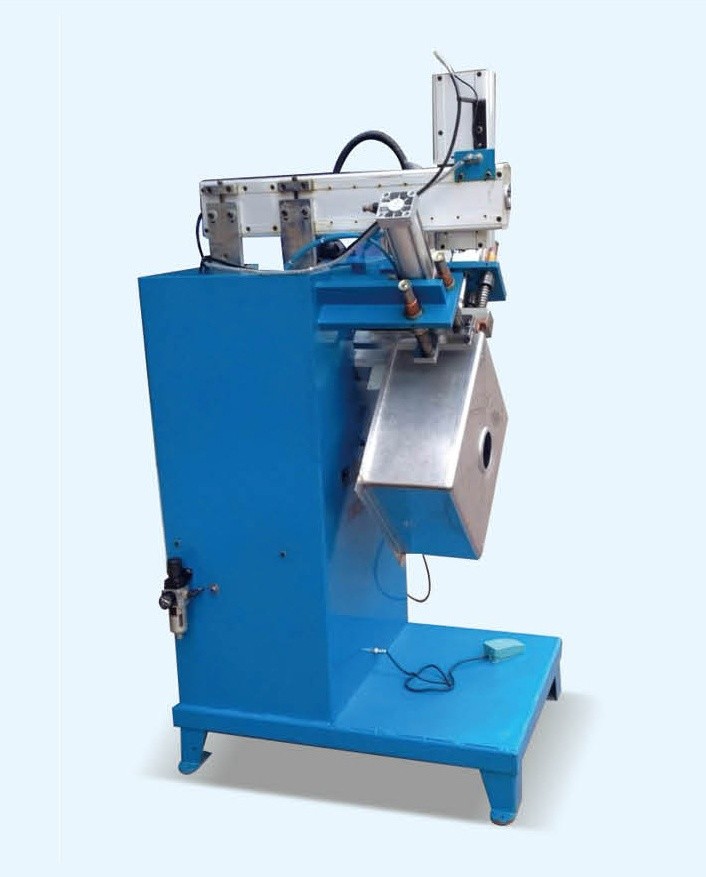

Automated Numerical Control Welding Machine for Stainless Steel Sink Splicing

Product Description

Automated Numerical Control Welding Machine for Stainless Steel Sink Splicing

Precautions for Operating the Automated Numerical Control Welding Machine for Stainless Steel Sink Splicing:

Equipment Inspection
Before each operation, be sure to check whether the power and gas source connections of the welding machine are firm and whether there are any leakage phenomena.
Confirm that the mechanical components of the welding machine move flexibly without jamming or abnormal noises.
Parameter Setting
According to the material, thickness and splicing requirements of the stainless steel sink, accurately set parameters such as welding current, voltage and welding speed.
It is strictly forbidden to change the set parameters at will to avoid affecting the welding quality.
Workpiece Preparation
The surface of the stainless steel sink to be spliced should be clean and free of oil stains, water stains, rust, etc.
Check the size and shape of the splicing part of the sink to ensure it meets the welding requirements.
Operation Safety
Operators must wear personal protective equipment such as protective glasses and gloves.
During the welding process, it is strictly forbidden to touch the working welding head and high-temperature components to prevent burns.
Welding Process Monitoring
Pay close attention to the arc stability and weld formation during the welding process.
If any abnormality is found, the welding should be stopped immediately, and the cause should be found and the problem solved before continuing.
Equipment Maintenance
After the welding work is completed, the welding slag and debris on the welding machine should be cleaned in time.
Regularly maintain the welding machine, check the wear of vulnerable parts and replace them in time.
Environmental Requirements
Keep the operating environment dry and well-ventilated, and avoid using the welding machine in a humid or flammable environment.
Ensure that the working area has sufficient lighting to clearly observe the welding situation.

Specifications:

Process term	Process introduction	machine	Machine size	floor space		power (Kw)
Process term	Process introduction	machine	Machine size	Length(m)	Width(m)	power (Kw)
Process 1	Steel Coil Laser cutting	Laser cutter line	12000x2600x1950mm	17	2.6	45

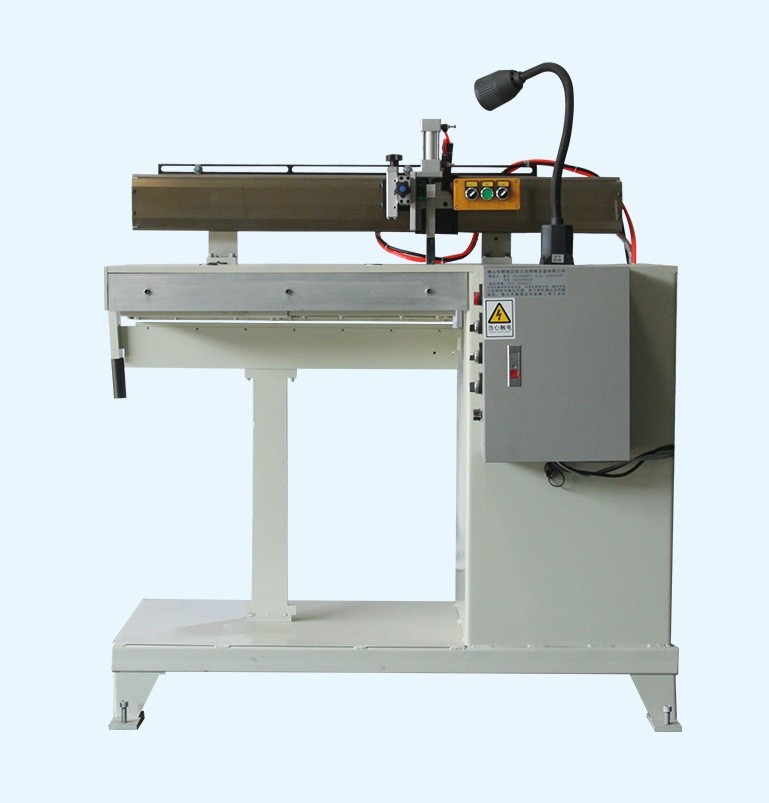

Process 2	Sheet welding for Saving Material	Straight Seam Welding Machine	1400x1100x2000mm	1.4	1.1	0.4
Process 3	Sheet Grinding for Saving Material	Sheet Grinding Machine	2250x1550x1800mm	2.3	1.6	3.2
Process 4	Punching of water hole	Deep throat Press machine/J21S-40T	1500x1200x2000mm	1.5	1.2	4
Process 5	Punching for Prebending	Deep throat press machine/J21S-63T	1700x1400x2200mm	1.7	1.4	4
Process 6	Press the water line	Bending machine/30T-1600MM	2600x1400x2000mm	2.6	1.4	3
Process 7	Bending of the sink base	Bending machine/63T-2500MM	2800X1700X2350MM	2.8	1.7	5.5
Process 8	Press arc & bottom corner	Two-In-One Integrated Rolling Seam&Corner Pressing Machine	1300x750x2000mm	1.3	0.75	2.3

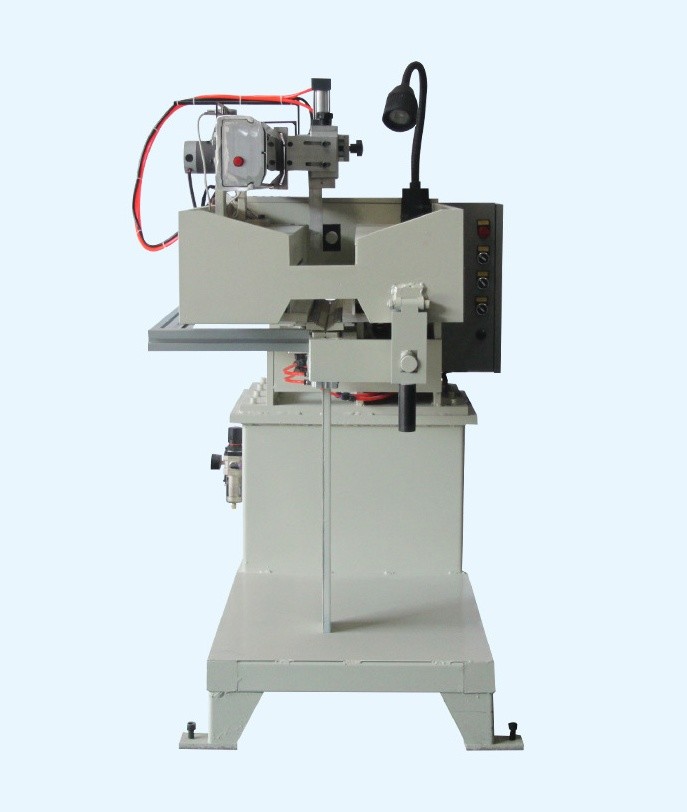

Process 9	Welding for vertical seams and bottom corner	CNC Welding Special Machine	1400x1100x2000mm	1.4	1.1	0.4
Process 10	Round corner Of vertical seams grinding (Inside)	Grinding Machine For Round corner Of vertical seams	2550x850x2200mm	2.6	0.85	2.3
Process 11	Repair the Panel's missing corners	CNC Welding Special Machine(for panel repair)	1100x850x1450mm	1.1	0.85	0.4
Process 12	CNC Welding For Panel's Inner Edge	Multi-Axis CNC Welding Special Machine (For panel's inner edge)	1700x1400x1600mm	1.7	1.4	1.3
Process 13	Grinding for the sink's panel	Grinding machine (Abrasive belt type)	2500x1400x1700mm	2.5	1.4	3
Process 14	Grinding for the sink's panel(mirror surface)	Grinding machine	3000x1400x1700mm	3	1.4	3
Process 15	Painting For Sink Bottom Back Side	Manual painting equipment	2200X1800X1600mm	2.2	1.8	4.5
Process 16	Drying after Painting	Drying Oven	13000X1000X1600mm	13	1	30
Total floor space(Includ spaced distance and transportation route):>65m(Length)x 10m(Width)

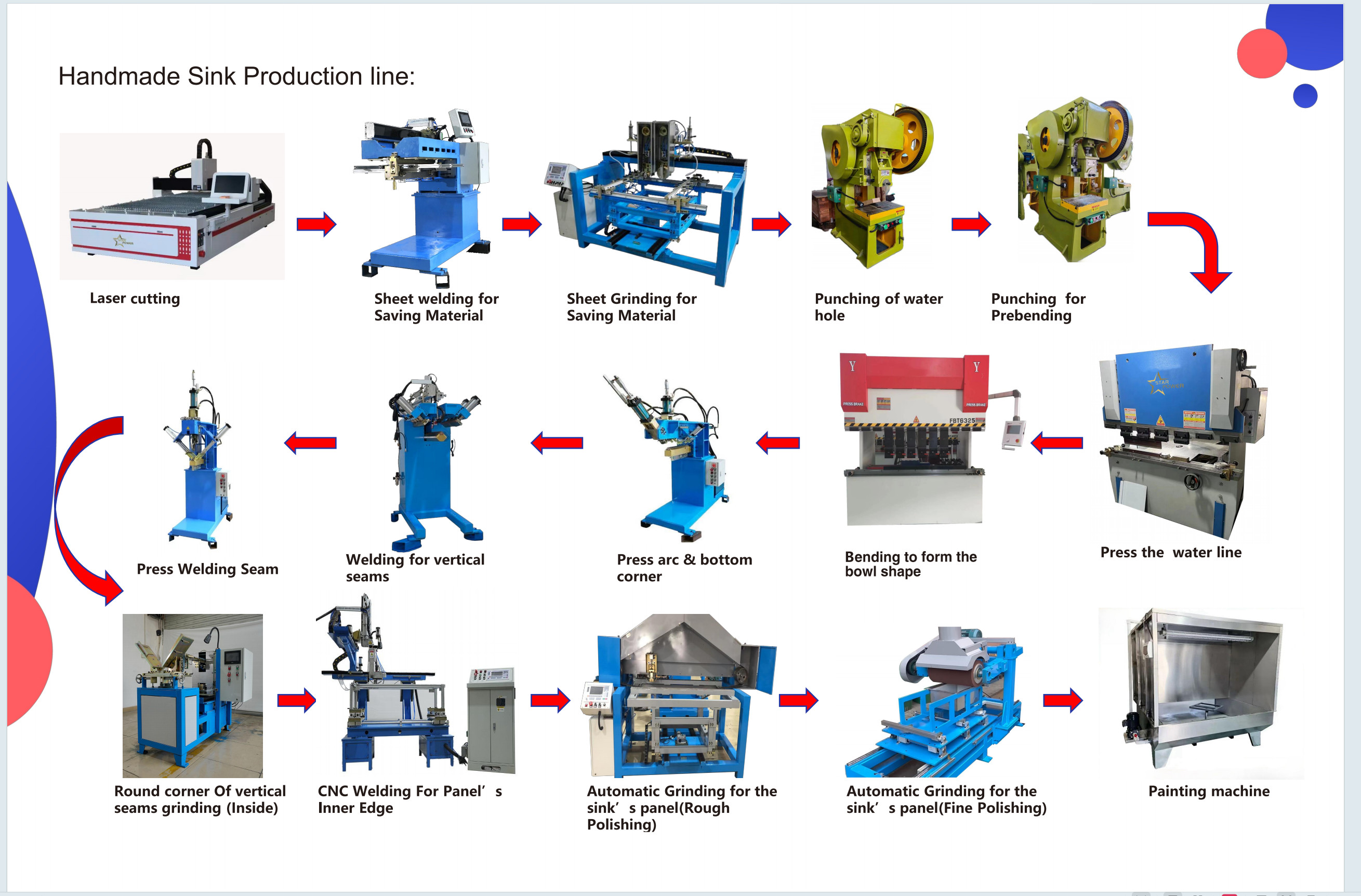

Process flow	Equipment name	Specific machine name
Cutting	Laser cutting	Customizable
Seam and corner pressing	Seam and corner pressing machine	Seam pressing machine, Corner pressing machine, Integrated seam and corner pressing machine
Stamping	Stamping machine	Punching of water hole,Punching of Prebending
Bending	Bending machine	Bending to form the bowl shape, Press the water line
Welding	Welding machine	CNC fillet welding machine, CNC corner mending welding machine, seam welding machine, CNC planar welding machine, Press arc & bottom corner,
Grinding and polishing	Grinding and polishing machine	Automatic Grinding for the sink's panel(Rough Polishing),Automatic Grinding for the sink's panel(Fine Polishing), Round corner Of vertical seams grinding (Inside)

Advantages:

Automated Numerical Control Welding Machine for Stainless Steel Sink Splicing 0

Automated Numerical Control Welding Machine for Stainless Steel Sink Splicing 1

Automated Numerical Control Welding Machine for Stainless Steel Sink Splicing 4

Automated Numerical Control Welding Machine for Stainless Steel Sink Splicing 7

Automated Numerical Control Welding Machine for Stainless Steel Sink Splicing 8
