Mechanical Kettle Making Machine For Stainless Steel Kettle Body Outer Shell Cutting

1 set
MOQ
Negotiable
Price
Mechanical Kettle Making Machine For Stainless Steel Kettle Body Outer Shell Cutting
Features Gallery Product Description Request A Quote
Features
Specifications
Slide Stroke (mm): 400
Return Force (kN): 2000 KN
Machine Type: Hydraulic Press Machine
System: Servo
Voltage: 380V/220V Optional
Dimension(L*W*H): 2200*2400*4200mm
Weight (T): 3.5 T
Motor Power (kw): 30 Kw
High Light:

Mechanical Kettle Making Machine

,

Stainless Steel Kettle Making Machine

,

Cutting Kettle Making Machine

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU,ISO
Model Number: YZ28G-350
Payment & Shipping Terms
Packaging Details: metal frame with film
Delivery Time: 1 month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Product Description

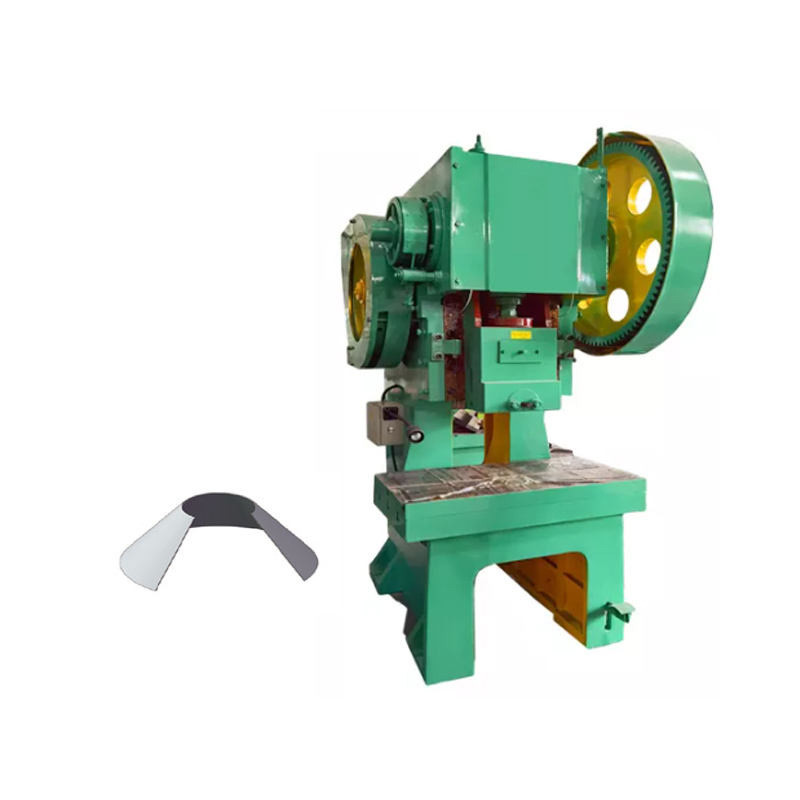

Kettle body outer shell cutting machine mechanical stainless steel kettle material cutting punching machine



Product Description:



Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.



Quick Details:



CNC or Not:
Normal
Condition:
New
Machine Type:
Punching Machine
Slide Stroke (mm):
35-200
Power Source:
Hydraulic, Mechanical
Place of Origin:
Guangdong, China
Brand Name:
STARPOWER
Voltage:
220V/380V/450V, 220V/380V/450V
Motor Power (kW):
1.5kw-15kw
Weight (T):
15
Key Selling Points:
High-accuracy
Warranty:
1 Year, 1 year
Applicable Industries:
Manufacturing Plant
Showroom Location:
None
Marketing Type:
Ordinary Product
Machinery Test Report:
Not Available
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Motor, Gearbox, PLC
Product name:
Kettle Punching Machine
After-sales Service Provided:
Online support
OEM:
Available



Specifications:



Specification Type
YM-J21-6.3
YM-J21-10
YM-J21-16
YM-J21-25(A)
YM-J21--40(A)
YM-J21-63A
YM-J21-80A
Nominal force
kN
63
100
160
250
400
630
800
Nominal stroke
mm
3
4
5
5
6
8
9
slide stroke
mm
35
60
70
80
120
120
130
SPM
min
170
145
125
60
55
50
45
Max die height
mm
110
130
170
180
220
300
350
Die height adjustment
mm
30
35
45
70
80
80
100
Between slide center and frame
mm
110
130
170
210
260
300
300
Bolster area(B*L)
mm
200*310
240*360
320*480
400*600
480*710
570x760
580*860
Bolster thickness
mm
40
50
60
70
80
90
100
Shank hole(Dia x Depth)
mm
30*55
30x55
40*60
40x70
50*70
50*80
6075
Distance between columns
mm
162
182
220
350
390
470
515
Main motor power
kW
0.75
1.1
1.5
2.2
4
5.5
7.5
Outline dimension (F&BX L&RX H)
mm
920*620 X1525
1020*760 X1800
1160x980 X1960
1320x1200 X2250
1480x1320 X2450
1550X1410 X2610
1610X1470 X2680

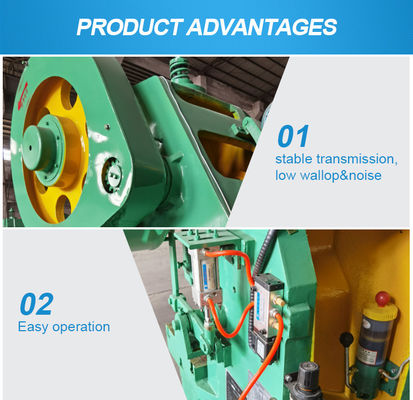

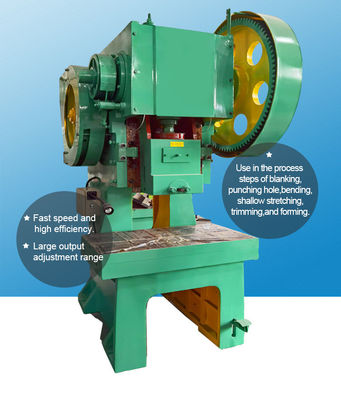

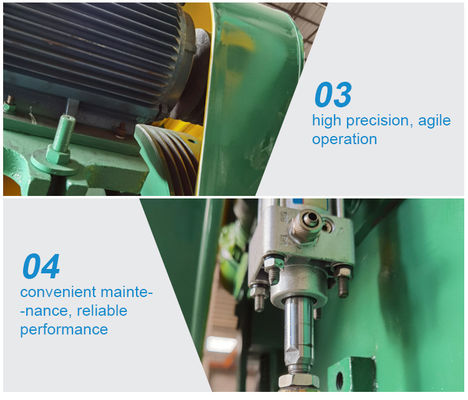

Advantages:





Mechanical Kettle Making Machine For Stainless Steel Kettle Body Outer Shell Cutting 0Mechanical Kettle Making Machine For Stainless Steel Kettle Body Outer Shell Cutting 1Mechanical Kettle Making Machine For Stainless Steel Kettle Body Outer Shell Cutting 2Mechanical Kettle Making Machine For Stainless Steel Kettle Body Outer Shell Cutting 3Mechanical Kettle Making Machine For Stainless Steel Kettle Body Outer Shell Cutting 4Mechanical Kettle Making Machine For Stainless Steel Kettle Body Outer Shell Cutting 5Mechanical Kettle Making Machine For Stainless Steel Kettle Body Outer Shell Cutting 6Mechanical Kettle Making Machine For Stainless Steel Kettle Body Outer Shell Cutting 7
