Servo System Kettle Making Machine For Kettle Brazing Heating Plate Element Welding

1 set
MOQ
Negotiable
Price
Servo System Kettle Making Machine For Kettle Brazing Heating Plate Element Welding
Features Gallery Product Description Request A Quote
Features
Specifications
Slide Stroke (mm): 400
Return Force (kN): 2000 KN
Machine Type: Hydraulic Press Machine
System: Servo
Voltage: 380V/220V Optional
Dimension(L*W*H): 2200*2400*4200mm
Weight (T): 3.5 T
Motor Power (kw): 30 Kw
High Light:

Servo Kettle Making Machine

,

Brazing Kettle Making Machine

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU,ISO
Model Number: YZ28G-350
Payment & Shipping Terms
Packaging Details: metal frame with film
Delivery Time: 1 month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Product Description

high quality kettle brazing machine kettle heating plate element welding high frequency welding machine



Product Description:



Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.



Quick Details:

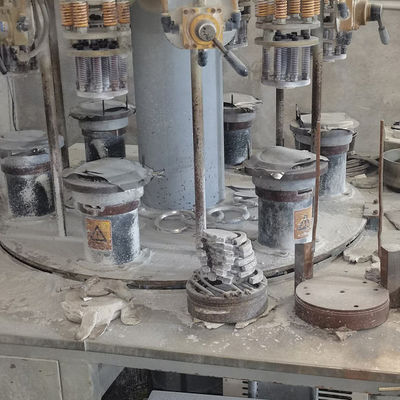

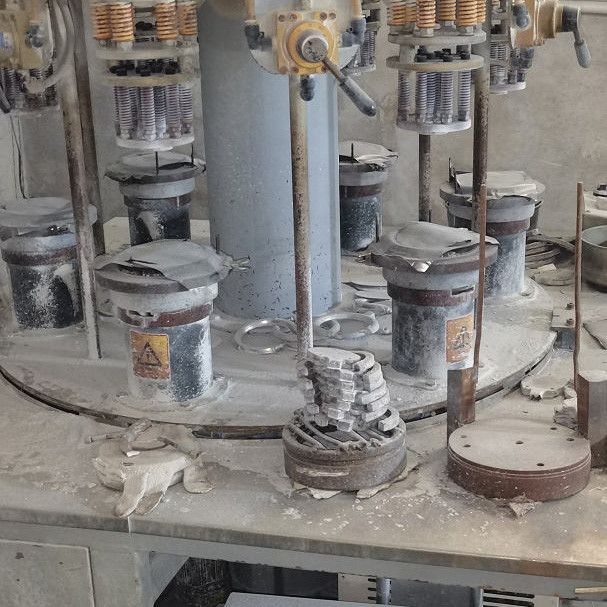

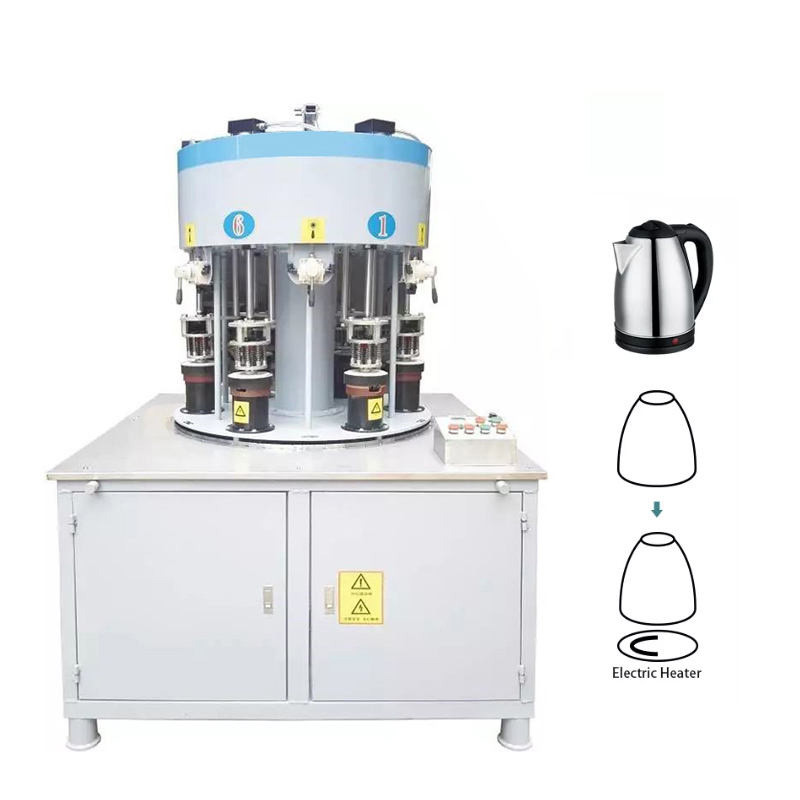

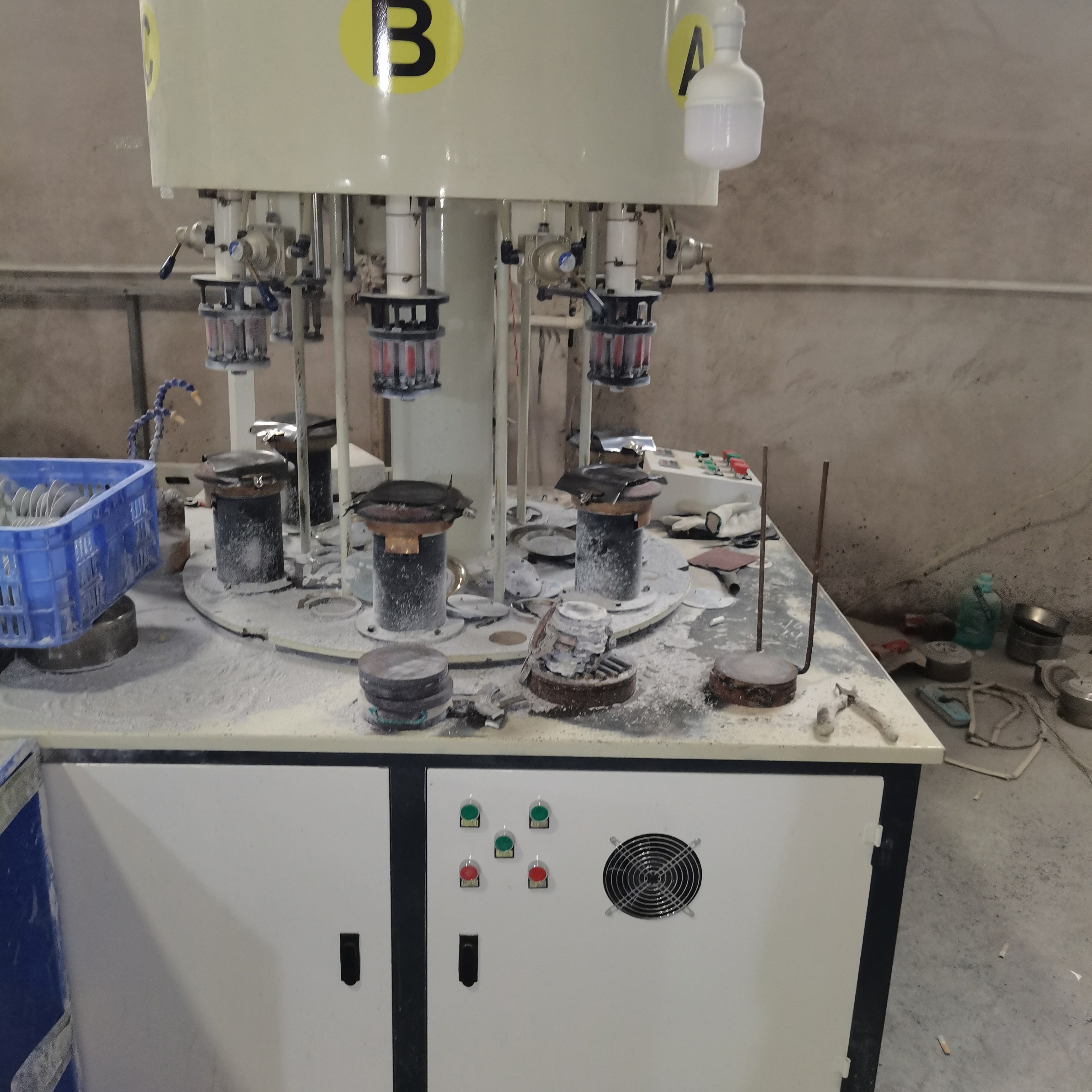

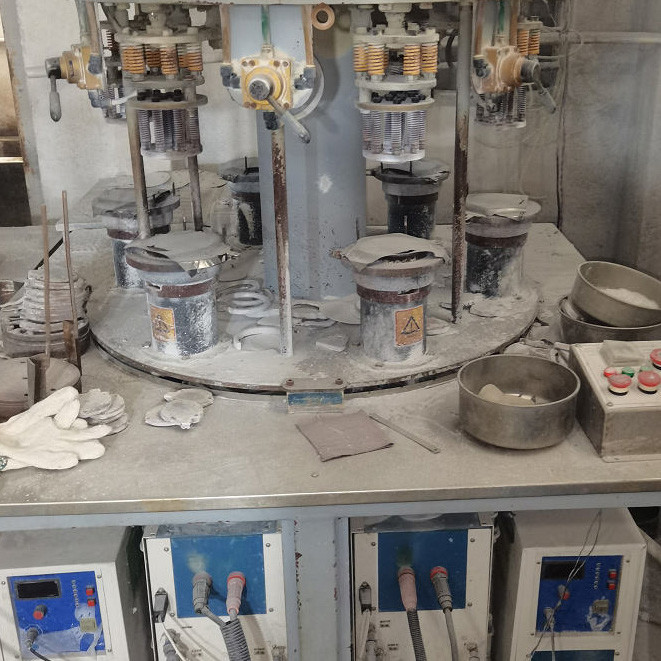

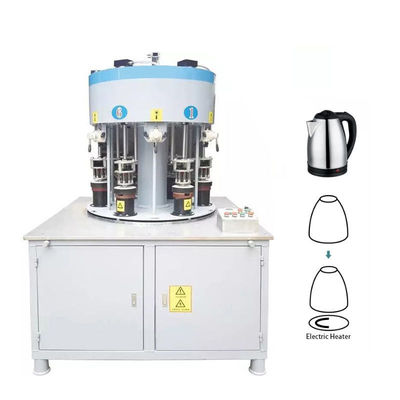

-Brazing Machine uses the high power IGBT high frequency machine to provide heating power and the pneumatic system as the drive.

-It has such features as stable operation, precise control, easy operation and high rate of products meeting standards, which is the most ideal equipment for manufacturing on new generation of electric heating stainless steel kitchen utensil.

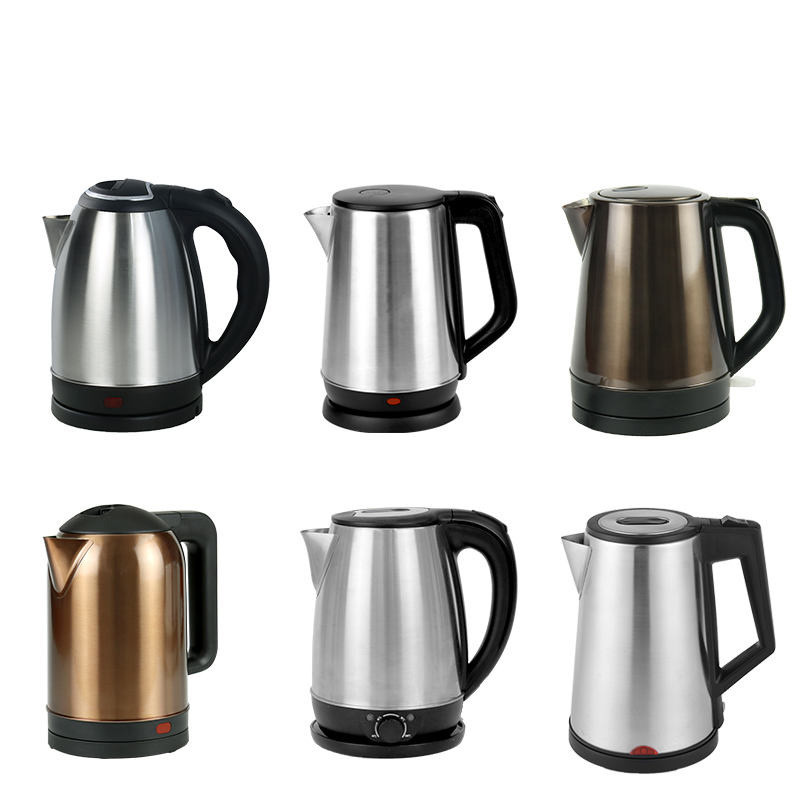

-It is applicable to the welding of such electric heating products as electric heating pan, hot-water kettle, frying pan and coffee pot, which can make the stainless steel plate, aluminum sheet and tubular electric heating element of different shapes and thickness form an integral part through one-off metal braze welding.



Specifications:



Model JL-120 JL-140 JL-160
The input voltage 3 phases 380V 50/60HZ
The output fluctuating power 30-100KHZ 30-100KHZ 30-80KHZ
The show current 1000A 1500A 1800A
The max diameter 50-130mm 50-160mm 50-200mm
The air pressure 0.2-0.5mpa 0.2-0.5mpa 0.2-0.5mpa
The voltage of cooling water 0.3mpa 0.3mpa 0.3mpa
The temperature of cooling water < 40º C < 40º C < 40º C
Dimensions Three working position: 950x1300x1900mm
Weight 250kg/500kg 320kg/560kg 400kg/650kg



Advantages:





Servo System Kettle Making Machine For Kettle Brazing Heating Plate Element Welding 0Servo System Kettle Making Machine For Kettle Brazing Heating Plate Element Welding 1Servo System Kettle Making Machine For Kettle Brazing Heating Plate Element Welding 2Servo System Kettle Making Machine For Kettle Brazing Heating Plate Element Welding 3Servo System Kettle Making Machine For Kettle Brazing Heating Plate Element Welding 4
