Stainless Steel Kettle Making Machine , Multi Hole Automatic Punching Machine

1 set
MOQ
Negotiable
Price
Stainless Steel Kettle Making Machine , Multi Hole Automatic Punching Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Slide Stroke (mm): 400
Return Force (kN): 2000 KN
Machine Type: Hydraulic Press Machine
System: Servo
Voltage: 380V/220V Optional
Dimension(L*W*H): 2200*2400*4200mm
Weight (T): 3.5 T
Motor Power (kw): 30 Kw
High Light:

Punching Kettle Making Machine

,

Kettle Making Machine Stainless Steel

,

Multi Hole Automatic Punching Machine

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU,ISO
Model Number: YZ28G-350
Payment & Shipping Terms
Packaging Details: metal frame with film
Delivery Time: 1 month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Product Description

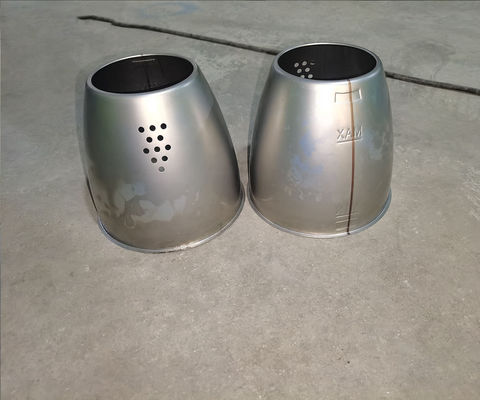

high efficiency stainless steel kettle body water line & hole punching multi punching machine automatic punching machine



Product Description:



Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.



Quick Details:



Used for drawing and pressing of aluminum, iron, stainless steel and other metal plates. Especially suitable for kitchen appliances, household appliances and auto parts.Such as electric rice cooker, pressure cooker, stainless steel pot, all kinds of small appliances, shell and other parts of the forming.



Specifications:



Description unit YZ28G-150 YZ28G-200 YZ28G-250 YZ28G-300 YZ28G-350
Nominal force kN 1000 1500 1500 2000 2500
Hydraulic system rated working pressure MPa 20 20 20 25 20
Return nominal force kN 110 140 140 180 125
Nominal force of lower cylinder blank holder kN 500 500 1000 1000 1000
Lower cylinder liquid maximum working pressure MPa 20 20 26 26 26
Nominal force of return cylinder kN 30 30 30 30 30
Lower piston maximum stroke mm 250 300 300 300 300
Maximum stroke of return cylinder mm 200 200 200 200 200
Maximum travel of movable beam mm 540 550 550 550 600
Distance from movable beam to work surface Max mm 940 950 950 1000 1110
Min mm 400 400 400 450 510
Lifting speed of movable beam No-load downlink mm/s 350 350 350 350 400
pressurized mm/s 41 36 36 32 21/35
return stroke mm/s 350 350 350 345 400
Blank holder piston speed Up mm/s 125 160 115 115 115
Down mm/s Follow beam Follow beam Follow beam Follow beam Follow beam
Motor power kW 31 36 36 49 36
Effective area of worktable (left and right × front and rear) mm2 650×750 700×880 700×880 750×900 800×990



Advantages:

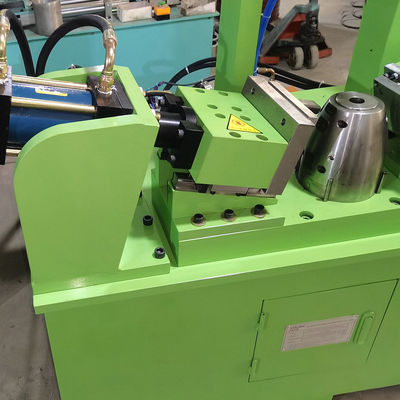

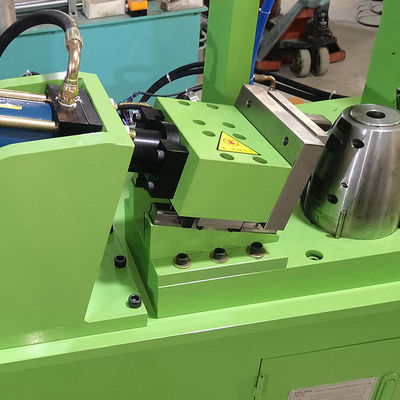

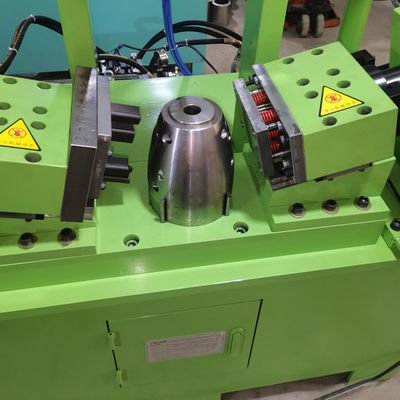

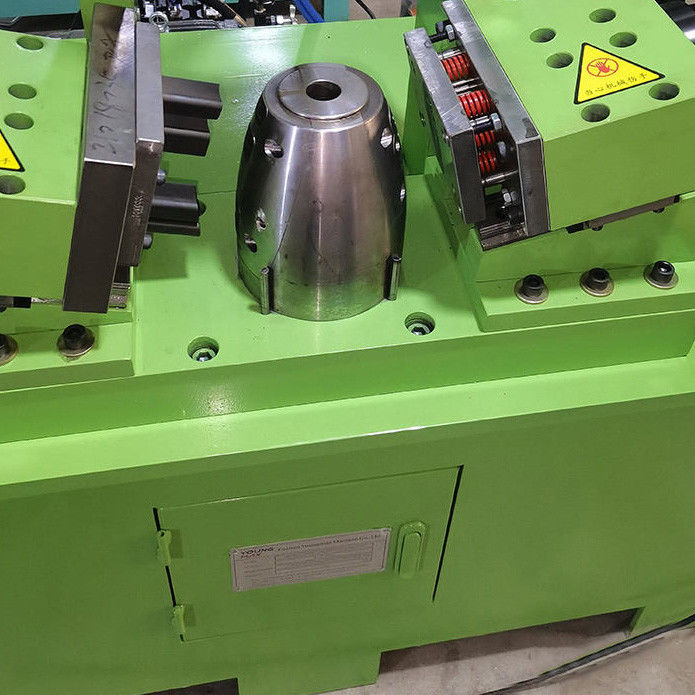

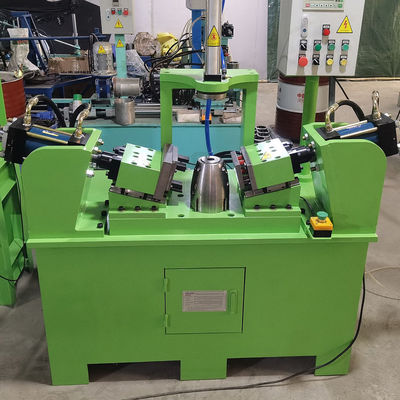

Stainless Steel Kettle Making Machine , Multi Hole Automatic Punching Machine 0Stainless Steel Kettle Making Machine , Multi Hole Automatic Punching Machine 1Stainless Steel Kettle Making Machine , Multi Hole Automatic Punching Machine 2Stainless Steel Kettle Making Machine , Multi Hole Automatic Punching Machine 3Stainless Steel Kettle Making Machine , Multi Hole Automatic Punching Machine 4Stainless Steel Kettle Making Machine , Multi Hole Automatic Punching Machine 5
