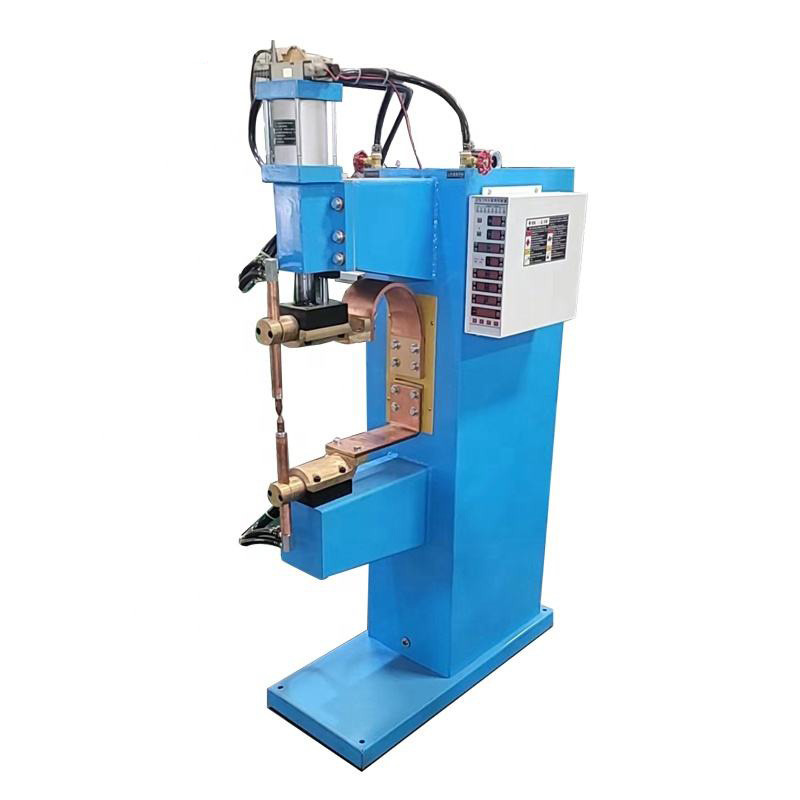

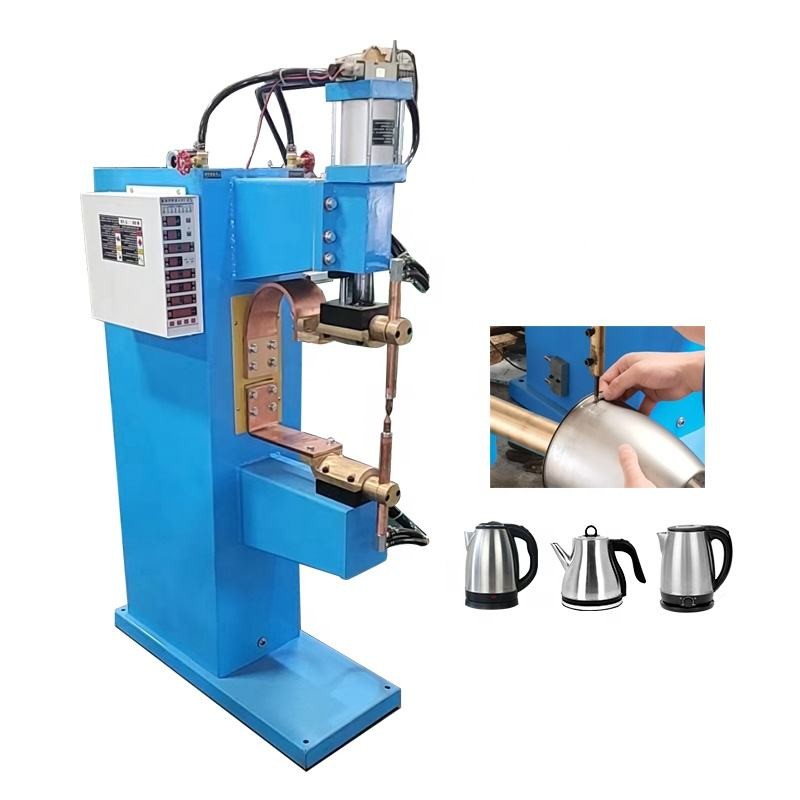

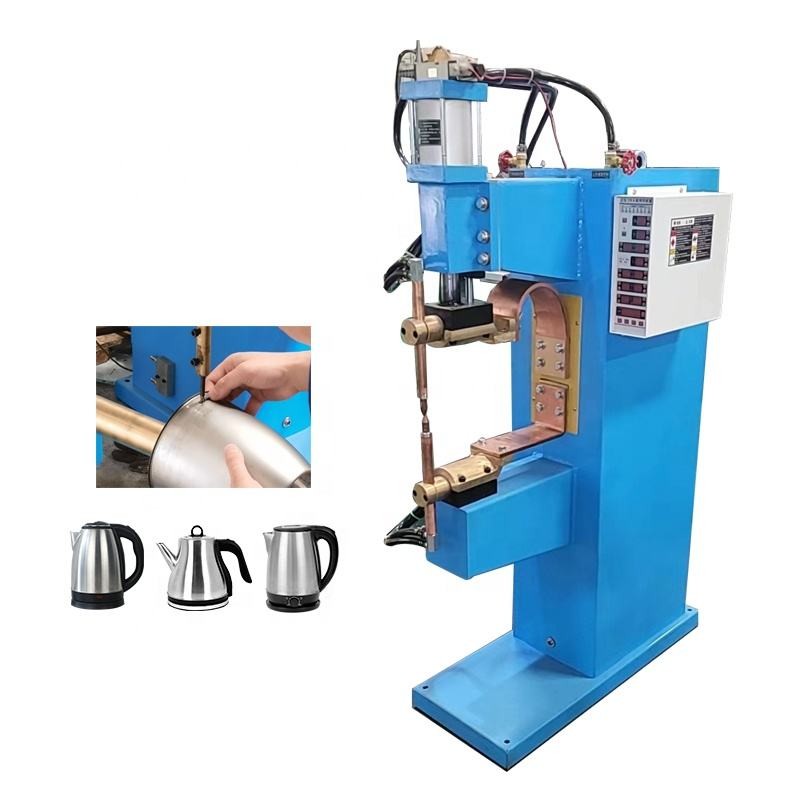

Product Description:
Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.
Quick Details:
* The special design of one body tube cylinder can guarantee the welding stability and velocity
* Multi-pass water cooling system make sure the reliability of long time working.
* Spot and projection welding functions.
* Computer control system with steady-voltage and current, Multi-Time Discharge(MTD], can satisfy various working requirements
with ease.
* Can weld iron, copper, aluminum
Specifications:
|
Item
Model |
DN-25
|
DN-35
|
DN-50
|
DN-75
|
DN-100
|
DN-150
|
DN-200
|
|
Rated capacity
KVA |
25
|
35
|
50
|
75
|
100
|
150
|
200
|
|
Rated Primary voltage
V |
380
|
380
|
380
|
380
|
380
|
380
|
380
|
|
Rated frequency
Hz |
50/60
|
50/60
|
50/60
|
50/60
|
50/60
|
50/60
|
50/60
|
|
Maximum welding input
KVA |
38
|
54
|
70
|
146
|
216
|
340
|
450
|
|
Rated duty cycle
% |
50
|
50
|
50
|
50
|
50
|
50
|
50
|
|
Arm length
mm |
340
|
380
|
380
|
380
|
380
|
450
|
450
|
|
Maximun compression
N |
2500
|
4700
|
4700
|
7300
|
7300
|
12000
|
12000
|
|
Electrode stroke
mm |
60
|
80
|
80
|
80
|
80
|
100
|
100
|
|
Welding capability
(Low carbon steel) mm |
2.0+2.0
|
2.5+2.5
|
3.0+3.0
|
4.0+4.0
|
4.5+4.5
|
5.0+5.0
|
6.0+6.0
|
