Fully Automatic CNC Welding Machine For Metal Sinks

1 set
MOQ
Negotiable
Price
Fully Automatic CNC Welding Machine For Metal Sinks
Features Gallery Product Description Request A Quote
Features
Specifications
Type: CNC Welding Machine
Power: 4 KW
Voltage: 220 V
The Clamping Way: Pneuma-lock
Compressed Air Pressure: 0.2-1.0 MPa
Body Size: 1400*1100*2000 Mm
HS Code: 85159000
Control Method: Starart CNC System
Highlight:

Fully Automatic CNC Welding Machine

,

Metal Sinks CNC Welding Machine

,

Metal Sinks Welding Machine
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU,ISO
Model Number: SP-9001
Payment & Shipping Terms
Packaging Details: metal frame with film
Delivery Time: 1 month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Product Description

Fully automatic CNC welding machine for metal sinks



Detailed Description of the Fully Automatic CNC Welding Machine for Metal Sinks

  1. Equipment Introduction
    The fully automatic CNC welding machine for metal sinks is an advanced equipment specially designed for the welding of metal sinks. It adopts the latest CNC technology and can achieve high-precision and high-efficiency welding operations, providing reliable technical support for the production of metal sinks.
  2. Technical Characteristics
    CNC System
    Equipped with an advanced CNC operating system, it can precisely set welding parameters, such as welding current, voltage, and welding speed, to ensure the consistency and stability of welding quality.
    It has a programming function and can store multiple welding programs, facilitating the quick switch of welding processes for sinks of different specifications.
    Welding Head
    A specially designed welding head is adopted, which can adapt to the complex shapes and welding positions of metal sinks to achieve all-round welding.
    The welding head has good heat dissipation performance, can work continuously for a long time, and improves production efficiency.
    Positioning Device
    The high-precision positioning device can accurately fix the position of the metal sink to ensure the accuracy and precision of welding.
    It can be quickly adjusted according to sinks of different sizes and has high flexibility.
    Automatic Wire Feeding System
    The stable and reliable automatic wire feeding system can precisely feed the wire according to the welding requirements to ensure the fullness and uniformity of the weld seam.
  3. Performance Advantages
    Efficient Production
    The welding speed is fast, which greatly shortens the production cycle and increases the output of metal sinks.
    The degree of automation is high, reducing manual operations and lowering labor intensity.
    High-quality Welding
    The welding quality is high, the weld seam is beautiful and firm, without defects such as pores and slag inclusions.
    Precise control of welding parameters ensures the stability and reliability of welding.
    Strong Adaptability
    It is suitable for metal sinks of various materials, such as stainless steel and aluminum alloy.
    It can weld sinks of different shapes and sizes to meet diverse production needs.
    Energy Saving and Environmental Protection
    Compared with traditional welding equipment, it has lower energy consumption and reduces energy waste.
    It generates less welding fumes and is environmentally friendly.
  4. Application Fields
    This fully automatic CNC welding machine for metal sinks is widely used in industries such as kitchen equipment manufacturing and bathroom product production, providing efficient and high-quality solutions for the manufacture of metal sinks.


​Specifications:



Process term Process introduction machine Machine size floor space power
(Kw)
Length(m) Width(m)
Process 1 Steel Coil Laser cutting Laser cutter line 12000x2600x1950mm 17 2.6 45
Process 2 Sheet welding for Saving Material Straight Seam Welding Machine 1400x1100x2000mm 1.4 1.1 0.4
Process 3 Sheet Grinding for Saving Material Sheet Grinding Machine 2250x1550x1800mm 2.3 1.6 3.2
Process 4 Punching of water hole Deep throat Press machine/J21S-40T 1500x1200x2000mm 1.5 1.2 4
Process 5 Punching for Prebending Deep throat press machine/J21S-63T 1700x1400x2200mm 1.7 1.4 4
Process 6 Press the water line Bending machine/30T-1600MM 2600x1400x2000mm 2.6 1.4 3
Process 7 Bending of the sink base Bending machine/63T-2500MM 2800X1700X2350MM 2.8 1.7 5.5
Process 8 Press arc & bottom corner Two-In-One Integrated Rolling Seam&Corner Pressing Machine 1300x750x2000mm 1.3 0.75 2.3
Process 9 Welding for vertical seams and bottom corner CNC Welding Special Machine 1400x1100x2000mm 1.4 1.1 0.4
Process 10 Round corner Of vertical seams grinding (Inside) Grinding Machine For Round corner Of vertical seams 2550x850x2200mm 2.6 0.85 2.3
Process 11 Repair the Panel's missing corners CNC Welding Special Machine(for panel repair) 1100x850x1450mm 1.1 0.85 0.4
Process 12 CNC Welding For Panel's Inner Edge Multi-Axis CNC Welding Special Machine
(For panel's inner edge)		 1700x1400x1600mm 1.7 1.4 1.3
Process 13 Grinding for the sink's panel Grinding machine (Abrasive belt type) 2500x1400x1700mm 2.5 1.4 3
Process 14 Grinding for the sink's panel(mirror surface) Grinding machine 3000x1400x1700mm 3 1.4 3
Process 15 Painting For Sink Bottom Back Side Manual painting equipment 2200X1800X1600mm 2.2 1.8 4.5
Process 16 Drying after Painting Drying Oven 13000X1000X1600mm 13 1 30
Total floor space(Includ spaced distance and transportation route):>65m(Length)x 10m(Width)





Process flow Equipment name Specific machine name
Cutting Laser cutting Customizable
Seam and corner pressing Seam and corner pressing machine Seam pressing machine, Corner pressing machine, Integrated seam and corner pressing machine
Stamping Stamping machine Punching of water hole,Punching of Prebending
Bending Bending machine Bending to form the bowl shape,
Press the water line
Welding Welding machine CNC fillet welding machine, CNC corner mending welding machine, seam welding machine, CNC planar welding machine,
Press arc & bottom
corner,
Grinding and polishing Grinding and polishing machine
Automatic Grinding for the
sink's panel(Rough
Polishing),Automatic Grinding for the
sink's panel(Fine Polishing),
Round corner Of vertical
seams grinding (Inside)



​

Advantages:

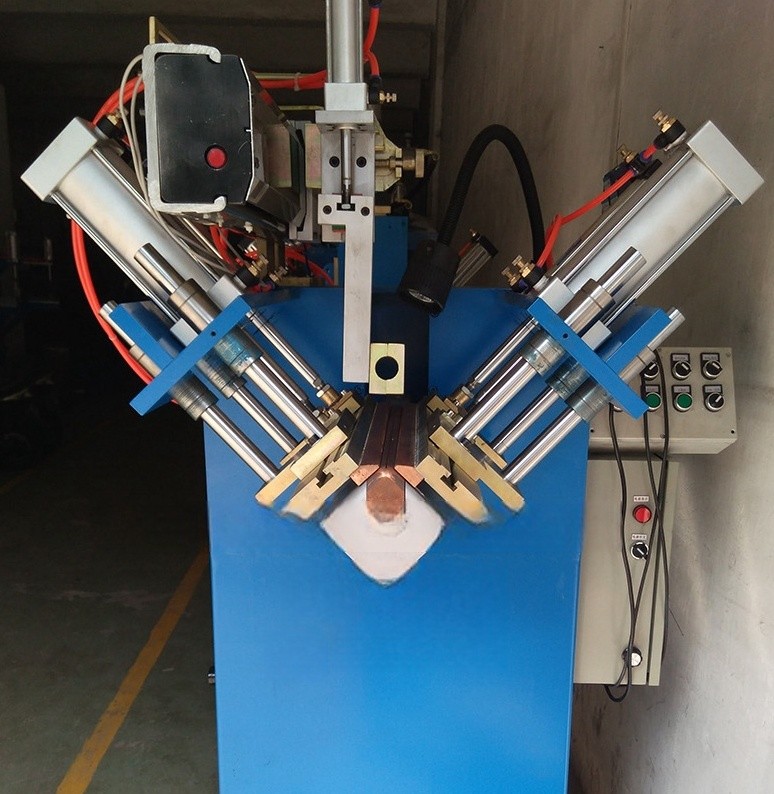

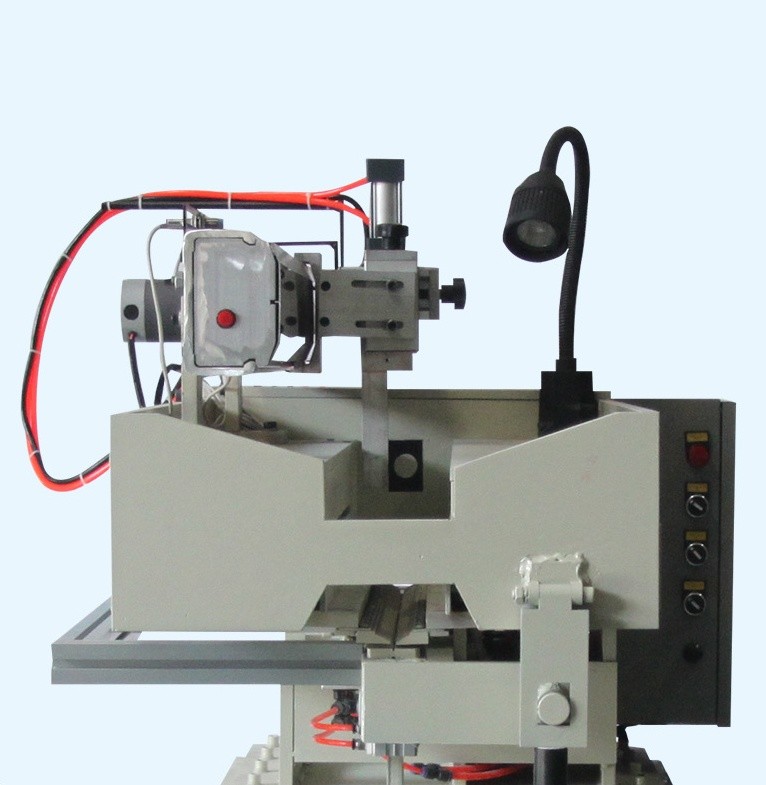

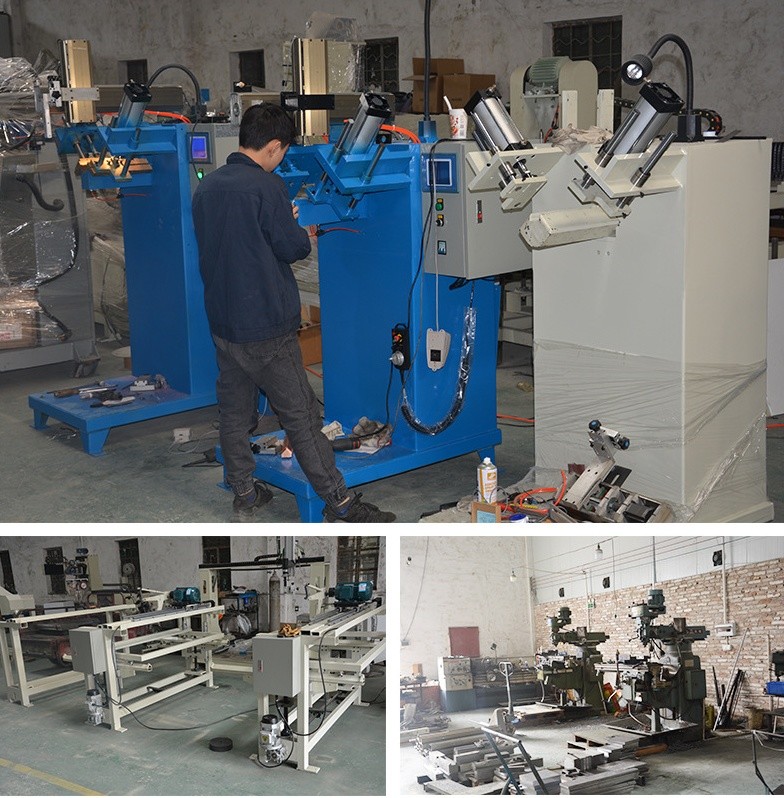

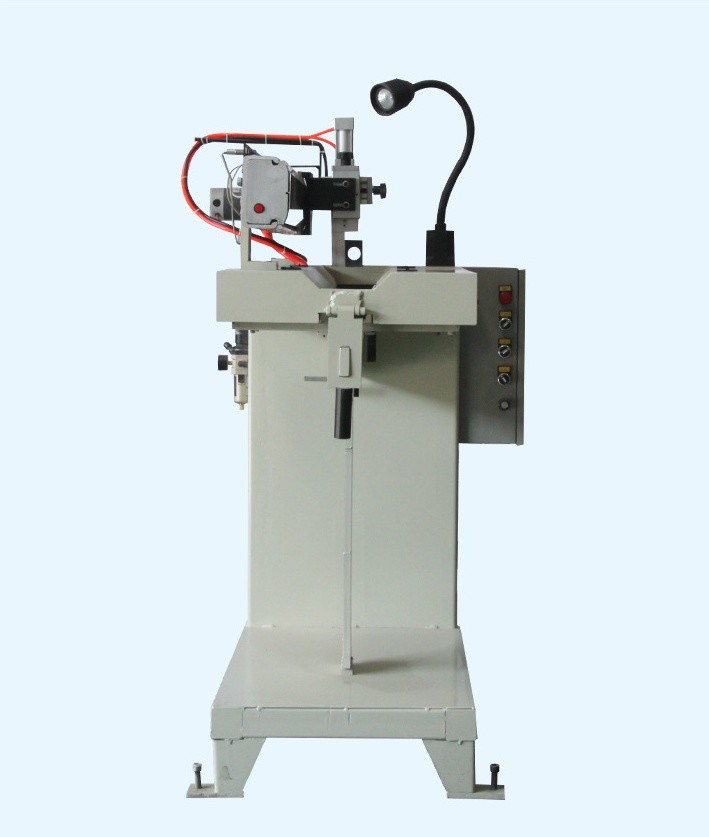

Fully Automatic CNC Welding Machine For Metal Sinks 0







Fully Automatic CNC Welding Machine For Metal Sinks 1Fully Automatic CNC Welding Machine For Metal Sinks 2Fully Automatic CNC Welding Machine For Metal Sinks 3

​Fully Automatic CNC Welding Machine For Metal Sinks 4​​

Fully Automatic CNC Welding Machine For Metal Sinks 7

Fully Automatic CNC Welding Machine For Metal Sinks 8
