Product Description:
Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.
Quick Details:

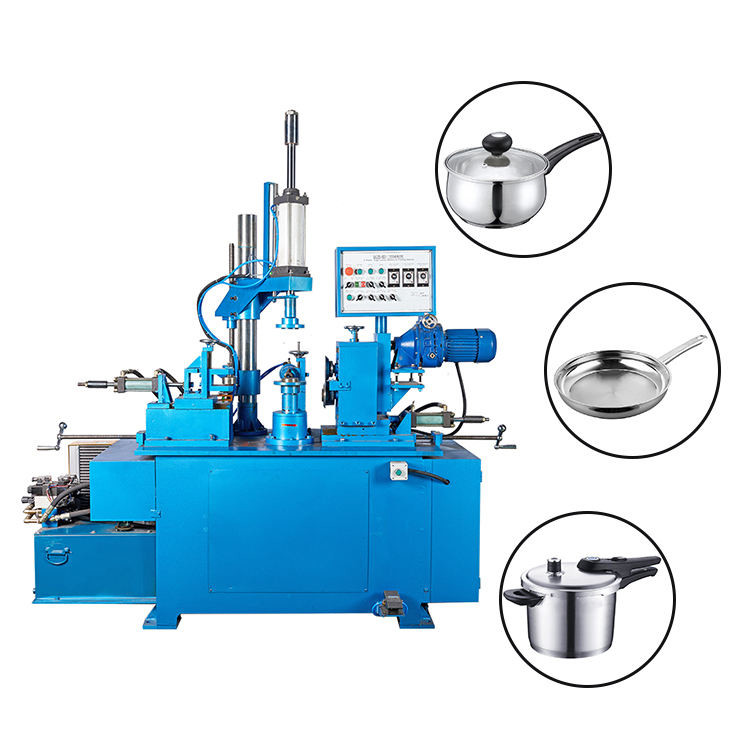

Vertical Trimming Beading Machine For Cookware and Utensil
1. Features:

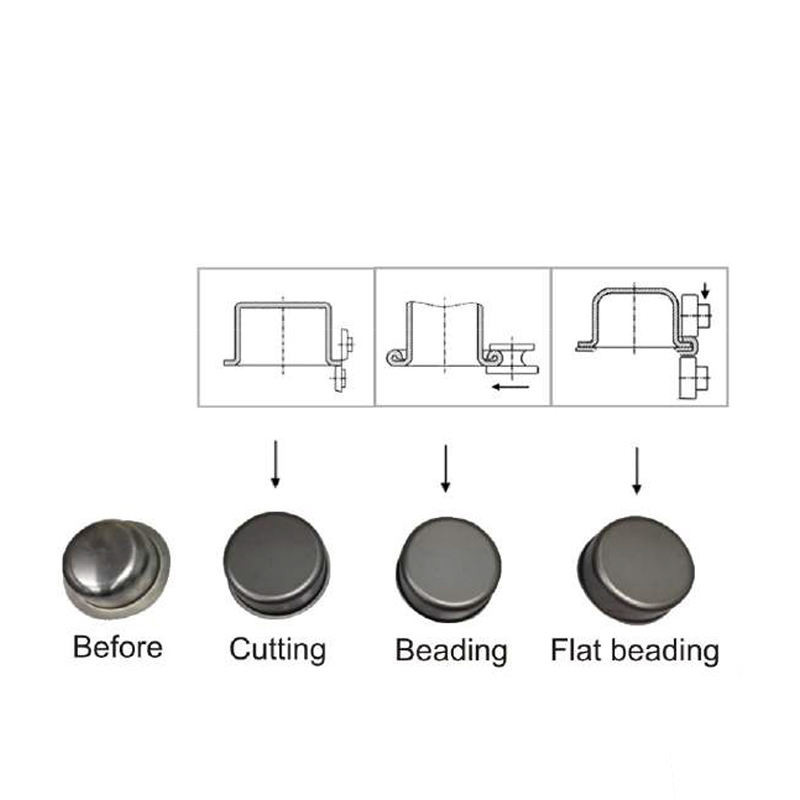

The vertical type trimming beading machine is programmable for independent operation of edge cutting, trimming or beading, or auto cycle
Operation between different processes.
2. Main Technical Parameters:
--Height of the work piece: ≤ 350mm
--Dia. Of the work piece: 160-Φ350mm
--Material thickness: ≤ 0.8mm
--Main motor power: 4KW
--Main shaft speed: 240r/min, 300r/min, 360r/min, 450r/min
This machine can be ordered with different design requirement.
Specifications:
| Product name | s.s cookware cutting beading and trimming machine |
| Working purpose |
AL/S.S cookware/utensil/kitchen ware Edge cutting, beading and trimming |
| Control system | PLC |
| Motor power | 7.5KW |
| Power of main shaft | 4KW |
| Motor of cutting station | 0.75KW |
| Speed of work piece | 100-350r/min(Adjustable) |
| Max. diameter of the work piece | ≤Φ325mm |
| Max. height of the work piece | ≤Φ300mm |
| Movement speed of the main shaft | 0-50mm/s(adjustable) |
| Air pressure | 0.5~0.8Mpa |
| Hydraulic working pressure | 3-5Mpa |
| Guarantee | 1 year |
Advantages:
