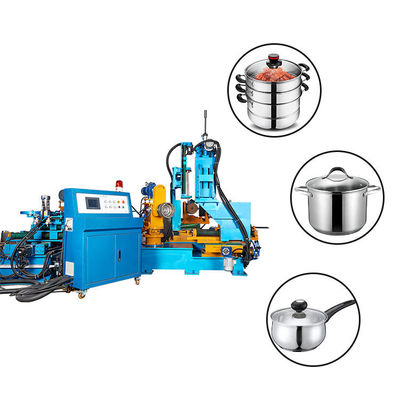

Vertical Automatic Edge Trimming Machine For Utensil Cookware

1 set
MOQ
Negotiable
Price
Vertical Automatic Edge Trimming Machine For Utensil Cookware
Features Gallery Product Description Request A Quote
Features
Specifications
Slide Stroke (mm): 400
Return Force (kN): 2000 KN
Machine Type: Hydraulic Press Machine
System: Servo
Voltage: 380V/220V Optional
Dimension(L*W*H): 2200*2400*4200mm
Weight (T): 3.5 T
Motor Power (kw): 30 Kw
High Light:

Vertical Edge Trimming Machine

,

Utensil Edge Trimming Machine

,

Edge Trimming Machine Cookware

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU,ISO
Model Number: QXJY325-300
Payment & Shipping Terms
Packaging Details: metal frame with film
Delivery Time: 1 month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Product Description

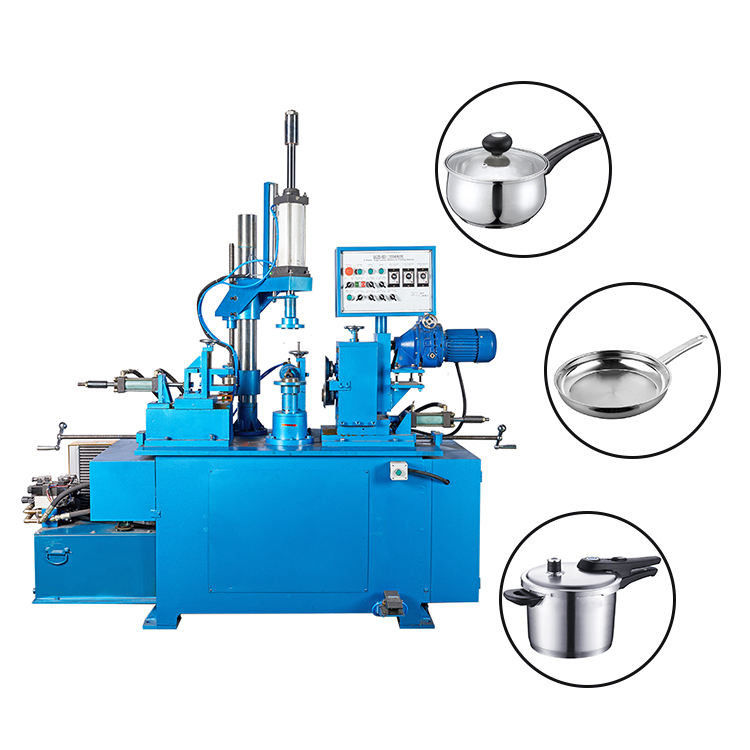

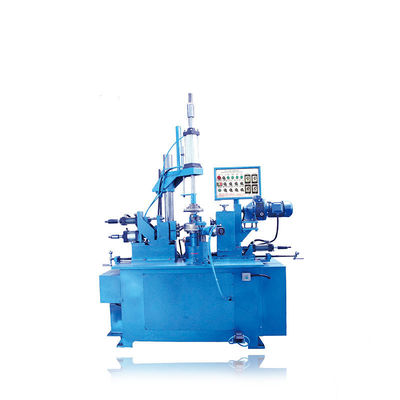

Automatic Utensil Cookware Trimming and Beading Machine



Product Description:



Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.



Quick Details:



Vertical Trimming Beading Machine For Cookware and Utensil
1. Features:

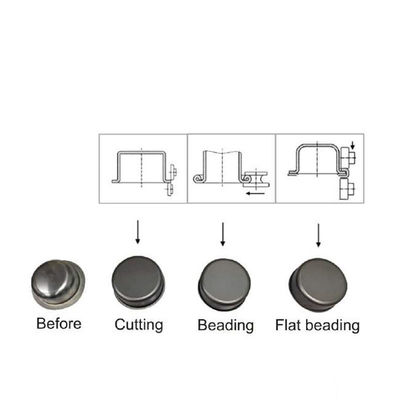

The vertical type trimming beading machine is programmable for independent operation of edge cutting, trimming or beading, or auto cycle
Operation between different processes.

2. Main Technical Parameters:
--Height of the work piece: ≤ 350mm
--Dia. Of the work piece: 160-Φ350mm
--Material thickness: ≤ 0.8mm
--Main motor power: 4KW
--Main shaft speed: 240r/min, 300r/min, 360r/min, 450r/min
This machine can be ordered with different design requirement.



Specifications:



Product name s.s cookware cutting beading and trimming machine
Working purpose

AL/S.S cookware/utensil/kitchen ware

Edge cutting, beading and trimming

Control system PLC
Motor power 7.5KW
Power of main shaft 4KW
Motor of cutting station 0.75KW
Speed of work piece 100-350r/min(Adjustable)
Max. diameter of the work piece ≤Φ325mm
Max. height of the work piece ≤Φ300mm
Movement speed of the main shaft 0-50mm/s(adjustable)
Air pressure 0.5~0.8Mpa
Hydraulic working pressure 3-5Mpa
Guarantee 1 year



Advantages:



Vertical Automatic Edge Trimming Machine For Utensil Cookware 0Vertical Automatic Edge Trimming Machine For Utensil Cookware 1Vertical Automatic Edge Trimming Machine For Utensil Cookware 2Vertical Automatic Edge Trimming Machine For Utensil Cookware 3
