Hydraulic Edge Cutting Trimming Machine For Stainless Steel Pot Beading Pressing

1 set
MOQ
Negotiable
Price
Hydraulic Edge Cutting Trimming Machine For Stainless Steel Pot Beading Pressing
Features Gallery Product Description Request A Quote
Features
Specifications
Slide Stroke (mm): 400
Return Force (kN): 2000 KN
Machine Type: Hydraulic Press Machine
System: Servo
Voltage: 380V/220V Optional
Dimension(L*W*H): 2200*2400*4200mm
Weight (T): 3.5 T
Motor Power (kw): 30 Kw
High Light:

Hydraulic Edge Cutting Trimming Machine

,

Pot Edge Cutting Trimming Machine

,

Beading edge trim machine

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU,ISO
Model Number: QXJY325-300
Payment & Shipping Terms
Packaging Details: metal frame with film
Delivery Time: 1 month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Product Description

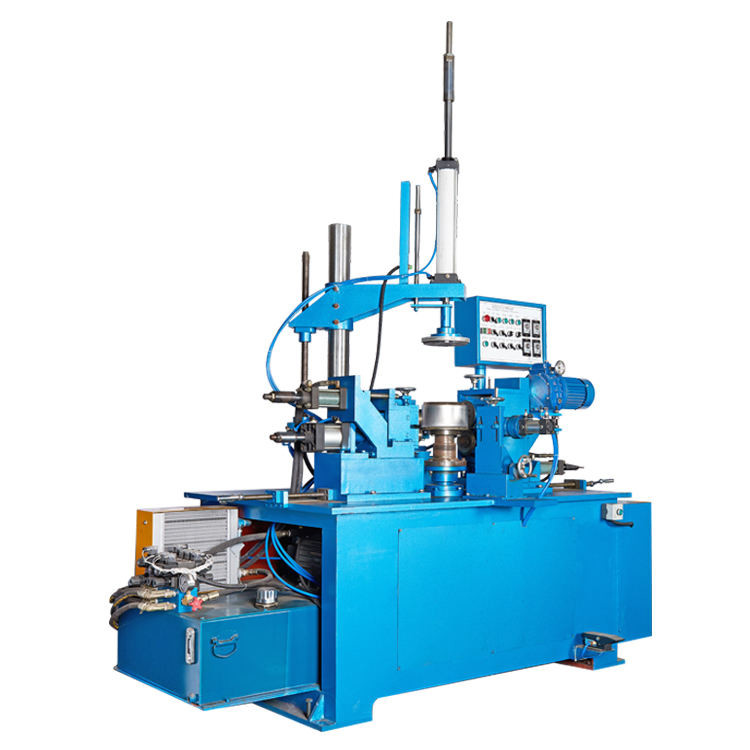

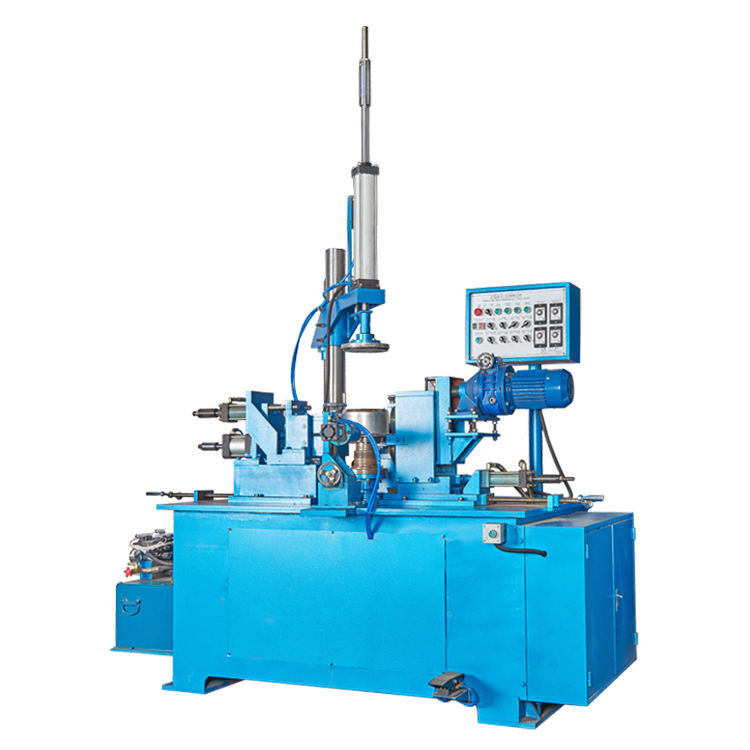

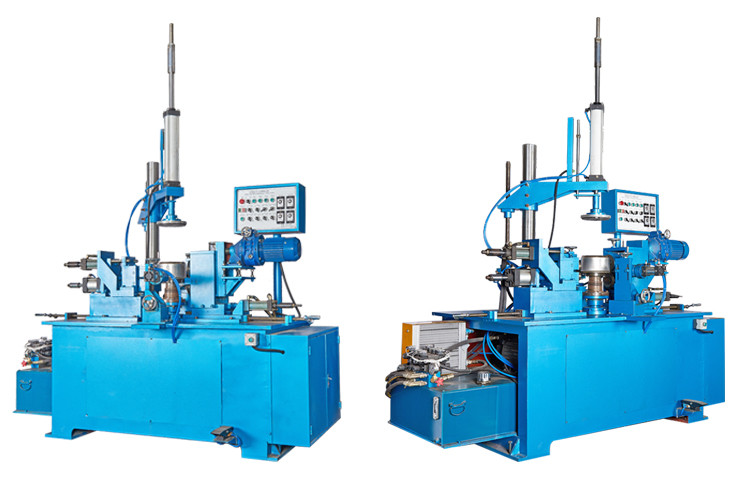

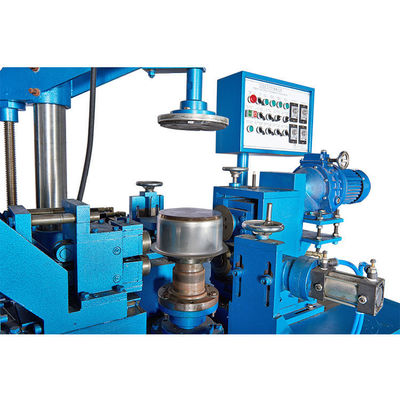

Stainless steel pot edge cutting machine beading and pressing machine



Product Description:



Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.



Quick Details:

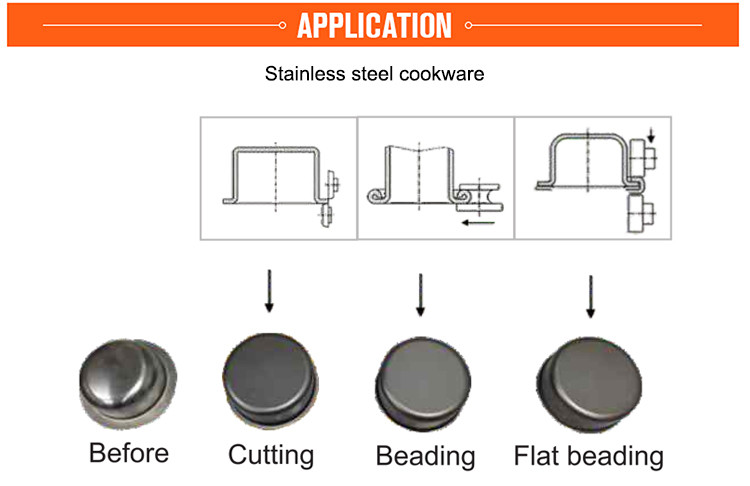

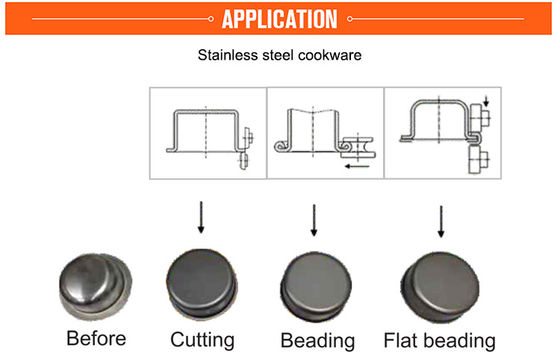

1. Edge cutting, trimming, beading & flat beading 4 in 1


2. Capacity: 12-22s/pc, about 2400-1920pcs/10hours


3. No vibration while cutting tall hollow items or thick items


4. Save 2 worker


5. Reduce 2 machine


6. Compare to punching solution, avoid big moulds cost


7. Easy operation & changing sizes


8. Electric components
MITSUBISHI PLC, DELIXI Switch, Schneider, SMC


9. Machine solid body 10 year lifetime



Specifications:



Main Technical Parameters
Function Edge cutting, trimming, beading & flat beading
Size of workpiece ≤Φ325mm x 300mm (Dia. x H)
Thickness SS: ≤ 1.2mm, Al: ≤ 4mm
Motor power Workpiece Motor: 4kw x 1
Cutting Motor: 0.37kw x 1
Hydraulic Station: 4kw x 1
rotating speed Workpiece: 28~140RPM (Adjustable)
Cutting blades : 2160 RPM (Adjustable)
Workpiece holding Vacuum adsorption
Dimension 2150mm x 1200mm x 2000mm (L x W x H)
Weight About 1.5T



Advantages:



Hydraulic Edge Cutting Trimming Machine For Stainless Steel Pot Beading Pressing 0Hydraulic Edge Cutting Trimming Machine For Stainless Steel Pot Beading Pressing 1Hydraulic Edge Cutting Trimming Machine For Stainless Steel Pot Beading Pressing 2Hydraulic Edge Cutting Trimming Machine For Stainless Steel Pot Beading Pressing 3
