Four-column Hydraulic Deep Drawing for Stainless Steel Sink

Brand Name:	Star Power
Model Number:	YRK-2000S-8X
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,
Supply Ability:	100 Set/Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CU,ISO

System:

PLC

Oil Pump Type:

Multi Pump

Main Oil Cylinder Nominal Force:

20000 KN

Maximum Working Pressure Of The Main Oil Cylinder:

80 Mpa

Maximum Travel Of The Activity Crossbeam:

250 MM

Packaging Details:

metal frame with film

Product Description

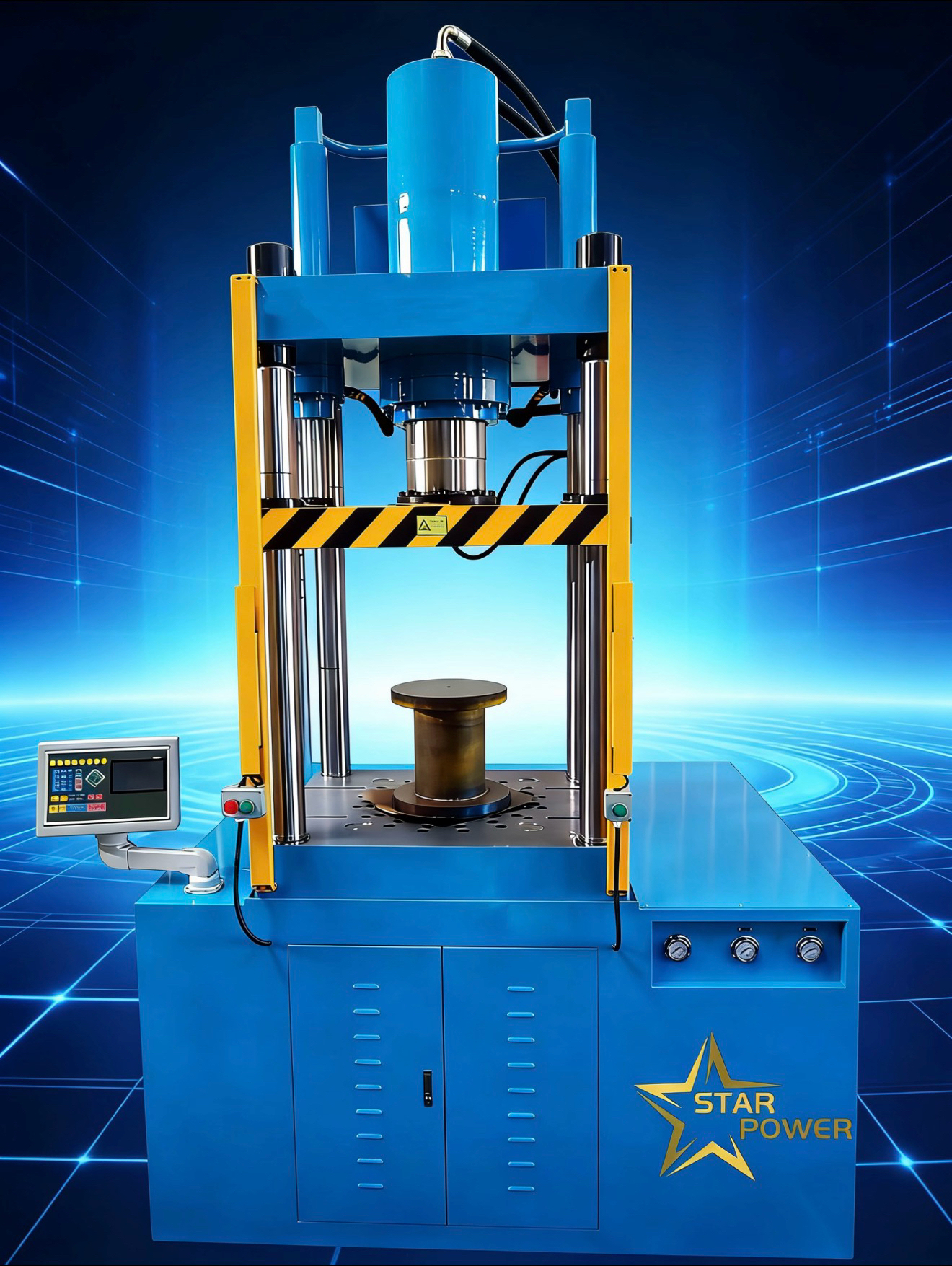

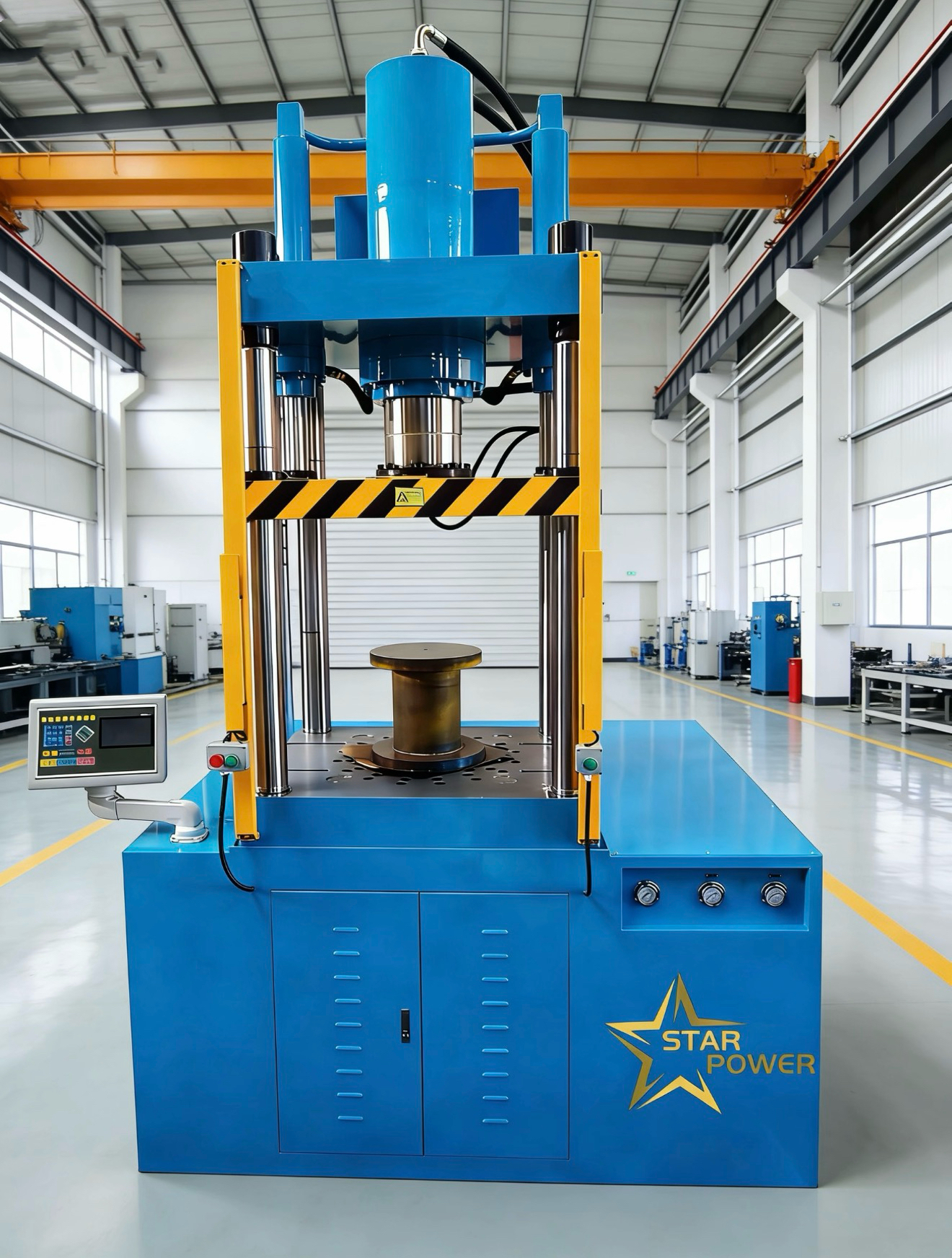

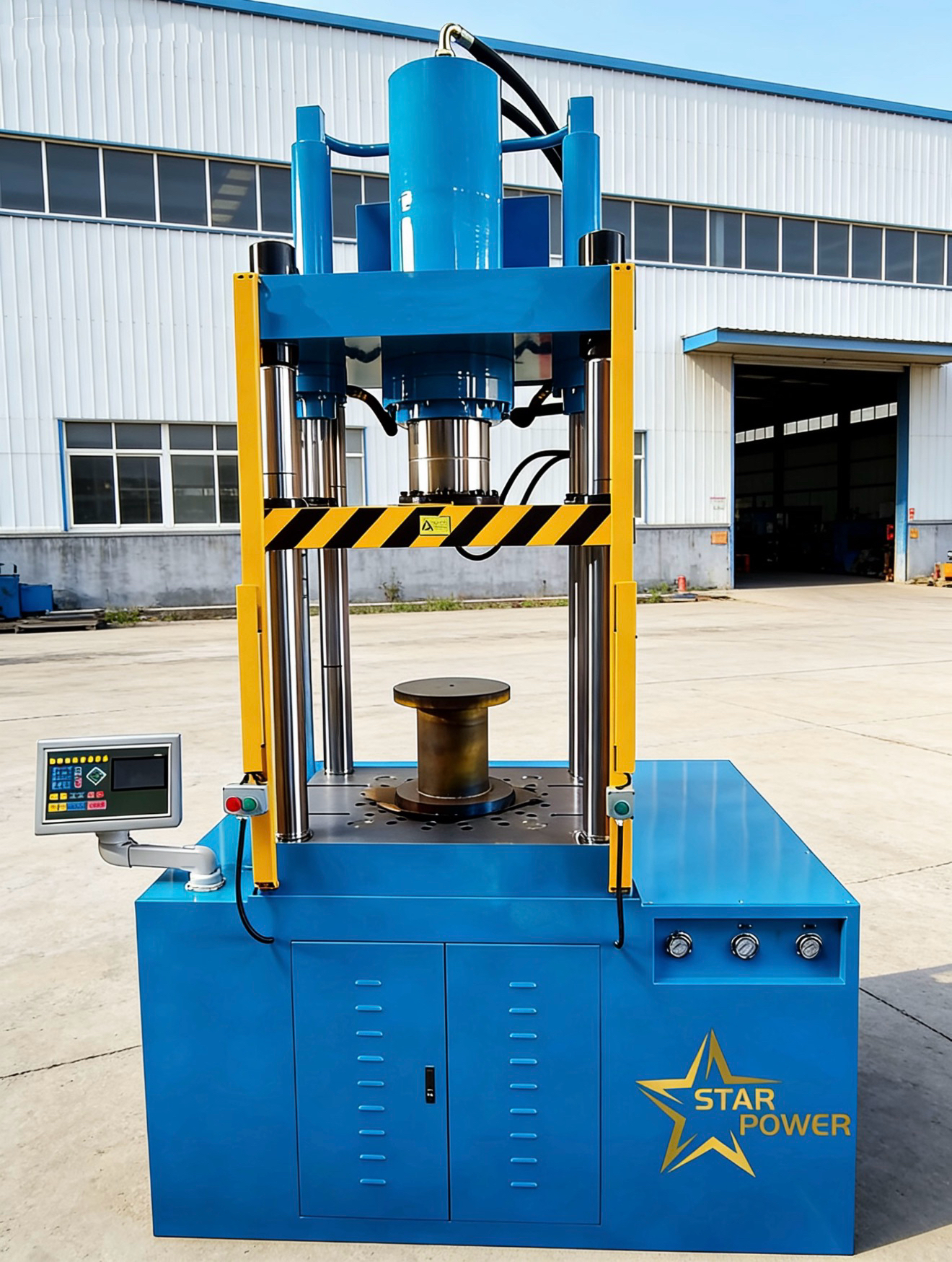

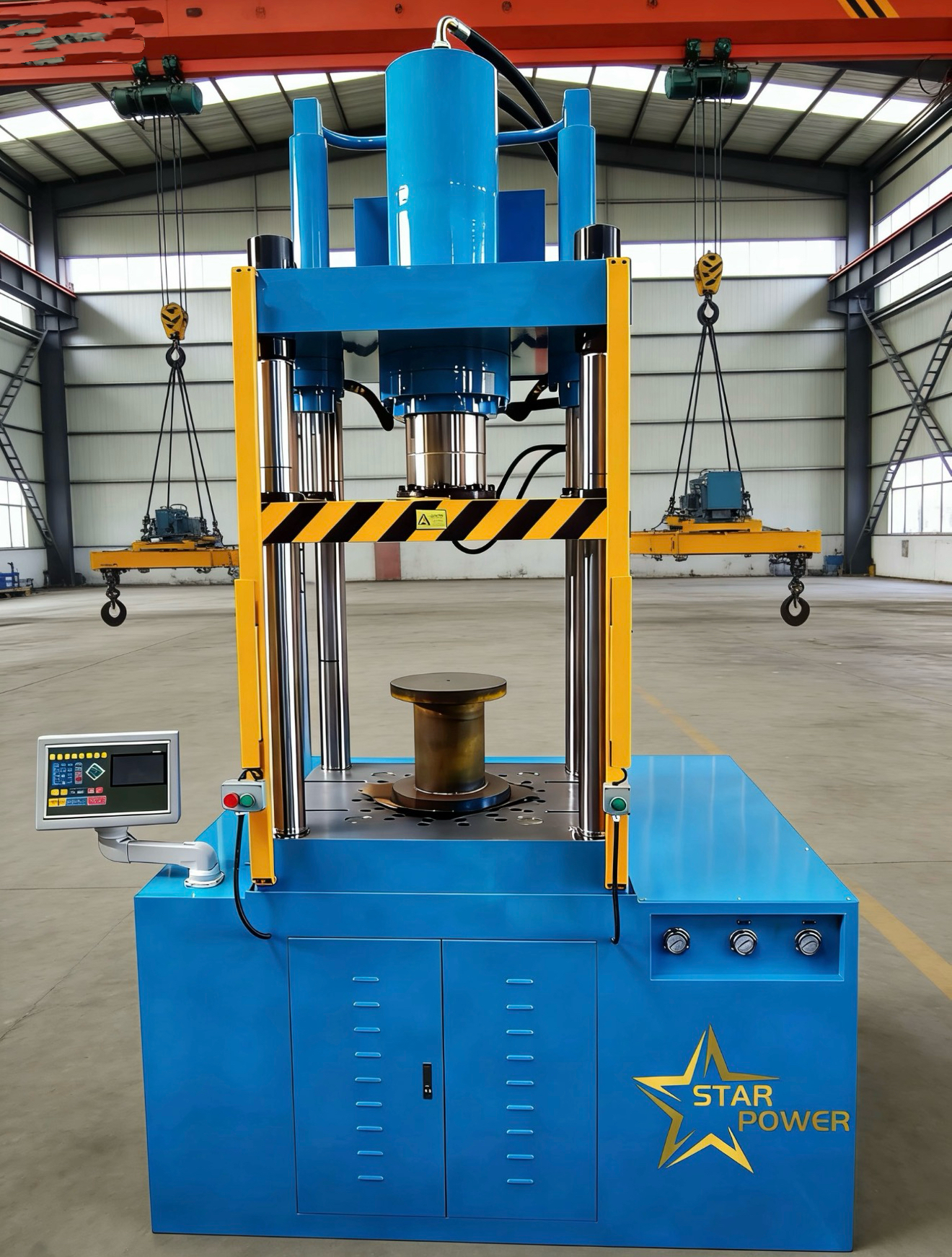

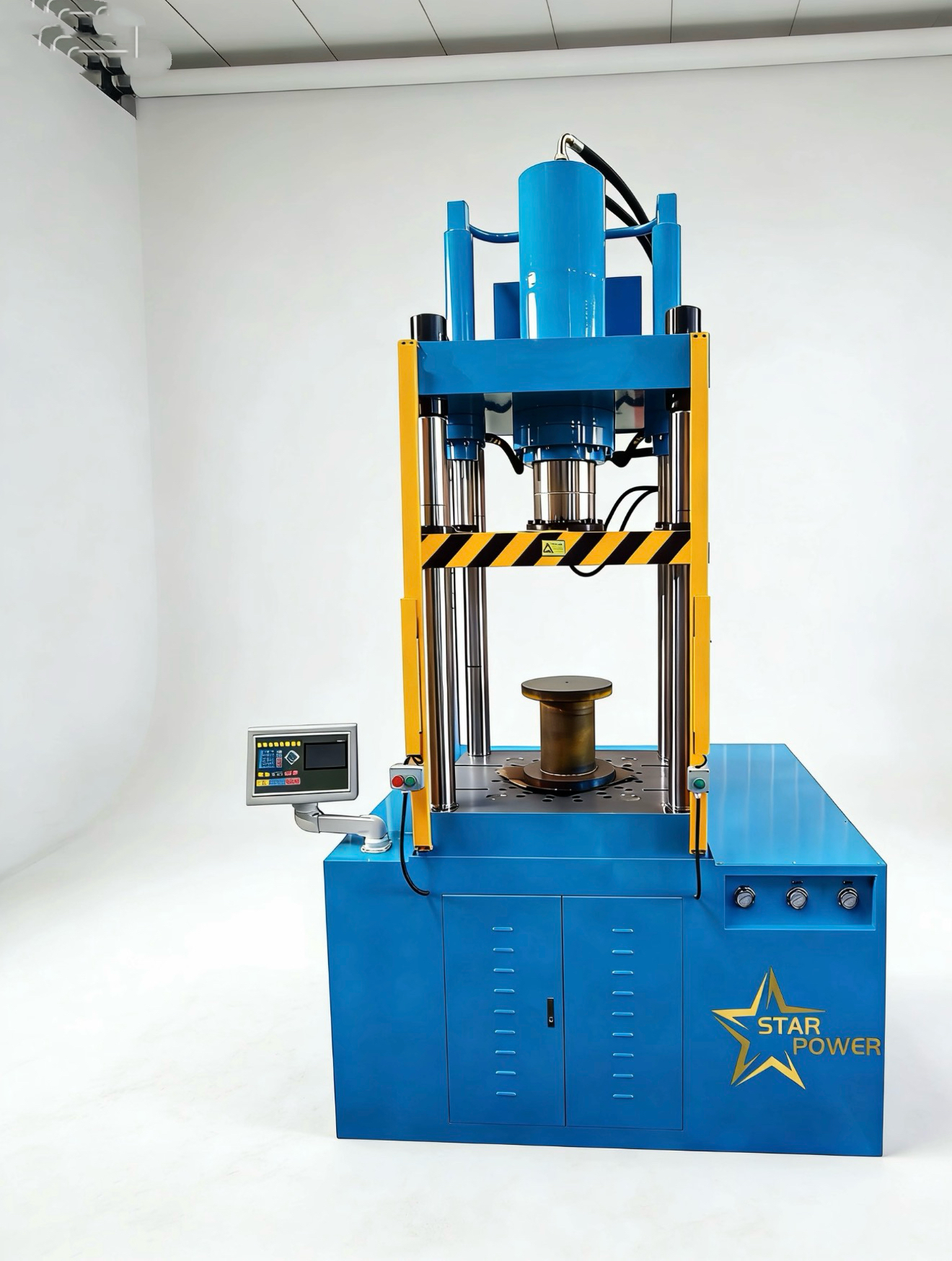

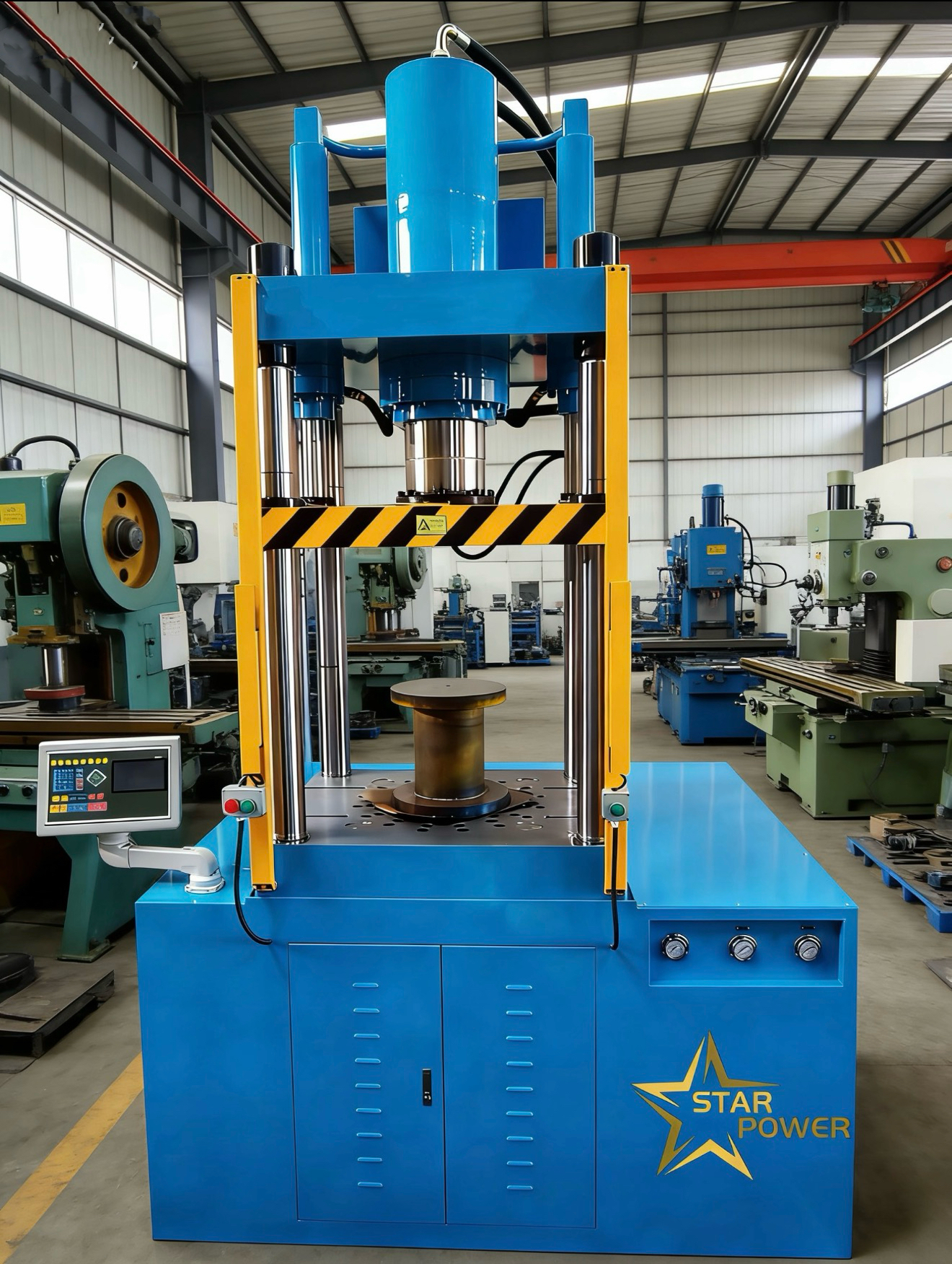

Four-column Hydraulic Deep Drawing Press for Stainless Steel Sink

The Four-column Hydraulic Deep Drawing Press is an upgraded model developed from our original YZ28G series, specially designed for stainless steel and iron metal stretching products. Built on years of professional stretching process experience, it offers diversified functions and strong adaptability, and is recognized as a typical high-performance model in the industry for its precise positioning capability.

Key Technical Advantages

High Efficiency: Faster operating speed to boost production output significantly.
Optimized Hydraulic System: More rational configuration and higher reliability, with core hydraulic components supplied by Yuken Taiwan for stable and durable performance.
Enhanced Ejection Function: Increased ejector force, with manual inching control for ejector advance and return, facilitating smooth demolding of complex workpieces.
Ergonomic Design: Brand-new appearance that complies with man-machine engineering principles, making operation easier and more comfortable.

Applications

This machine is widely used for manufacturing:

Kitchenware: Stainless steel pots, pans, kettles and other cookware
Home appliance parts: Metal shells and panels
Transportation components: Motorcycle fuel tanks
Other precision metal stretching products

Main Technical Parameters (Range)

Item	Parameter Range
Master cylinder nominal force	500–2500 KN
Rated working pressure of hydraulic system	20–25 MPa
Effective worktable area	520×580 – 800×990 mm²
Maximum travel of movable beam	450–600 mm
Motor power	7.5–37 KW
Maximum stroke of return cylinder	200 mm (universal for all models)

Note: Actual parameters are subject to the signed contract; customized models are available to meet specific production requirements.
