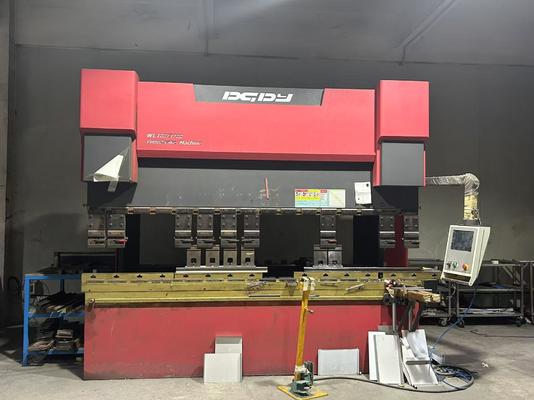

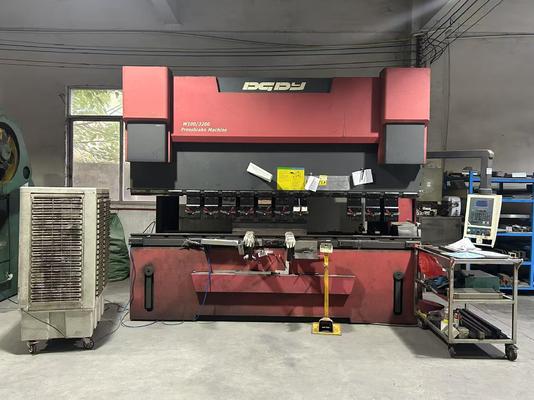

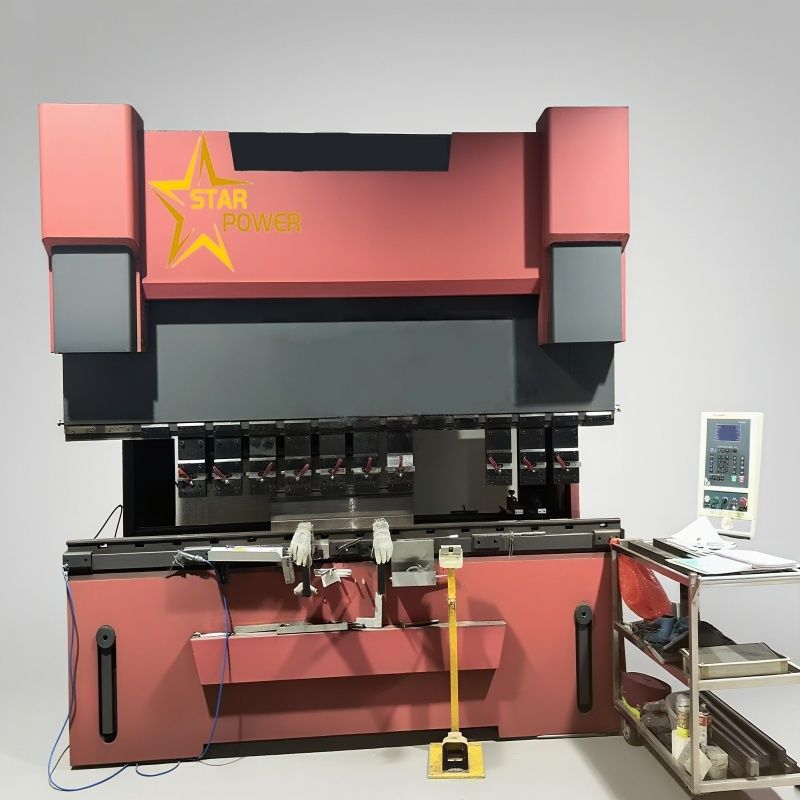

Bending machine For bowl’s bases

Detail Information

Place of Origin:

Guangdong, China

Certification:

CU,ISO

Type:

CNC Bending Machine

Electric Assembly Power:

≈40KW

Average Energy Consumption:

At 4KW / Hour

Nominal Pressure:

1000kN

Slide Stroke:

80mm

Power:

30kw

HS Code:

8462221000

Packaging Details:

metal frame with film

Highlight:

Product Description

CNC Bending Machine for Bowl Bases

Technical Specifications

Key Performance Features

Pressure: 1000kN capacity handles thick, sturdy sheet metal with precision, preventing cracks or wrinkles
Workbench: Large dimensions (2800×1700mm) support stable bending of oversized materials
Opening Height: Accommodates thick materials and specialized molds for complex shapes
Slide Stroke: 80mm range enables deep bending angles and consistent results
Control System: High-precision CNC achieves micron-level accuracy for aerospace-grade requirements
Speed Optimization: Balanced processing rates maintain quality while maximizing efficiency

Production Process Specifications

Process	Equipment	Machine Dimensions	Floor Space	Power
Steel Coil Laser Cutting	Laser Cutter Line	12000×2600×1950mm	17×2.6m	45KW
Sheet Welding	Straight Seam Welding Machine	1400×1100×2000mm	1.4×1.1m	0.4KW
Sheet Grinding	Sheet Grinding Machine	2250×1550×1800mm	2.3×1.6m	3.2KW
Water Hole Punching	Deep Throat Press Machine (40T)	1500×1200×2000mm	1.5×1.2m	4KW
Prebending Punching	Deep Throat Press Machine (63T)	1700×1400×2200mm	1.7×1.4m	4KW
Water Line Pressing	Bending Machine (30T-1600MM)	2600×1400×2000mm	2.6×1.4m	3KW
Sink Base Bending	Bending Machine (63T-2500MM)	2800×1700×2350mm	2.8×1.7m	5.5KW

Total floor space including operational clearance: >65m (Length) × 10m (Width)

Equipment Process Flow

Process	Equipment Type	Specific Machines
Cutting	Laser Cutting	Customizable systems
Forming	Seam/Corner Pressing	Integrated seam and corner pressing machines
Stamping	Press Machines	Water hole punching, Prebending punches
Bending	CNC Bending	Bowl shape forming, Water line pressing
Finishing	Grinding/Polishing	Automatic rough/fine polishing, Edge rounding
