2.0m Pressure Arm Type Bending Center Machine Elevator Sheet Metal Bending Machine

1 set
MOQ
30000
Price
2.0m Pressure Arm Type Bending Center Machine Elevator Sheet Metal Bending Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Operating Voltage: 380V
Cnc Or Not: CNC
Power: 380V/440V
Sheet Thickness: 0.4-4mm
Gross Mass: 15Ton
Color: Silver
Functions: Blending
System: Servo
High Light:

Elevator sheet metal bending center machine

,

pressure arm bending center machine

,

2.0m bending center machine

Basic Infomation
Place of Origin: China
Brand Name: Star power
Certification: CE
Model Number: 2000
Payment & Shipping Terms
Packaging Details: wooden
Delivery Time: 60days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10set/Month
Product Description

2.0m pressure arm type bending center machine Elevator sheet metal bending machine

Foshan is a famous metal manufacturing city with mature and advanced machine technology and reasonable prices,



Key accessories and brands:

name Brand manufacturers explain
numerical control system Joint development of the new Huichuan Support for the 32-axis linkage
servo motor Huichuan The world's largest servo motor service provider
reduction box Dongguan Quanyou Newcard The only speed reducer that can do 6 arc seconds
bearing Japan NACHI High-precision bearing supplier
Silk bar and guide rail Taiwan silver Ensure that the linear feeding material is 0.1mm
pneumatic component Taiwan Yker or Japan SMC Famous Japanese brand
mould independent research and development Fine grinding, slow walking wire, can guarantee 0.02mm
sucker Schmetz (S C H M A L Z) Top suction equipment supplier

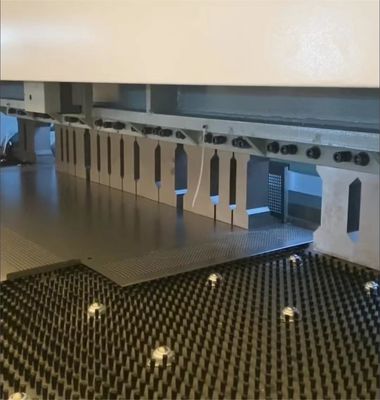

2.0m Pressure Arm Type Bending Center Machine Elevator Sheet Metal Bending Machine 0

Flexible bending center can be widely used in the field of steel cabinet shell (file cabinet, tool cabinet, electrical cabinet, communication cabinet, gas cabinet, water meter cabinet......)

Kitchen utensils (refrigerators, air conditioning, cookers, stainless steel kitchen cabinet, dishwashers, stainless steel wine cabinet......)

Furniture, ventilation equipment, refrigeration equipment, purification equipment, elevators and other related metal forming fields



This equipment can easily realize the circular arc, dead edge, back, closed, positive and negative edges and other complex sheet metal bending requirements.

2.0m Pressure Arm Type Bending Center Machine Elevator Sheet Metal Bending Machine 1



This flexible bending center uses the universal bending mold, only a set of molds can complete all shapes of bending, the user does not need to customize the mold.





Description of the core components:

Box-cage welded bed body:

Using high standard 80mm thickened steel plate integral box cage structure, triangle interconnection design, after accurate finite element force analysis. The welding adopts CO2 full welding process. After the frame is welded, after high temperature annealing treatment and machining, which ensures the anti-distortion deformation of the bed body and the long micro stability for many years, with no risk of cracking. The appearance is ergonomic and beautiful.

2.0m Pressure Arm Type Bending Center Machine Elevator Sheet Metal Bending Machine 2



■ processing technic

1. Eliminate stress treatment: castings and welding support table, multiple tempering, annealing and other heat treatment processes, to ensure long-term use without deformation.

2. Precision machining: Different tooling fixtures are designed for different workpieces, and the high-precision multi-axis machining center is used to refine the workpieces to ensure the consistency of the accuracy before and after the clamping.

3. Strict detection: using high precision micrometer, with high stability marble platform and marble ruler, accurate measurement for the workpiece, and strictly control the processing accuracy of each workpiece.



The system reserves a rich industrial 4.0 interface, which can dock with the robotic arm to realize automatic loading and unloading. With good system security and reliability, with complete self-diagnosis ability, to provide great flexibility for the equipment.





With the self-drive robot arm, it is in the same control system as the bending center. Change the workpiece without secondary programming. The system automatically generates the action program of the robot arm according to the bending command, which has higher efficiency and better coordination.





Sufficient spare parts inventory: provide users with complete parts inventory of parts, any parts, vulnerable parts can be replaced in time, to escort the daily production of users.



Provide 7*24 hours of after-sales online service, maximize the guarantee of users' daily production plan, after-sales problems worry worry.



Lifetime service: establish the unique coded user file of the equipment, track and record the applicable details of the equipment, and provide lifelong maintenance service for cooperative users.



Delivery method Pressure arm
location mode The three sides of the Y axis depend on the ruler
Adapt material Stainless steel, aluminum plate, cold plate
The sheet is the most bushthickness 0.15mm
The plate is the most built Stainless steel 1.2mm, ordinary carbon steel plate 2.0mm, aluminum plate 3.5mm
External dimensions of sheet raw materials Max., 2,000,2,000 mm
  Minimum of 250-400 mm
Plate requirements The surface is smooth, the edge is no burr, and the opening size is accurate
The fastest bending speed 0.3 Seconds / time
Maximum bend throat height 180mm (customizable to 600mm)
rated voltage 380V
Electric assembly power ≈45KW
Average energy consumption At 4KW / hour
noise ≈50dB
outline dimension 520x380x280 cm
gross mass ≈15T
number of axles Standard 12 axis
Automatic computer spell knife and scan code recognition apolegamy



2.0m pressure arm type bending center machine Elevator sheet metal bending machine

Foshan is a famous metal manufacturing city with mature and advanced machine technology and reasonable prices,
