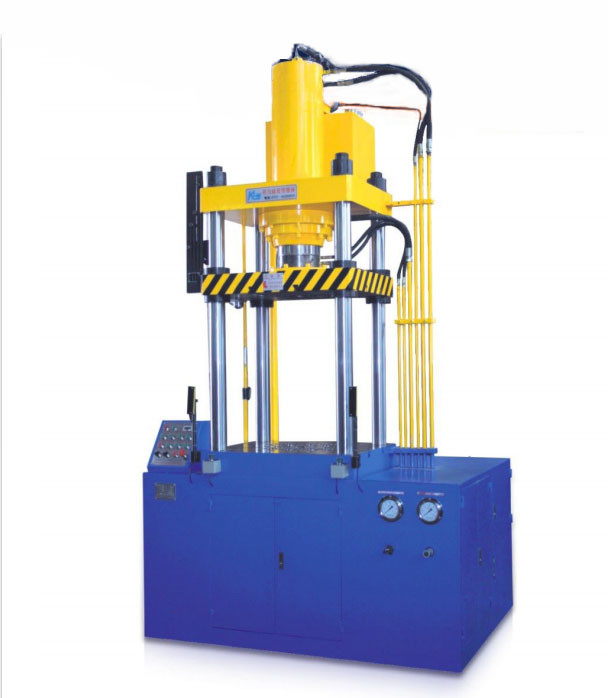

Customized CNC Cookware 400 Ton Hydraulic Press Machine Kitchen Sink Machinery

Brand Name:	Star Power
Model Number:	Y28-150T
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	100 Set/Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CU,ISO

Rating Working Pressure Of The Hydraulic System:

20Mpa

Main Cylinder Force:

1000KN

Return Force:

500KN

Cushion Force:

20KN

Cushion Cylinder Max.pressure:

20MPA

Packaging Details:

metal frame with film

Highlight:

CNC Cookware Hydraulic Press Machine

Kitchen Sink Hydraulic Press Machine

Product Description

Customized CNC Cookware 400ton Hydraulic Press Machine Kitchen Sink Machinery

This equipment is widely used in the pressing process of Jin Li materials, such as sheet drawing, bending, flanging, forming and other stamping process.

Product Description:

It can have enough steel, high precision, low power consumption, the mastercylinder, retractable cylinder, pressure side cylinder can achieve a single jogaction (debugging crossbar use),you can also interlock semi-automatic operation,Variable speed control, with no-load fast down, slow work by the die, drawingquickly return quickly. Pressure side of the tank to increase the speed of control.fast out ofthe return of the material when the pressure back to the adjustable size.

Quick Details:

Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.

Specifications:

Quantity(sets)	1 - 1	>1
Lead time (days)	180	To be negotiated

Applicable areas:

kitchen utensils, stainless steel supplies, sinks, plates, shells and other containers.

Main technical parameters:

Projects	Y28-150T
Nominal force(KN)	1000
Master cylinder liquid working pressure(Mpa)	20
Blanket force(KN)	500
Pressure side cylinder liquid working pressure(Mpa)	20
Return cylinder nominal pressure(KN)	20
Maximum travel of the movable beam(mm)	520
Maximum stroke of the blank holder(mm)	250
Maximum stroke of the return cylinder(mm)	200
Movable beam to work surface distance(mm)	MAX:870 MIN:350
Movable beam lifting speed(mm/s)	No load down: 200 Backhaul:30-16
Motor Power(KW)	18.5
Workbench effective area(mm)	About:650 Before and after:700
Dimensions(approx.)(mm)	About: 1820 Before and after: 1470 High:3375
Total weight(approx.)(T)	5.5
