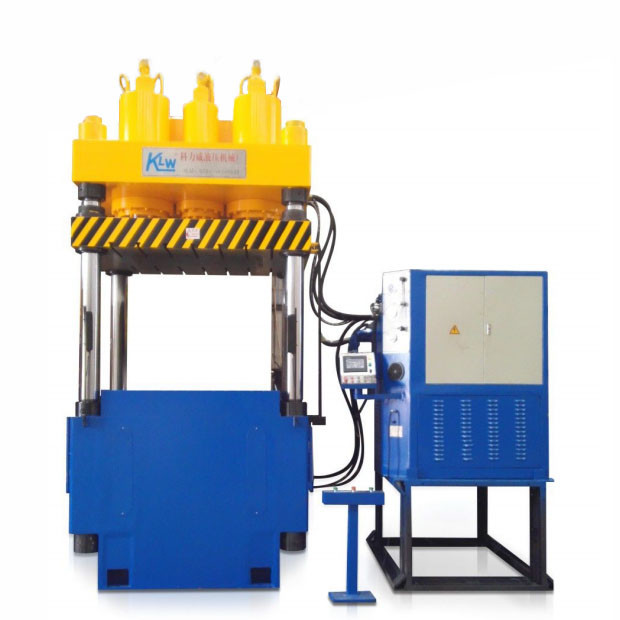

Customized 800 Ton Hydraulic Press Machine for Cookware ISO Certified

1 set
MOQ
Negotiable
Price
Customized 800 Ton Hydraulic Press Machine for Cookware  ISO Certified
Features Gallery Product Description Request A Quote
Features
Specifications
Rating Working Pressure Of The Hydraulic System: 22Mpa
Main Cylinder Force: 5000KN
Return Force: 370KN
Cushion Force: 2830KN
Cushion Cylinder Max.pressure: 25MPA
High Light:

800 Ton Hydraulic Press Machine

,

Hydraulic Press Machine for Cookware

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU,ISO
Model Number: JY28-850T
Payment & Shipping Terms
Packaging Details: metal frame with film
Delivery Time: 1 month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Product Description

ISO Certified For Cookware High Quantity Customized 800ton Hydraulic Press Machine





This machine is based on the Y28 series hydraulic press improved models, isrequired to be required blanket force Large metal sheet tensile and compressiondeveloped models.





Product Description:



1. It's has enough steel, high precision, blank holder force, low power consumption(stretching process does not need Offset the blank holder force).

2. equipped with no-load fast down, slow into the mold, drawing fast return quickly.

3. can achieve a singlejog action (debugging cross-use) can also be interlocked semi-automaticoperation.
4. equipped with photoelectric protection device





Quick Details:

Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.





Specifications:

Quantity(sets) 1 - 1 >1
Lead time (days) 180 To be negotiated



Applicable areas:



kitchen utensils, stainless steel supplies, sinks, plates, shells and other containers.



Main technical parameters:



Projects
Master cylinder nominal blanking force(KN) 5000
Master cylinder liquid working pressure(Mpa) 22
Return force(KN) 370
Lower cylinder upstream tensile force(KN) 2830
Lower cylinder liquid working pressure(Map) 25
Return cylinder nominal pressure(KN) 30
Maximum travel of the movable beam(mm) 620
Under the cylinder maximum stroke(mm) 300
Maximum stroke of the return cylinder(mm) 300
Movable beam to work surface distance(mm) MAX:1100                      MIN:480
Movable beam lifting speed(mm/s) No load down: 170         Backhaul:165
Motor Power(KW) 37
Workbench effective area(mm) About:1250                     Before and after:1250
Dimensions(approx.)(mm) About:1960    Before and after: 1320    High:5000
Total weight(approx.)(T) 38
