Four Column Double Action Hydraulic Press Machine ISO Certified For Cookware
Features Gallery Product Description Request A Quote
Features
Specifications
Rating Working Pressure Of The Hydraulic System: 23Mpa
Main Cylinder Force: 4500KN
Return Force: 500KN
Cushion Force: 2500KN
Cushion Cylinder Max.pressure: 25MPA
High Light:

Double Action Hydraulic Press Machine

,

Four Column Hydraulic Press Machine

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU,ISO
Model Number: JY28-680T
Payment & Shipping Terms
Packaging Details: metal frame with film
Delivery Time: 1 month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Product Description

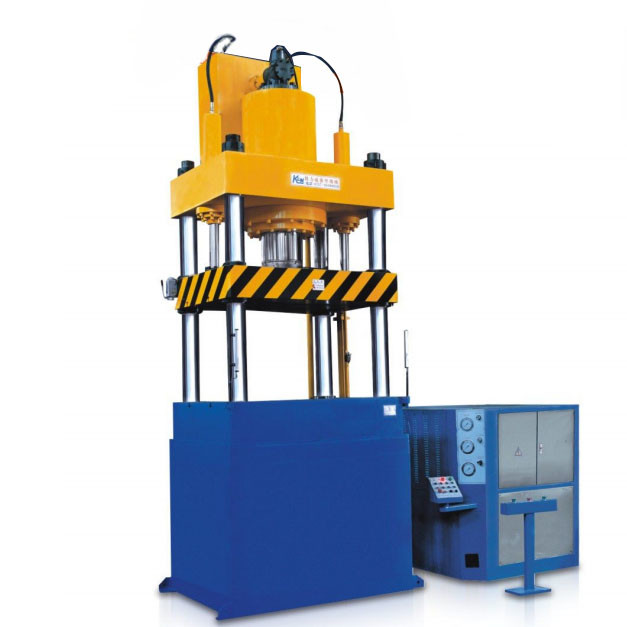

Four-column Double-action Hydraulic Press Machine ISO Certified for Cookware



This machine is based on the Y28 series hydraulic press improved models, is required to be required blanket force Large metal sheet tensile and compression developed models.





Product Description:



1. has enough steel, high precision, blank holder force, low power consumption(stretching process does not need Offset the blank holder force)

2. equipped with no-load fast down, slow into the mold, drawing fast return quickly

3. can achieve a singlejog action (debugging cross-use) can also be interlocked semi-automatic operation.
4. equipped with photoelectric protection device.





Quick Details:

Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.





Specifications:

Quantity(sets) 1 - 1 >1
Lead time (days) 180 To be negotiated



Applicable areas:

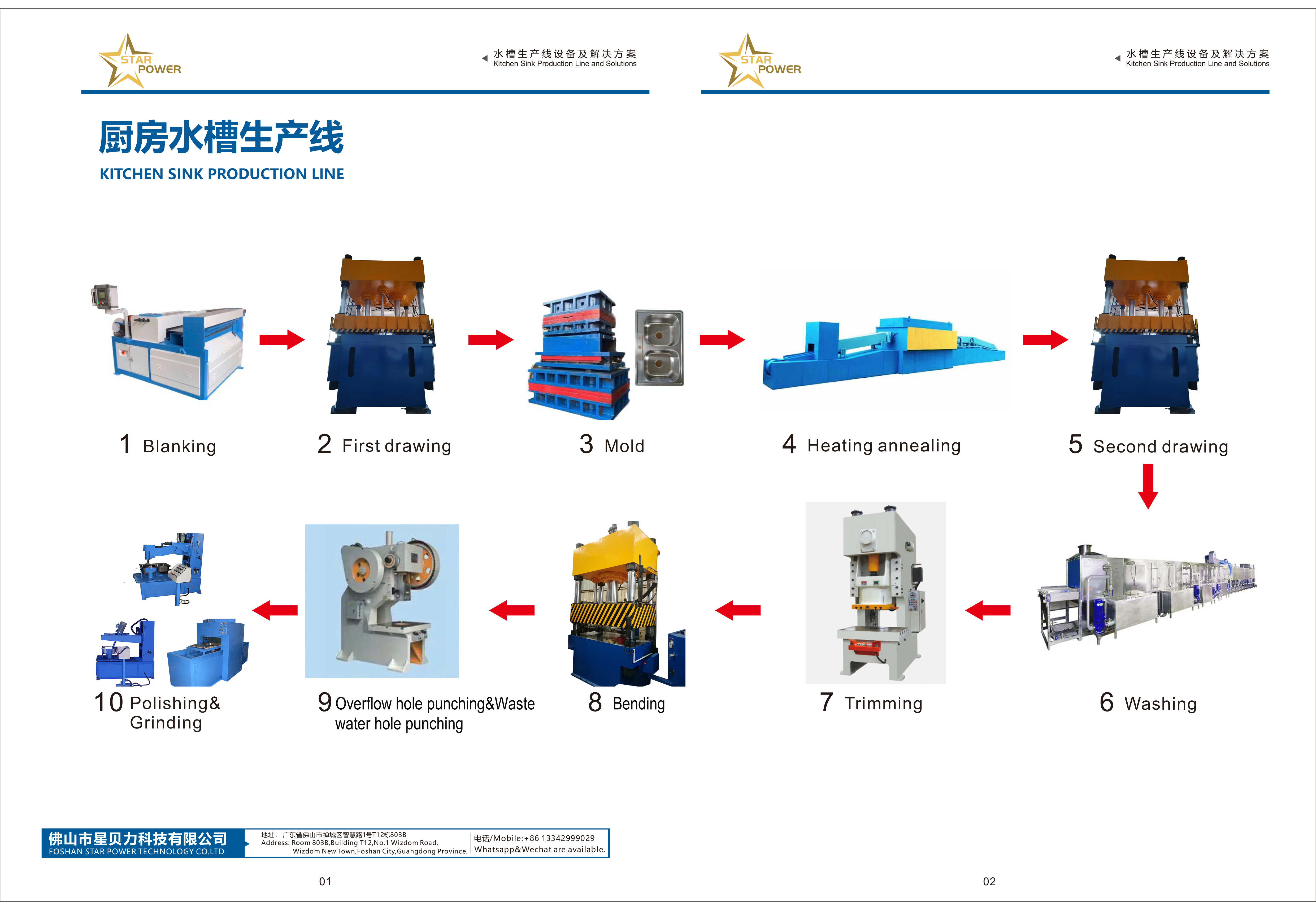

kitchen utensils, stainless steel supplies, sinks, plates, shells and other containers.





Main technical parameters:



Projects
Master cylinder nominal blanking force(KN) 4500
Master cylinder liquid working pressure(Mpa) 23
Return force(KN) 500
Lower cylinder upstream tensile force(KN) 2500
Lower cylinder liquid working pressure(Map) 25
Return cylinder nominal pressure(KN) 30
Maximum travel of the movable beam(mm) 650
Under the cylinder maximum stroke(mm) 400
Maximum stroke of the return cylinder(mm) 250
Movable beam to work surface distance(mm) MAX:1100                      MIN:450
Movable beam lifting speed(mm/s) No load down: 200         Backhaul:180
Motor Power(KW) 37
Workbench effective area(mm) About:1250                     Before and after:1250
Dimensions(approx.)(mm)
Total weight(approx.)(T)
