High efficiency 3-station outside Polishing Machine Vacuum Adsorption Cookware Polishing Machine for cookware

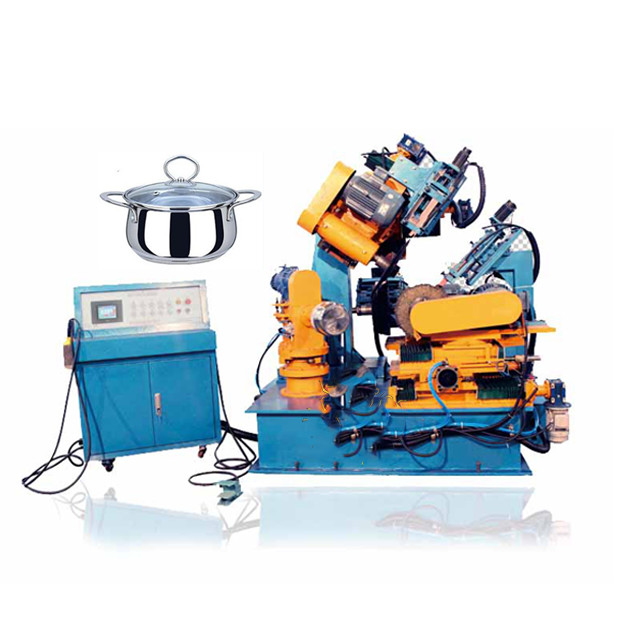

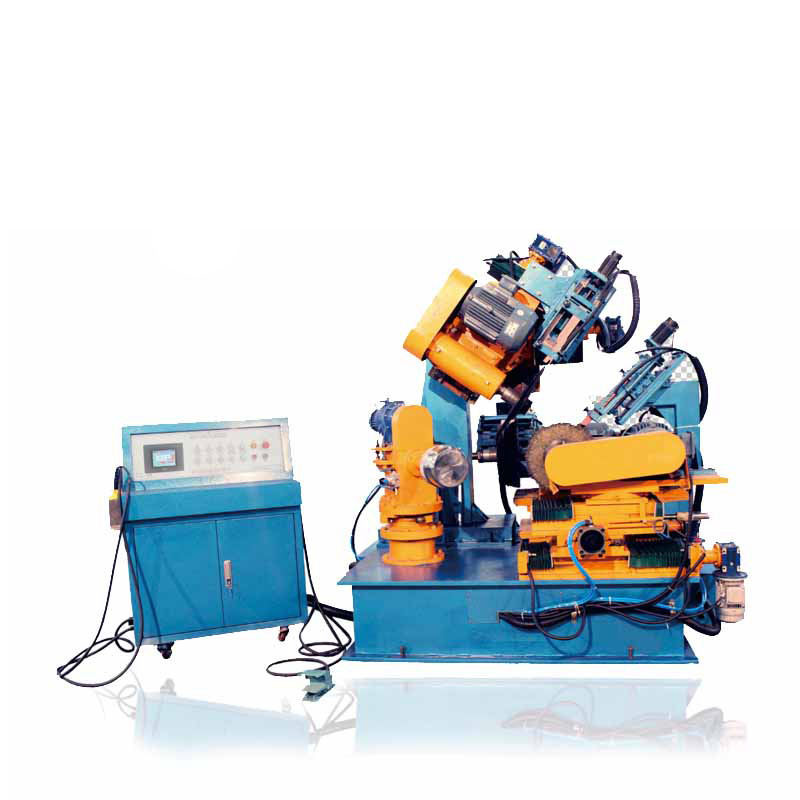

3-Station Auto Outer Polisher
Product Description:
Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.
Quick Details:

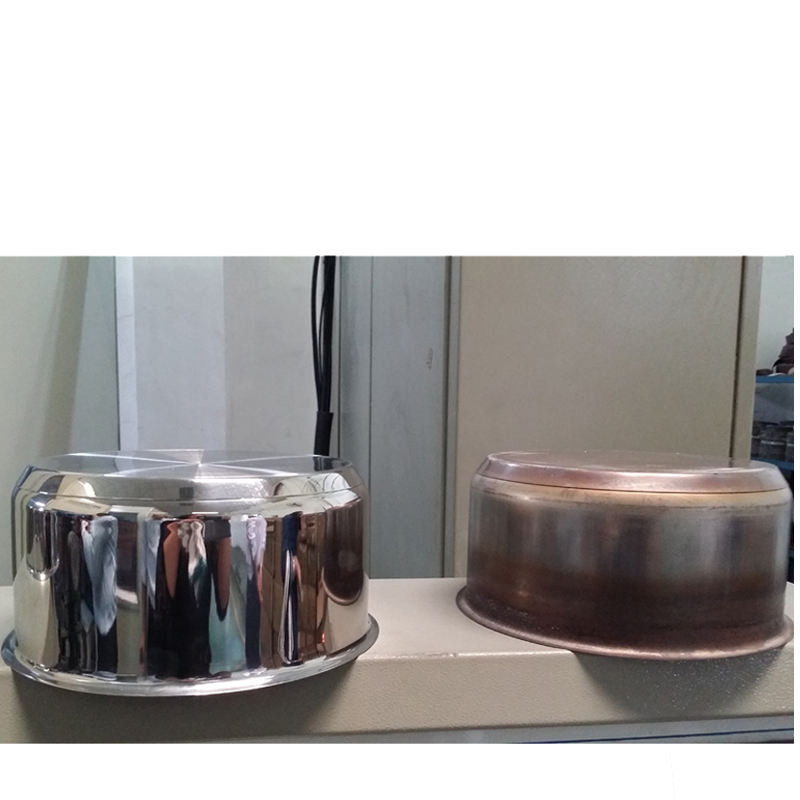

1. Widely used for polishing the outer surface (bottom, side & edge) of metal ware
2. adopts Computer Numerical Control (PLC) techniques and auto compensation device to achieve polishing automatically.
3. Highly efficient and ideal
Specifications:
| Main Technical Parameters∶ | |
| Model | 3MB4140 |
| Function | Outer polish for pan (bottom, side & edge) |
| Size of Workpiece |
≤φ400mm×300mm (Dia. ×H)
|
| Size of Abrasive Wheel | ≤φ460mm (Dia.) |
| Motor Power | Abrasive Wheel Motor: 11kw ×1, 7.5kw×1, 5kw×1 |
| Speed | Abrasive Wheel∶2160r/min |
| Workpiece Holding | Vacuum Adsorption |
| Dimention | 2100mm×2250mm×2450mm (L×W×H) |
| Weight | About 4T |
