Automatic 2YC8-ZD multi hole punch machine for cookware pan and pot

1 set
MOQ
Negotiable
Price
Automatic 2YC8-ZD  multi hole punch machine for cookware pan and pot
Features Gallery Product Description Request A Quote
Features
Specifications
Slide Stroke (mm): 400
Return Force (kN): 2000 KN
Machine Type: Hydraulic Press Machine
System: Servo
Voltage: 380V/220V Optional
Dimension(L*W*H): 2200*2400*4200mm
Weight (T): 3.5 T
Motor Power (kw): 30 Kw
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU,ISO
Model Number: QXJY325-300
Payment & Shipping Terms
Packaging Details: metal frame with film
Delivery Time: 1 month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Product Description

Automatic 2YC8-ZD multi hole punch machine for cookware pan and pot



Product Description:



Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.



Quick Details:



1. Production capacity: 1s/stroke



2. Punch 1 hole, 2 holes, 3 holes, 4 holes, 6 holes, 8 holes



3. Punch exact round holes without burr, no water leakage risk on final cookware



4. Save moulds cost



5. Easy operation



Specifications:



Main Technical Parameters
Size of workpiece Φ(140~300)mm x (40~300)mm(Dia. x H)
T≤ 1.2mm(SS), T≤ 4mm(AI)
Hole size Dia: Φ02-Φ8.2mm
Holes distance: No limited
Hole center line and surface angle: -10° ~ +20°
Mouth depth 70mm
Motor power Hydraulic pump motor: 3kw, 16Mpa
Cooling blower: 35w
Servo motor: 1.5kw x1, 0.75kw x5
Punch hydraulic cylinder Dia.: Φ50mm, travel limit: 40mm, pressure: 16Mpa
Dimension 1350mm x 1237m x 1010mm (L x W x H)
Weight About 1T



Advantages:

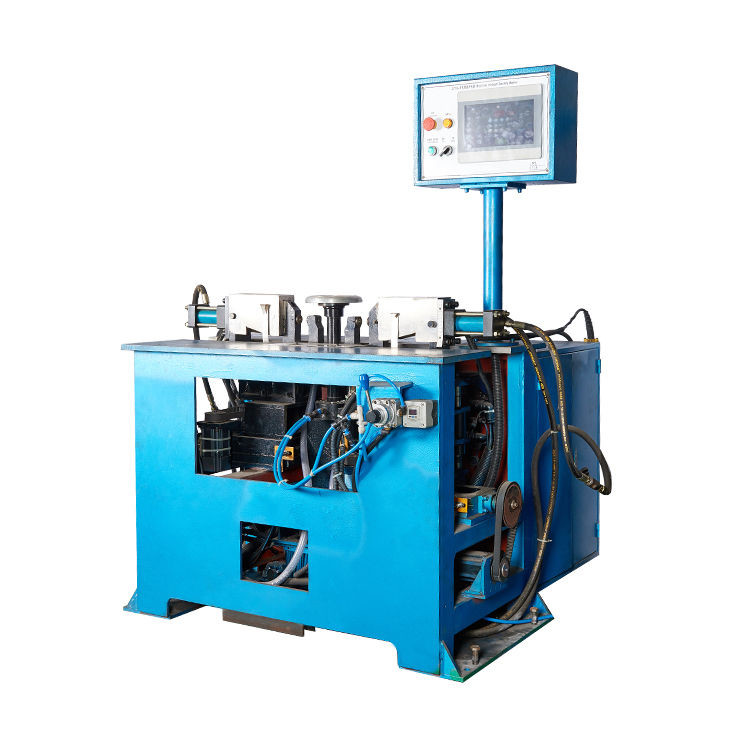

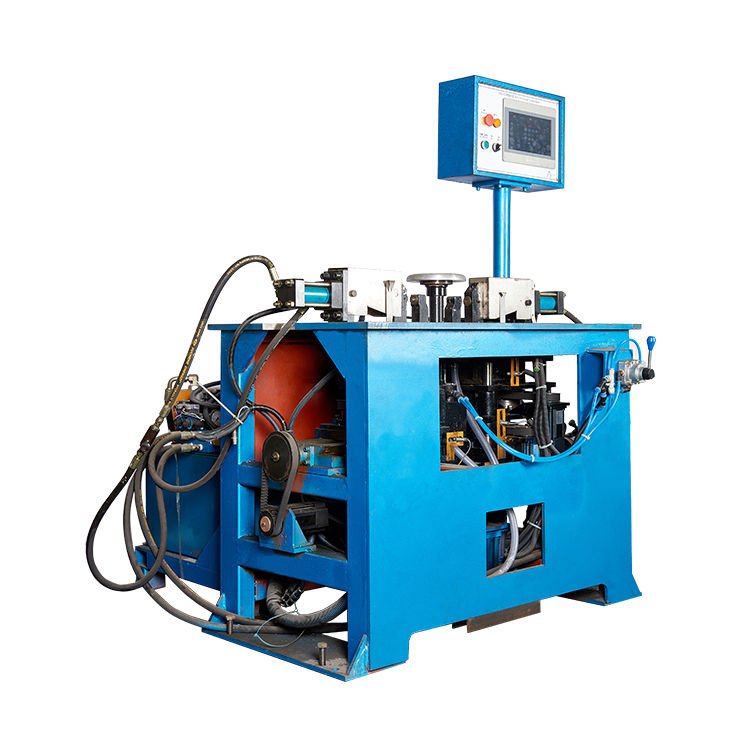

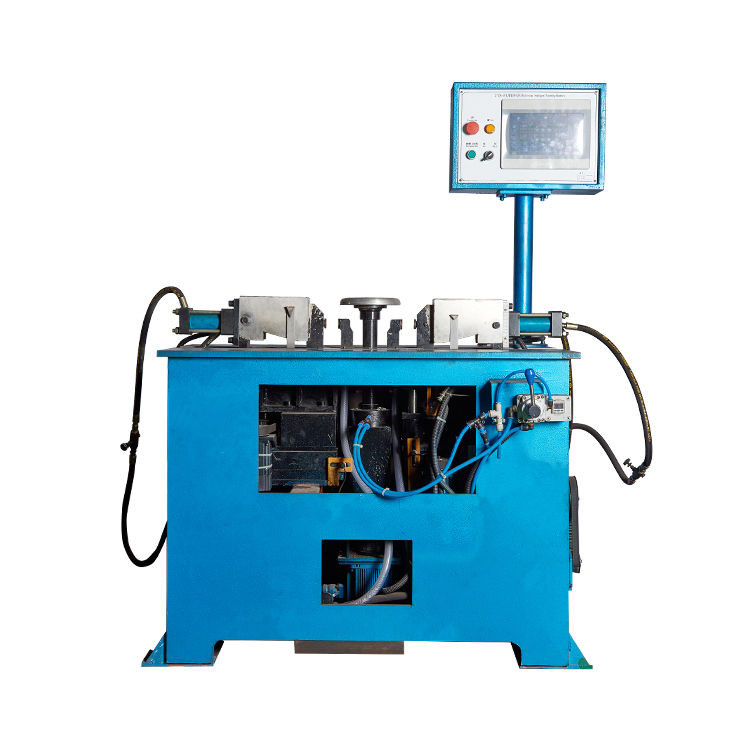

Automatic 2YC8-ZD  multi hole punch machine for cookware pan and pot 0Automatic 2YC8-ZD  multi hole punch machine for cookware pan and pot 1Automatic 2YC8-ZD  multi hole punch machine for cookware pan and pot 2Automatic 2YC8-ZD  multi hole punch machine for cookware pan and pot 3Automatic 2YC8-ZD  multi hole punch machine for cookware pan and pot 4
