Hydraulic Four Hole Punching Machine round hole puncher for pot set cook ware metal ware

1 set
MOQ
Negotiable
Price
Hydraulic Four Hole Punching Machine round hole puncher for pot set cook ware metal ware
Features Gallery Product Description Request A Quote
Features
Specifications
Function: Hole Punch For Metal Ware
Size Of Workpiece: ≤φ(140~300)mm×(40~300)mm (Dia.×H)
Thickness: ≤1.2mm
Hole Size: Dia.: φ2~φ8.2mm
Mouth Depth: 60mm
Motor (for The) Power: Hydraulic Pump Motor: 3kw×1, 16Mpa
Machine Size (Not Including The Conveyor Belt): 1200mm×720mm×1275mm (L×W×H)
Machine Weight: About 1T
High Light:

Hydraulic Four Hole Punching Machine

,

60mm Four Hole Punching Machine

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU, ISO
Model Number: Y4C
Payment & Shipping Terms
Packaging Details: Seaworthy packing
Delivery Time: 30-50 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Product Description

Hydraulic Four Hole Punching Machine round hole puncher for pot set cook ware

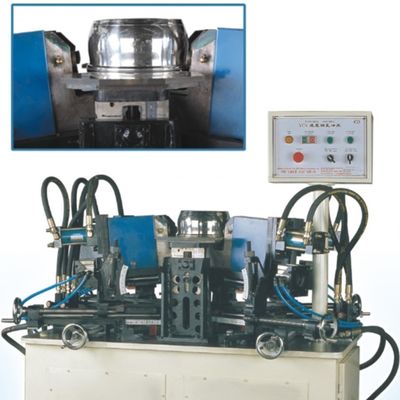

Y4C Hydraulic Four Hole Punching Machine



Product Description:



Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.



Quick Details:



1. For making 4 round holes with  φ2~φ8mm size on the steal, aluminum, copper and stainless steel material.

2. Four holes distance and angle is adjustable by changing the mould.

3. Compared to traditional method, this machine can greatly reduce the cost and increase the effiency.



Specifications:



Main Technical Parameters∶
Model Y4C
Function Hole punch for metal ware
Size of Workpiece

≤φ(140~300)mm×200mm (Dia.×H)

Thickness ≤1.2mm
Hole Size

Dia.: φ2~φ8.2mm

Holes distance: 32~150mm

Angle of hole: 0~35°

Hole center line and surface angle: -10°~+20°

Mouth depth 60mm
Motor (for the) Power

Hydraulic Pump Motor: 3kw×1, 16Mpa

Cooling blower: 35kw×2

Cooling Pump: 375w×1

Puch Hydraulic Cylinder

Dia.: φ50mm, Travel limit: 40mm, Pressure: 16Mpa

Dimention

1200mm×720mm×1275mm (L×W×H)

Machine Weight About 1T





More details regarding the company:

Hydraulic Four Hole Punching Machine round hole puncher for pot set cook ware metal ware 0

Hydraulic Four Hole Punching Machine round hole puncher for pot set cook ware metal ware 1
Hydraulic Four Hole Punching Machine round hole puncher for pot set cook ware metal ware 2



Production Line:

Hydraulic Four Hole Punching Machine round hole puncher for pot set cook ware metal ware 3

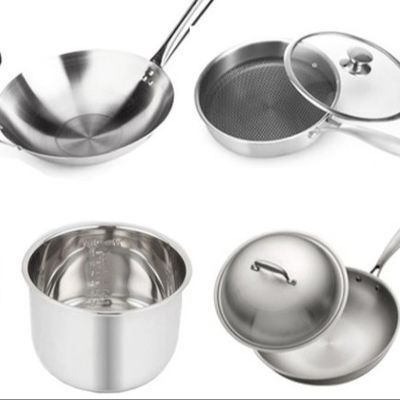

Products that manufactured by our machines:

Hydraulic Four Hole Punching Machine round hole puncher for pot set cook ware metal ware 4Hydraulic Four Hole Punching Machine round hole puncher for pot set cook ware metal ware 5

Certifications:

Hydraulic Four Hole Punching Machine round hole puncher for pot set cook ware metal ware 6



Packing & Delivery:

Hydraulic Four Hole Punching Machine round hole puncher for pot set cook ware metal ware 7

Hydraulic Four Hole Punching Machine round hole puncher for pot set cook ware metal ware 8
