Hot sale Manual Hydraulic Lid Hole Punching Machine round hole punching machine for Oven Lid

1 set
MOQ
Negotiable
Price
Hot sale Manual Hydraulic Lid Hole Punching Machine round hole punching machine for Oven Lid
Features Gallery Product Description Request A Quote
Features
Specifications
Function: Hole Punch For Metal Ware
Size Of Workpiece: ≤φ(140~400)mm×200mm (Dia.×H)
Thickness: ≤2mm
Hole Size: Dia.: φ2~φ8.2mm
Mouth Depth: 210mm
Motor (for The) Power: Hydraulic Pump Motor: 3kw×1, 16Mpa
Machine Size (Not Including The Conveyor Belt): 860mm×1145mm×1450mm (L×W×H)
Machine Weight: About 0.53T
High Light:

Hydraulic Lid Hole Punching Machine

,

20KN Hole Punching Machine

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU, ISO
Model Number: YC8
Payment & Shipping Terms
Packaging Details: Seaworthy packing
Delivery Time: 30-50 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Product Description

Hot sale Manual Hydraulic Lid Hole Punching Machine round hole punching machine for Oven Lid

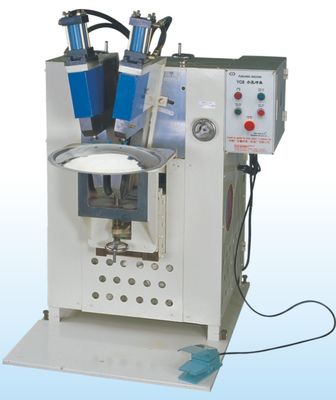

YC8 Hydraulic Lid Hole Punching Machine



Product Description:



Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.



Quick Details:



1. For making 2 round holes with φ2~φ8mm size on the steal ,alminum, copper and stainless material.

2. Two holes distance and angle is adjustable by chaning the mould.

3. Compare to traditional method, this machine can greatly reduce the cost and increase the efficiency.



Specifications:



Main Technical Parameters∶
Model YC8
Function Hole punch for metal ware
Size of Workpiece

≤φ(140~300)mm×200mm (Dia.×H)

Thickness ≤2mm
Hole Size

Dia.: φ2~φ8.2mm

Holes distance: 46~150mm

Angle of hole: 0~35°



Mouth depth 210mm
Motor (for the) Power

Hydraulic Pump Motor: 3kw×1, 16Mpa

Cooling blower: 35kw×2

Cooling Pump: 375w×1

Puch Hydraulic Cylinder

Dia.: φ50mm, Travel limit: 40mm, Pressure: 16Mpa

Max Blanking Pressure 20KN
Dimention

860mm×1145mm×1450mm (L×W×H)

Machine Weight About 0.53T





More details regarding the company:

Hot sale Manual Hydraulic Lid Hole Punching Machine round hole punching machine for Oven Lid 0

Hot sale Manual Hydraulic Lid Hole Punching Machine round hole punching machine for Oven Lid 1
Hot sale Manual Hydraulic Lid Hole Punching Machine round hole punching machine for Oven Lid 2



Production Line:

Hot sale Manual Hydraulic Lid Hole Punching Machine round hole punching machine for Oven Lid 3

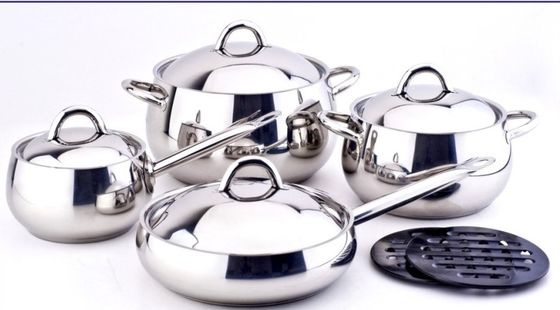

Products that manufactured by our machines:
