cost-effective multi Holes Intelligent Punching Machine for metel ware kitchen ware

Name: cost-effective multi Holes Intelligent Punching Machine for metel ware kitchen ware
Brand: Foshan Star Power Technology Co.Ltd
SKU: 2YC8
Price: 50,002.00 USD
Availability: InStock

Brand Name:	Star Power
Model Number:	2YC8
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C, T/T
Supply Ability:	20 Set/Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CU, ISO

Function:

Hole Punch For Metal Ware

Size Of Workpiece:

Dia.: φ160~φ400mm

Max. Punching Thickness:

Stainless Steel: ≤1.2mm

Max. Number Of Punching Holes:

Left:10, Right: 10

Hole Size:

Dia.: φ4.2~φ8.2mm

Mouth Depth:

70mm

Machine Power:

Total Power: About 9.8KW

Machine Size (Not Including The Conveyor Belt):

1350mm×1350mm×1690mm (L×W×H)

Machine Weight:

About 1T

Packaging Details:

Seaworthy packing

Highlight:

Multi Holes Intelligent Punching Machine

70mm Mouth Depth Intelligent Punching Machine

Product Description

cost-effective multi Holes Intelligent Punching Machine for metel ware kitchen ware

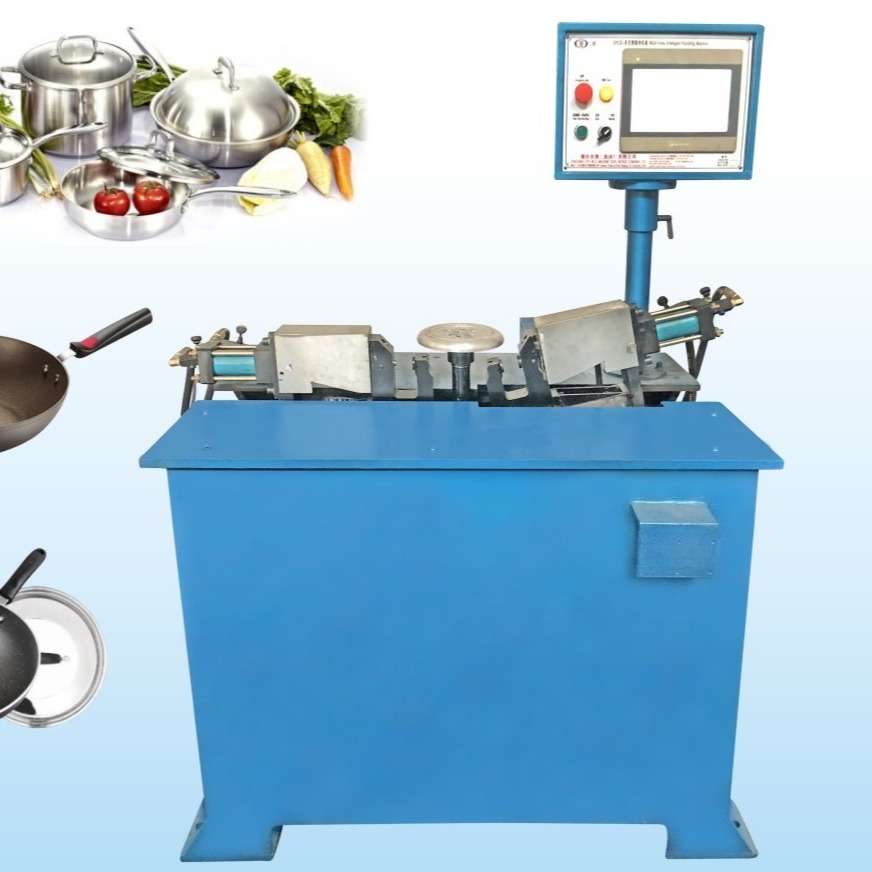

2YC8 Multi-holes Intelligent Punching Machine

Product Description:

Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.

Quick Details:

1. Controlled with the servo numerical control system.

2. Characterized by simple operation.

3. Can store the product parameters for more than 200 types of the workpieces for purpose of being used in subsequent production and for the riveting hole in any diameter.

4. Characterized by simple commissioning and easy use after reasonable innovation in structure and function.

5. When replacing the products with different sizes, it is only required to replace the concave die on the U-shaped anvil block and recall the product information sored on the touchscreen, so that the machine can be automatically adjusted to the ready status to start the production,.

6. Compared with conventional small-hole punching machiner, it can significantly reduce the cost and improve the work efficiency.

7. It has very high value for use in the manufacturing of hardware and stainless steel ware.

Specifications:

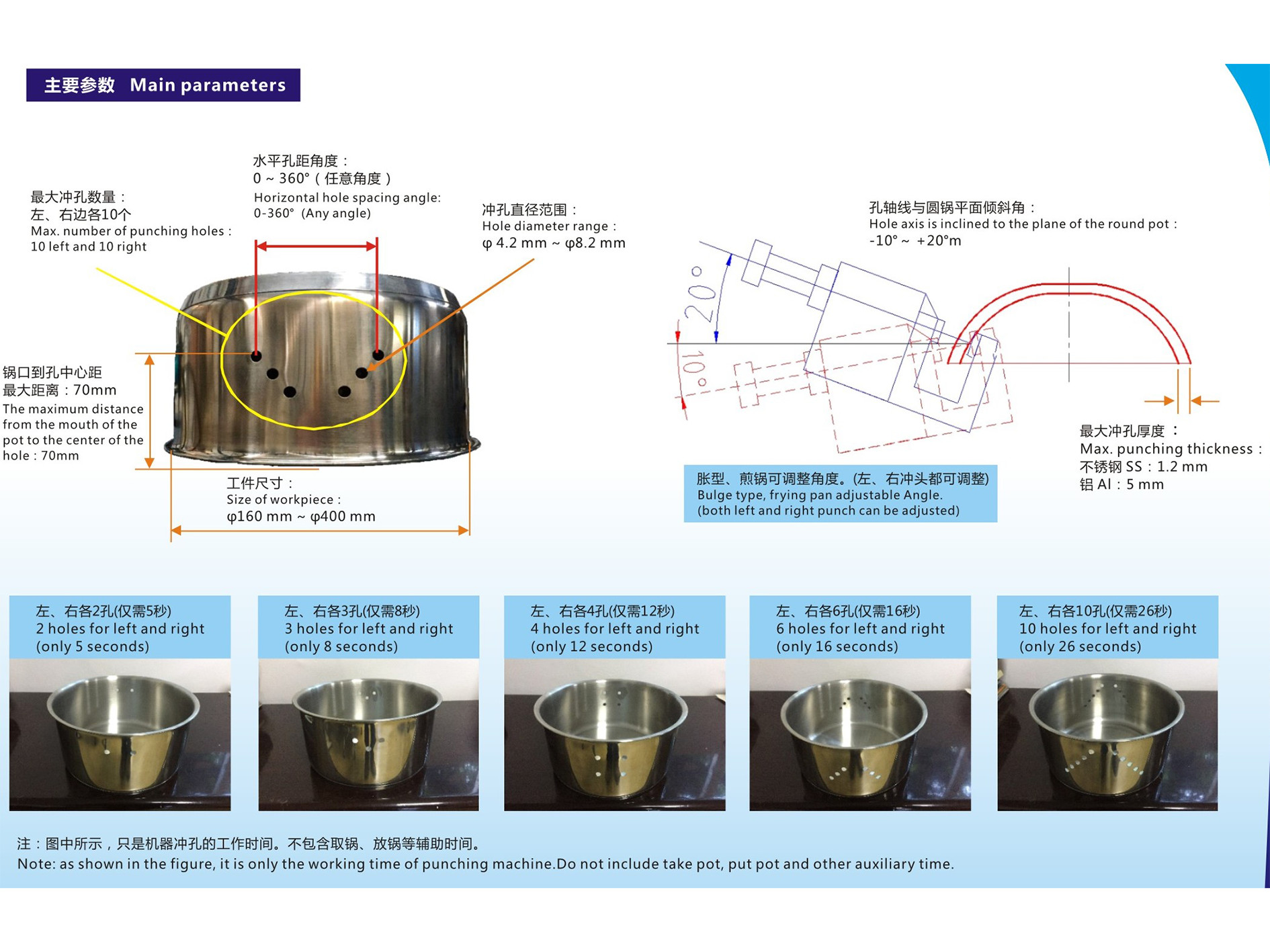

Main Technical Parameters∶
Model	2YC8
Function	Hole punch for metal ware
Size of Workpiece	Dia.: φ160~φ400mm
Max. punching thickness	Stainless Steel: ≤1.2mm, Al: ≤5mm
Hole Size	Dia.: φ4.2~φ8.2mm Left and right hole spacing angle: 0~360° Holeaxis is inclined to the plane of the round pot: -10°~+20°
Max. number of punching holes	Left: 10, Right, 10
Mouth Depth	70mm (The maximum distance from the mouth of the pot to the center of the hole)
Spindle lifting height	0~100mm
Power Supply	Three-phase five line, 380V±10% 50 Hz (Can be customized according to customer requirements)
Machine Power	Total Power: About 9.8KW
Air Supply	Pressure: 0.6~0.8Mpa
Hydraulic System	Hole Punch Pressure: 5~10Mpa
Workpiece Holding	Vacuum adsorption
Dimention	1350mm×1350mm×1690mm (L×W×H)
Machine Weight	About 1T

More details regarding the company:

cost-effective multi Holes Intelligent Punching Machine for metel ware kitchen ware 0

Production Line:

cost-effective multi Holes Intelligent Punching Machine for metel ware kitchen ware 3

Products that manufactured by our machines:

cost-effective multi Holes Intelligent Punching Machine for metel ware kitchen ware 4

Certifications:

cost-effective multi Holes Intelligent Punching Machine for metel ware kitchen ware 6

Packing & Delivery:

cost-effective multi Holes Intelligent Punching Machine for metel ware kitchen ware 7
